User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141
• other parameters in this block -
Slot 4, 5, 6
, set as
disabled
, because we want
to show only three logical channels,
– all the other parameters should be on default settings,

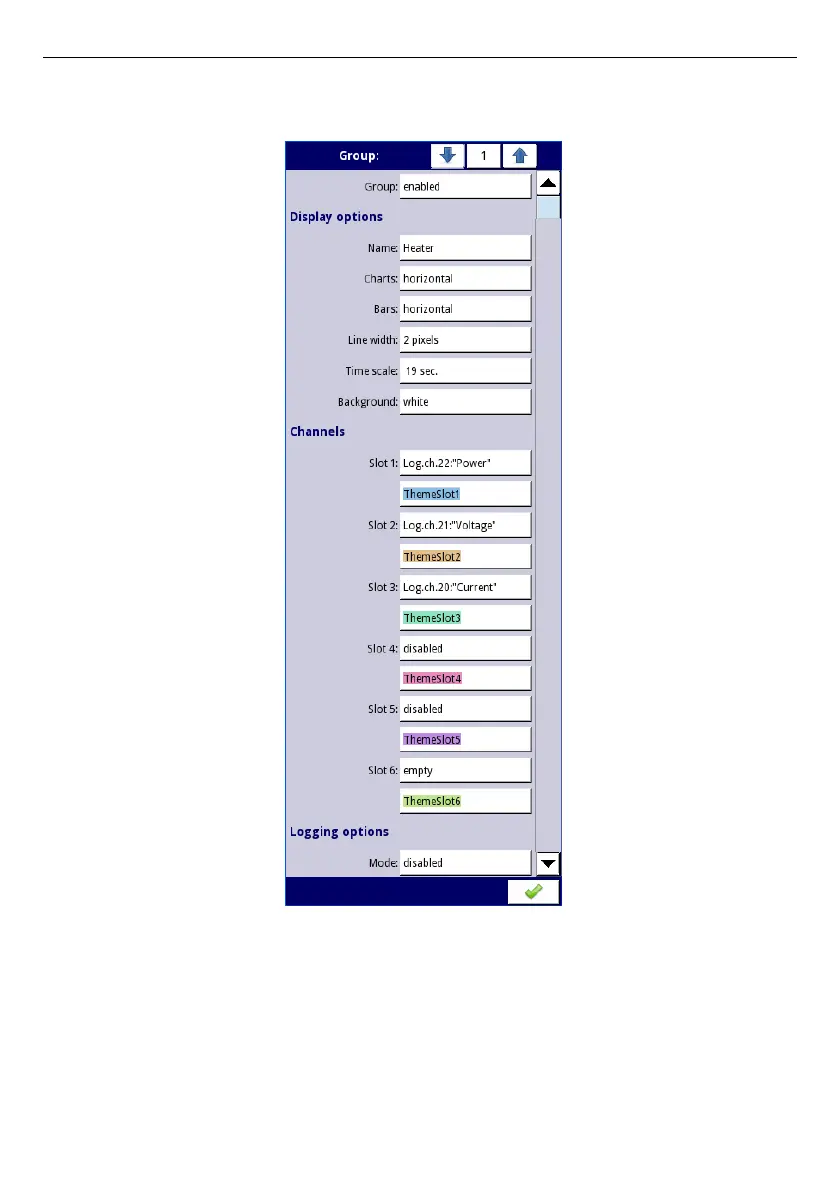

Fig. 7.66.Example of Group configuration
The last step is to define the
Initial view
(see
Fig. 7.67
) displayed on the LCD screen
when the device starts. The
Initial view
has to display a defined group of logical channels:
power, voltage and current in-needle mode. To do this:
– enter the
General settings
menu,
–
Basic
block parameters left unchanged unless the indicated date and time were set
incorrectly and should be improved,
–
Backlight
parameter set as a value corresponding to the user, for example, the
value of
80%
,
126
