high state the low state will occur after this time) - see
Fig. 7.91
,
–
Minimum OFF time
- the minimum duration of a low state (if the output switches to
low state the high state will occur after this time) - see
Fig. 7.91
,

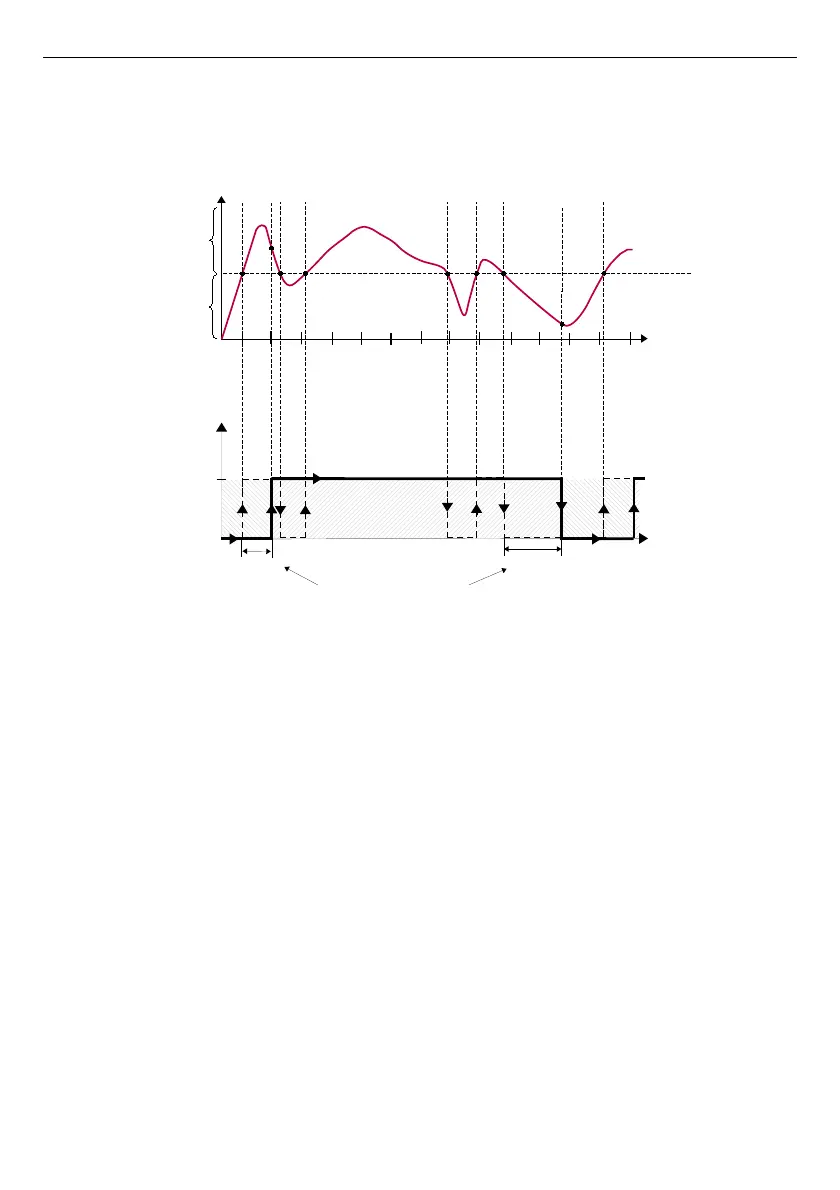

Fig. 7.90. Principle of relay output operation for sample timing settings:
On delay=1 sec., OFF delay=2 sec.
168
Zone B
∆t=1s
∆t=2s
1 2 3 4 5 6 7 8 9 10 11 12 13 14
Input
value
Zone A
Zone B
Level
Time [s]
Output
value
1
0
ON delay
Time [s]
Zone A
OFF delay
