Simex MultiCon CMC-99/141 User Manual

User Manual For - CONTROLLER/DATA RECORDER MultiCon CMC-99/141

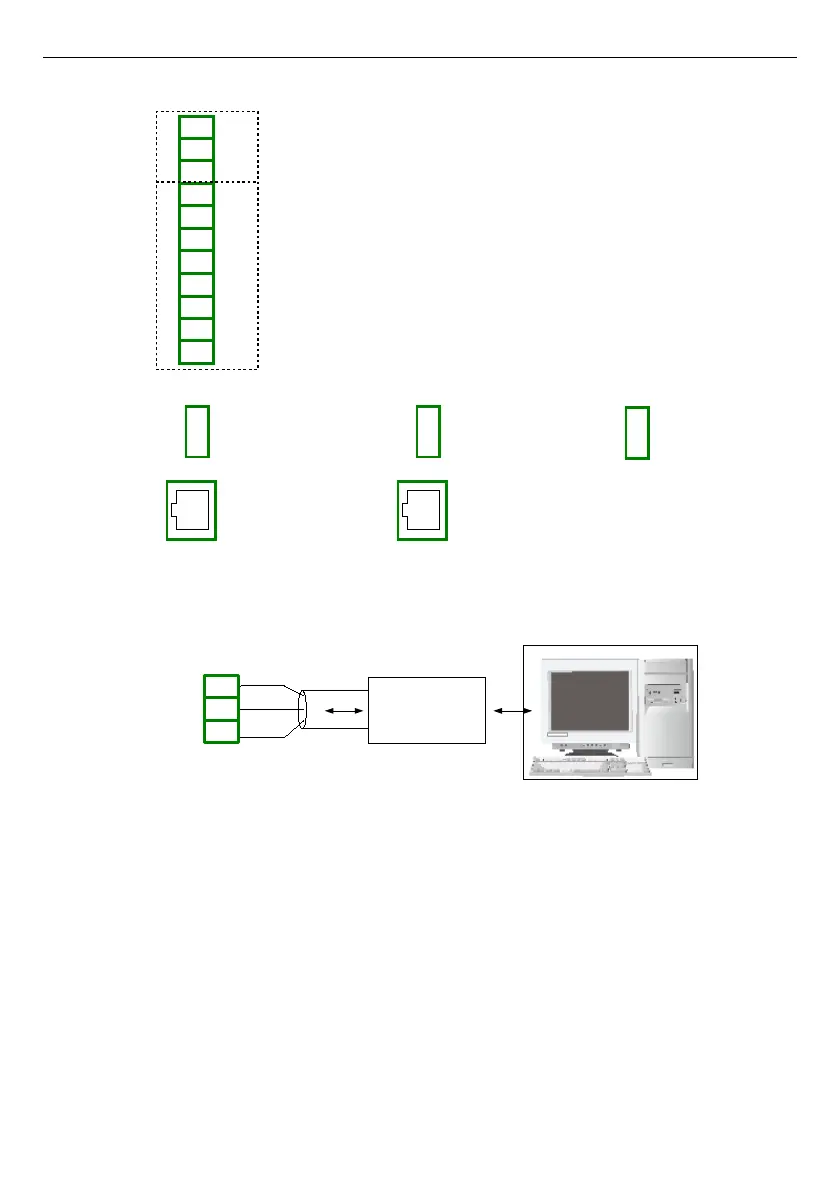

Fig. 4.22. Communication Modules
Fig. 4.23. Connection of RS-485 transmission signals
The
MultiCon CMC-99/141
device supports the following converters:
– USB / RS-485 converter
(SRS-U4)
– RS-232 / RS-485 converter
(SRS-2/4-Z45)
30
RS232/RS485
or USB/RS485
interface
8
6
7
RS-485
GND
A+
B-
RJ-45
ETH
USB
host
19
16
17
18
14
15
RS-485 (2)
GND
RxD
A+
B-
isolated
13
10
11
12
9
A+
B-
GND
TxD
CTS
RTS
RS-232 + RS-485 (3)
isolated
GND
ACM
RJ-45
ETH
USB
host
ETU
USB
host
USB

Simex MultiCon CMC-99/141 Specifications

General

Brand	Simex
Model	MultiCon CMC-99/141
Category	Controller
Language	English
