– Calibrate the system clock in the device. It is a software clock which is clocked by
the CPU and it measures time while the device is switched on. During the calibration
a delay between RTC and the system clock is calculated and used to correct
the software clock measurements. This calibration should be performed after
the RTC calibration is done.
To do this press the
Service options
button and pass the password, which is
“SYSCLK CALIB”
and then the device should be powered for at least 48 hours.
After this time pass enter the password again.
– Calibrate the touch screen. In time, there is a possibility that the touch screen will
start to react to the user's touch a little of. It manifests itself with slight shift between
place of touch and expected place where the device should react. To calibrate the
touch screen, connect mouse to a USB port, press the
Service options
button and
pass the password, which is
“TS CALIB”
. After confirming a message, a calibration
screen will appear. The calibration is consist of touching the screen precise where
five consecutively crosses appears.

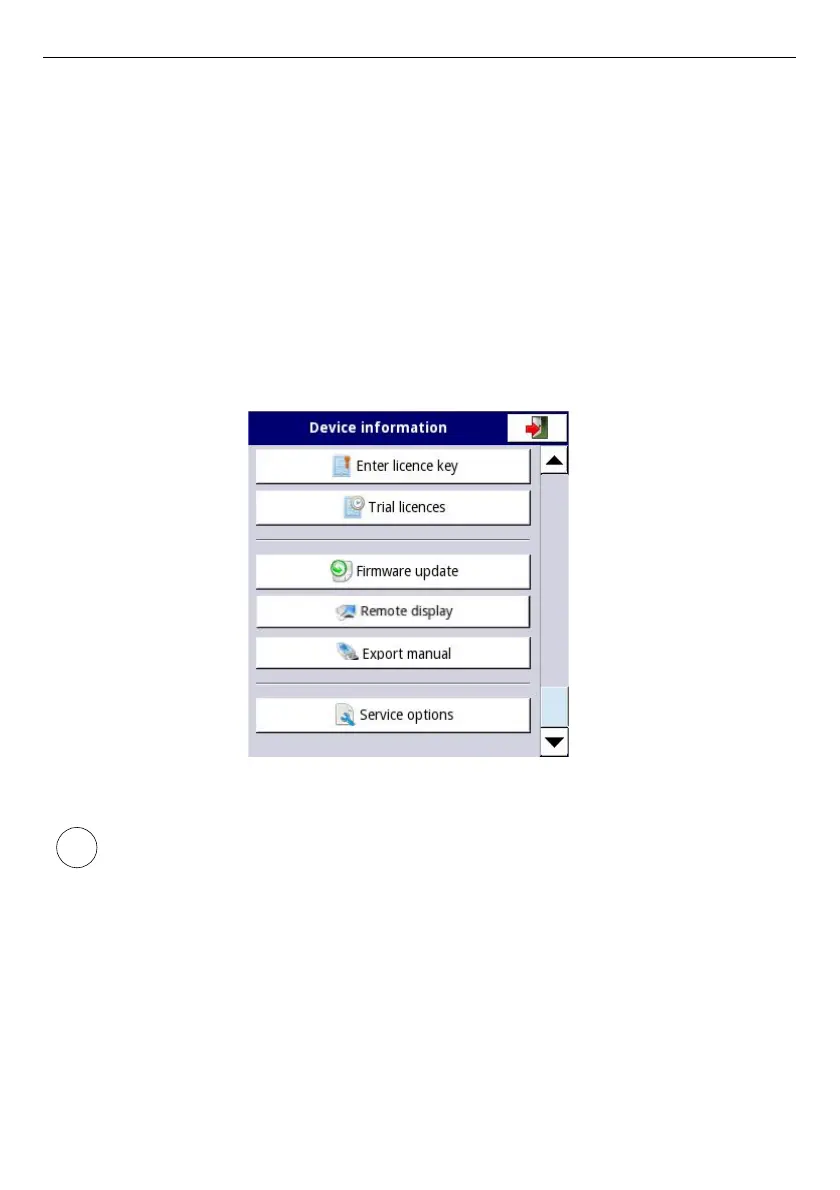

Fig. 7.33. Device information menu (cont.)
Remote display mode should not be used for normal device work, but only for its
configuration.
61
i
