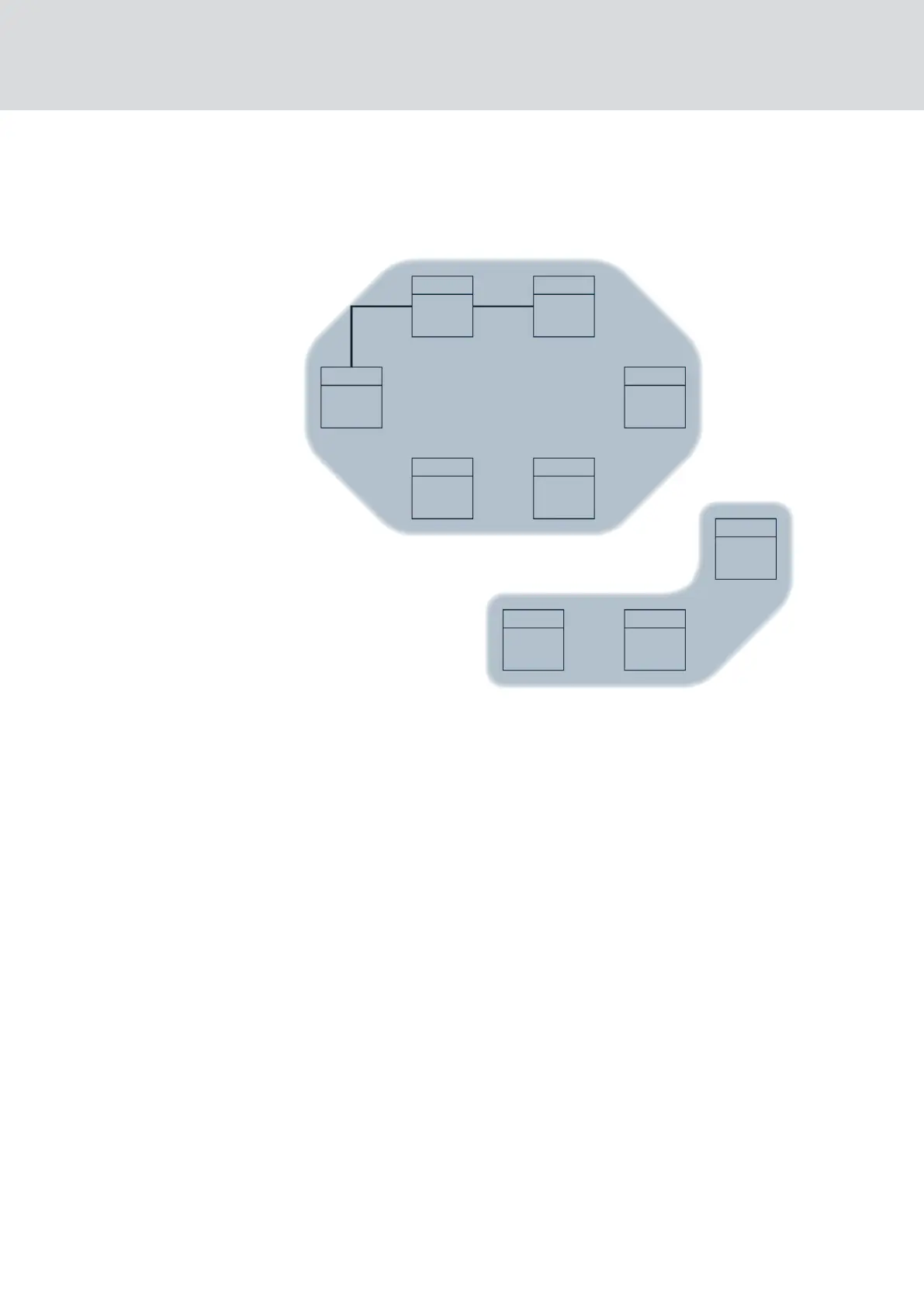

Extension 6
RN2
1
RN2
2
RN2
3
RN2
4
RN2
4a
RN2
4b
RN2
4c
RN2
5
RN2
Initiator
DI 1 (2)
DI 1 (2)
DI 1 (1)
DI 1 (1)
DI 1 (1)
DI 1 (2)
DI 1 (1)
DI 1 (1)
DI 1 (1)
The RN2-2 receives the data packet and checks the conditions one after
the other. Actual target partner
and Input counter reading in
data package > currently stored input counter reading. Both
conditions are met →
RN2-2 accepts the data packet and saves the input
counter reading of the data packet in its own input counter reading.
If the data packet is transmitted wirelessly, then other router nodes within
range will also receive the data packet. The condition Actual target partner
is not fulfilled, these RouterNodes discard the data packet.
