Simplex 4003 User Manual

28
A
B
Six wires are required for this installation. (See Figure 15.)

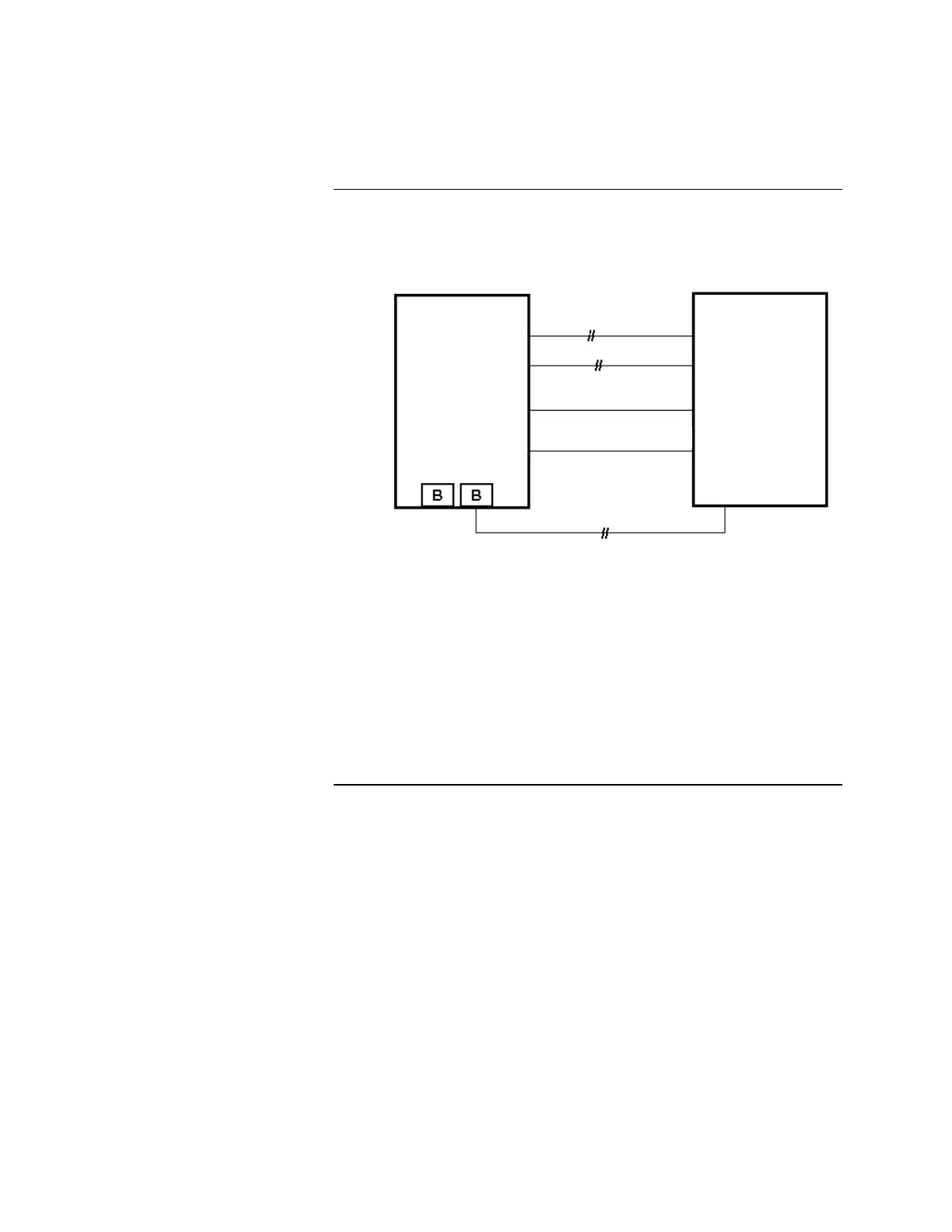

Figure 15. Interconnection to the 4001
Pair A connects the 4001 NAC to the 4003 and is used for automatic alarm
activation and for 4003 supervision. Pair B connects to the Initiating Device
Circuit (IDC) from the 4001. It is used for 4003 manual alarm activation, and it
turns on strobes, city connect, or other functions wired directly to the host panel.
The fifth wire is required for EARTH Detection Reporting back to the 4001
panel. The sixth wire is required to provide a filtered power source to the 4001
NAC. When the using external batteries of the host panel, an additional pair of
wires is required to interconnect the two panels.
Continued on next page
System Wiring Configurations, Continued
Adjunct to the 4001 System
EARTH REPORTING
4003
POWER
4001
A
B
EXT PWR
A
UX-
IDC
NAC
A
UX
0 V
IDC
NAC
