Use the following procedure when mounting a 4003.
1. Carefully open the shipping container.
2. Remove the 4003 from the shipping container and lay the unit on a flat
surface.
3. Unlock and open the panel door.
4. Remove the microphone from its holding clip and set it aside.
5. Remove the four screws holding the retainer (internal door) to the back box,
as shown in Figure 11.
RETAINER HOLDING SCREWS
SCREWS

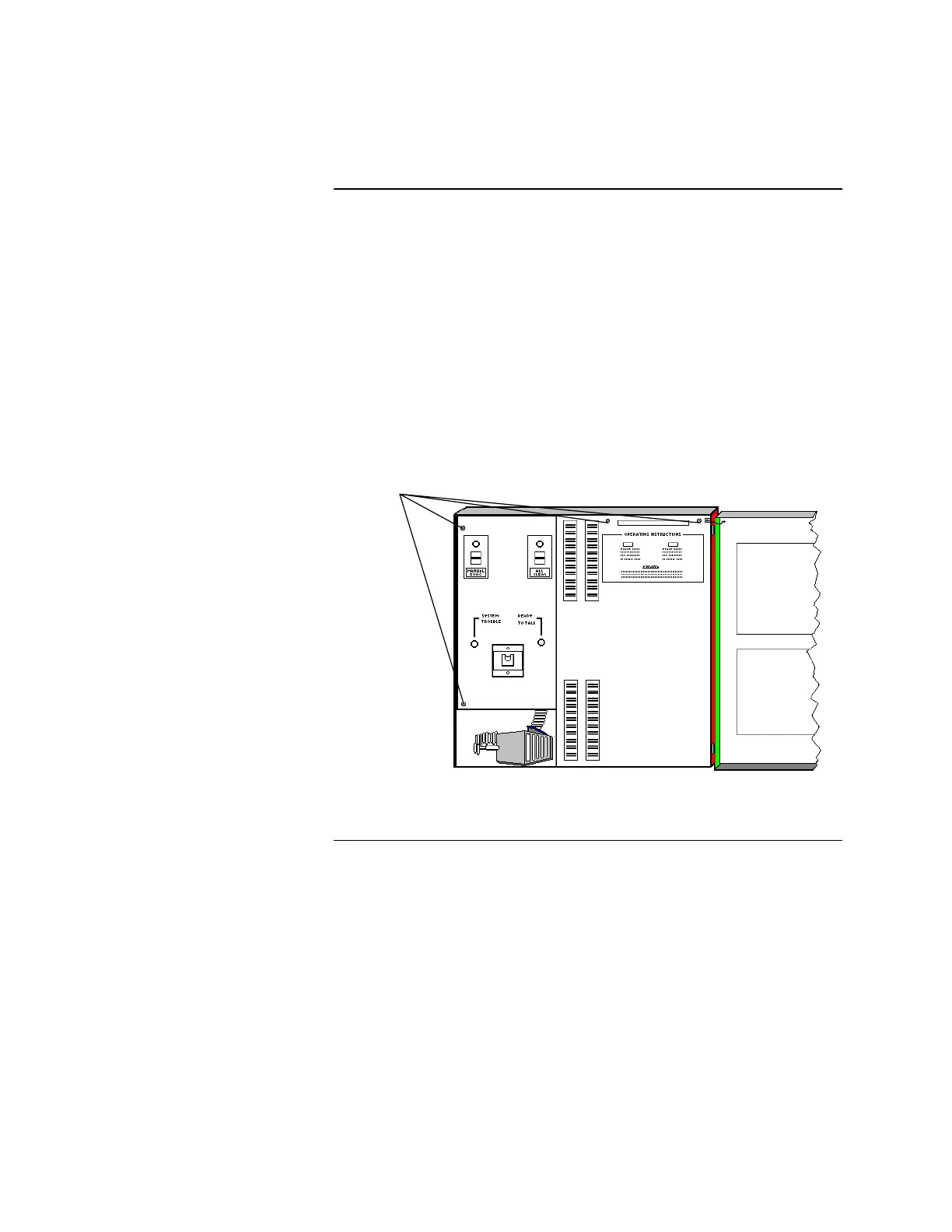

Figure 11. Location of the Retainer Holding Screws
Continued on next page
Mounting the 4003
Mounting Procedure
RETAINER HOLDING
SCREWS
To Next Page
