2-12
Note: If your 4005 panel has firmware that is at Revision 1.01.01, read the
“4005 and 4020/4100/4120 Installations” section (on page 2-3) before
starting the procedure below.
1. (If applicable) Disconnect one of the two battery terminals; then remove AC
power at the power source.
2. (If applicable) Disconnect and remove the optional City Card(s). Tie off
and remove the City Circuit wiring.
3. Using four screws, secure the CCDACT to its bracket (supplied); then, after
wiring the CCDACT into the system, mount the bracket in an "end" position
as shown. (For more information, refer to “Wiring the 4100/4120-0153
CCDACT into the System,” which follows this section.)
CCDACT/BRACKET
COULD ALSO GO HERE
CCDACT

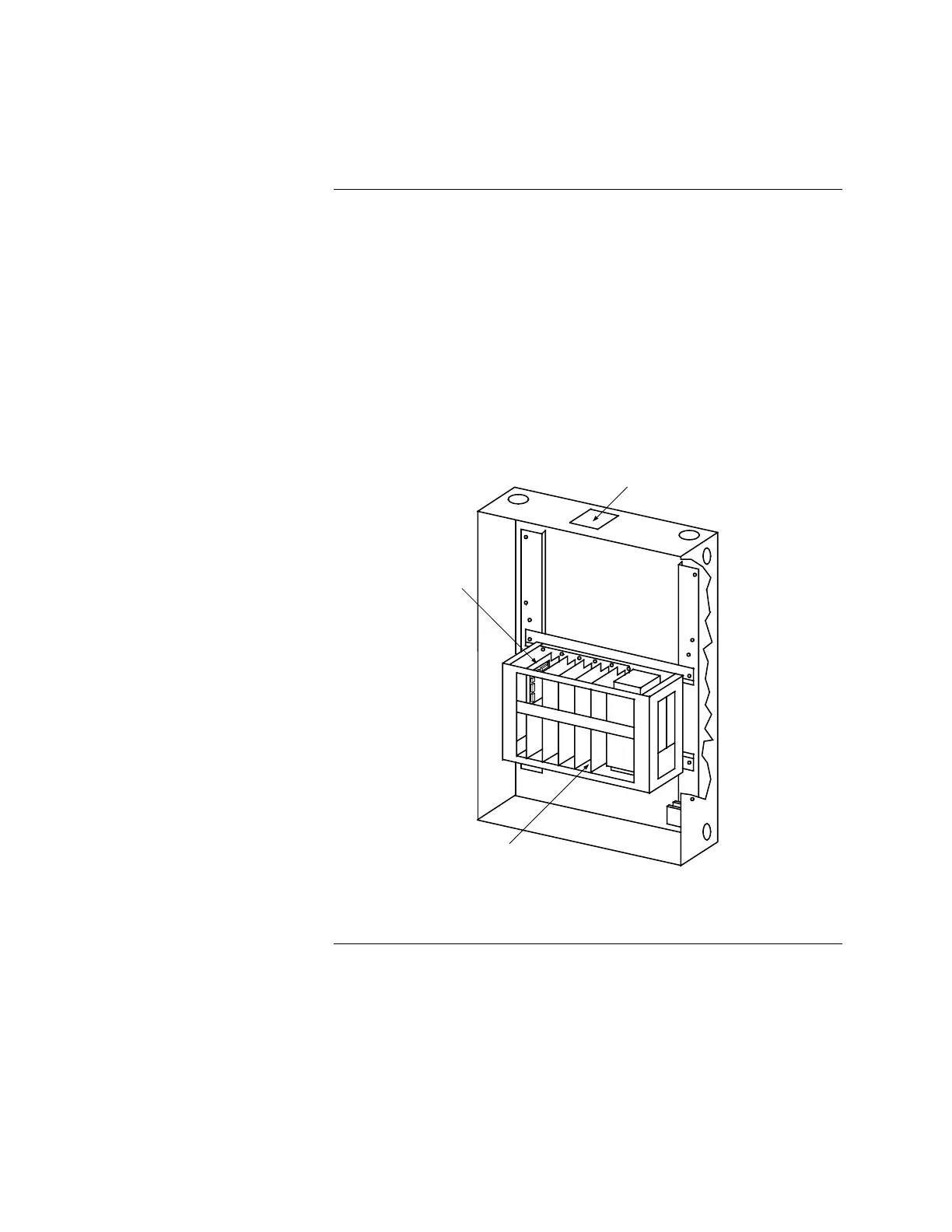

Figure 2-7. Installing a 4100/4120-0153 CCDACT Kit
Continued on next page
Installing the 4100/4120-0153 CCDACT Kit
Mounting into the
4100/4120 Panel
To Next Page
