7 Transmission Repair
7B Eaton 750 / 751

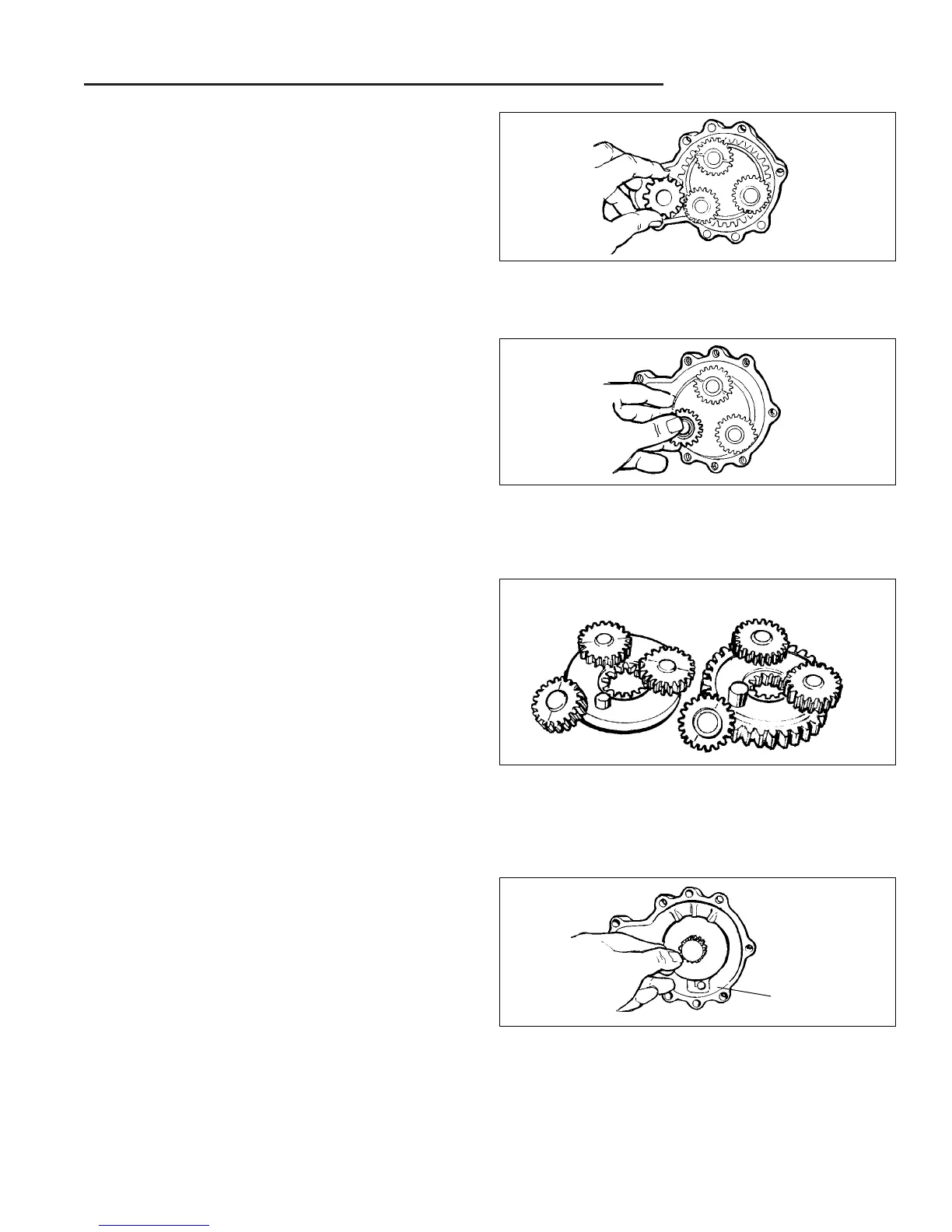

Figure B–25. Remove Brake Gear
9. Remove the brake gear from the axle housing.
10. Remove the spacer washer from axle housing.
NOTE: Spacer washer may stick in axle housing due to
grease in housing.
Figure B–26. Remove Secondary Carrier Assembly
11. Remove the secondary carrier assembly from the
axle shaft.
Figure B–27. Primary and Secondary Carriers
12. Both the primary and secondary carrier assemblies
may be disassembled for inspection.
Primary Secondary
Figure B–28. Remove Large Thrust Washer
13. Remove the large thrust washer from the axle hous-
ing. (Not used on date code G01J or higher.)
NOTE: The plug below the large thrust washer is mag-
netic and can be removed from outside the axle housing
using an Allen wrench. Remove this plug for oil and cont-
amination analysis.
Magnetic Plug
To Next Page
