6 - 19
6 General Repair
6B Hand Controls Repair
A. Knob
B. Lift Handle Rod
C. Carriage Bolt - 5/16-18 x 1-1/2"
D. Washer - 13/32 x 1-1/2"
E. Spacer
F. Washer - 5/16"
G. Hex Locknut - 5/16-18
H. Upper Lift Link
I. Upper Transport Lift Link
J. Cotter Pin
K. Lift Link
L. Lift Assembly Cam
M. Washer 21/64" x 1-1/4"
N. Spacer
O. Cotter Pin
P. Washer - 9/32"
Q. Parking Brake Cam
R. Parking Brake Rod
S. Plastic Knob
*T. Lift Handle Rod
*U. Carriage Bolt 5/16-18 x 1"

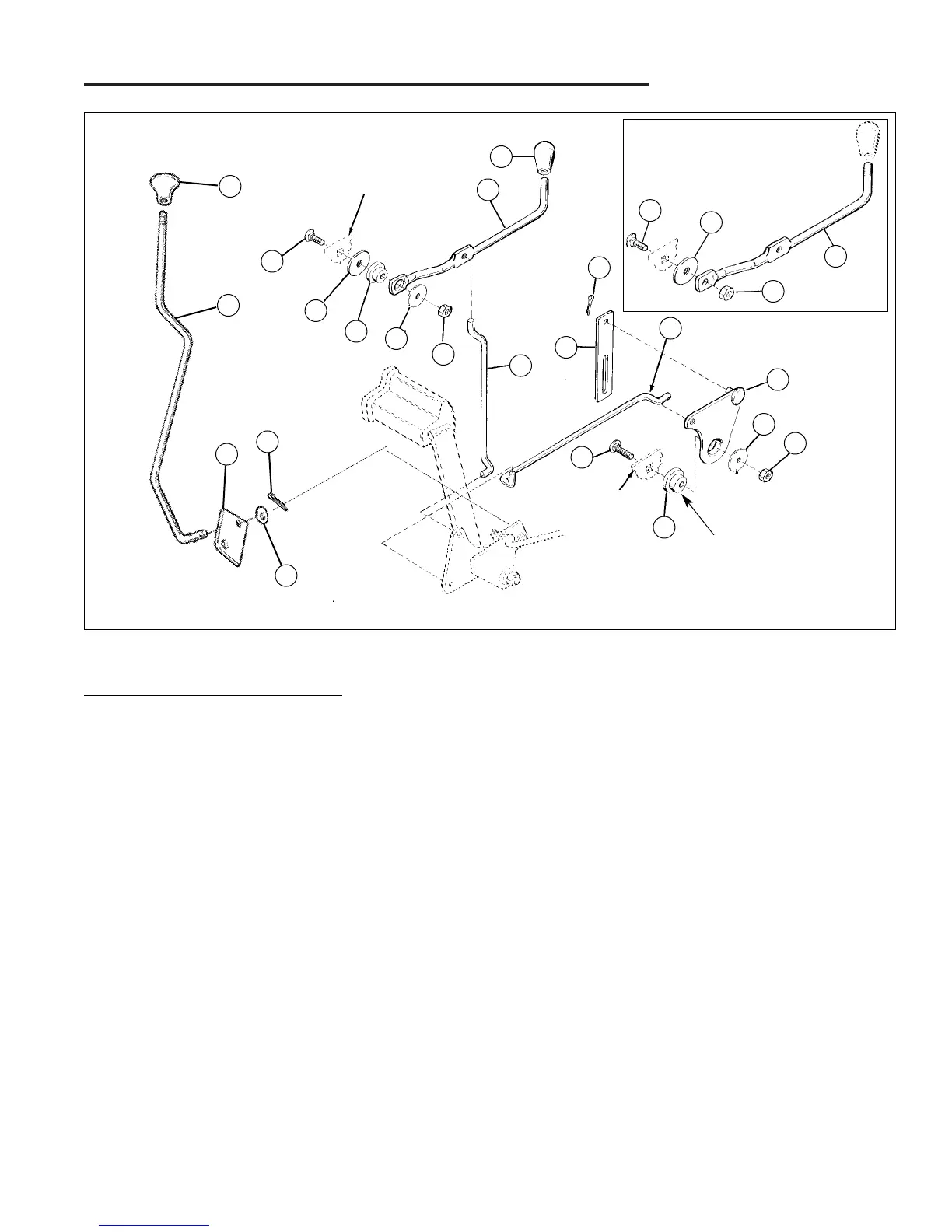

Figure B–4. Broadmoor Lift Handle Assembly
Early Style Lift
Lever Assembly
A
B
C
D
E
F
G
H
I
J
K
U
D
G
T
L
M
G
N
C
Q
O
P
S
R
Later Style Lift
Lever Assembly
Later Style Lift Lever Assembly
*Early Style Lift
Lever Assembly Only
Lower Dash
Frame
Grease
