Simplicity LTH Series Service Manual

7 - 63
7 Transmission Repair
7C Tuff Torq K60
Assembly

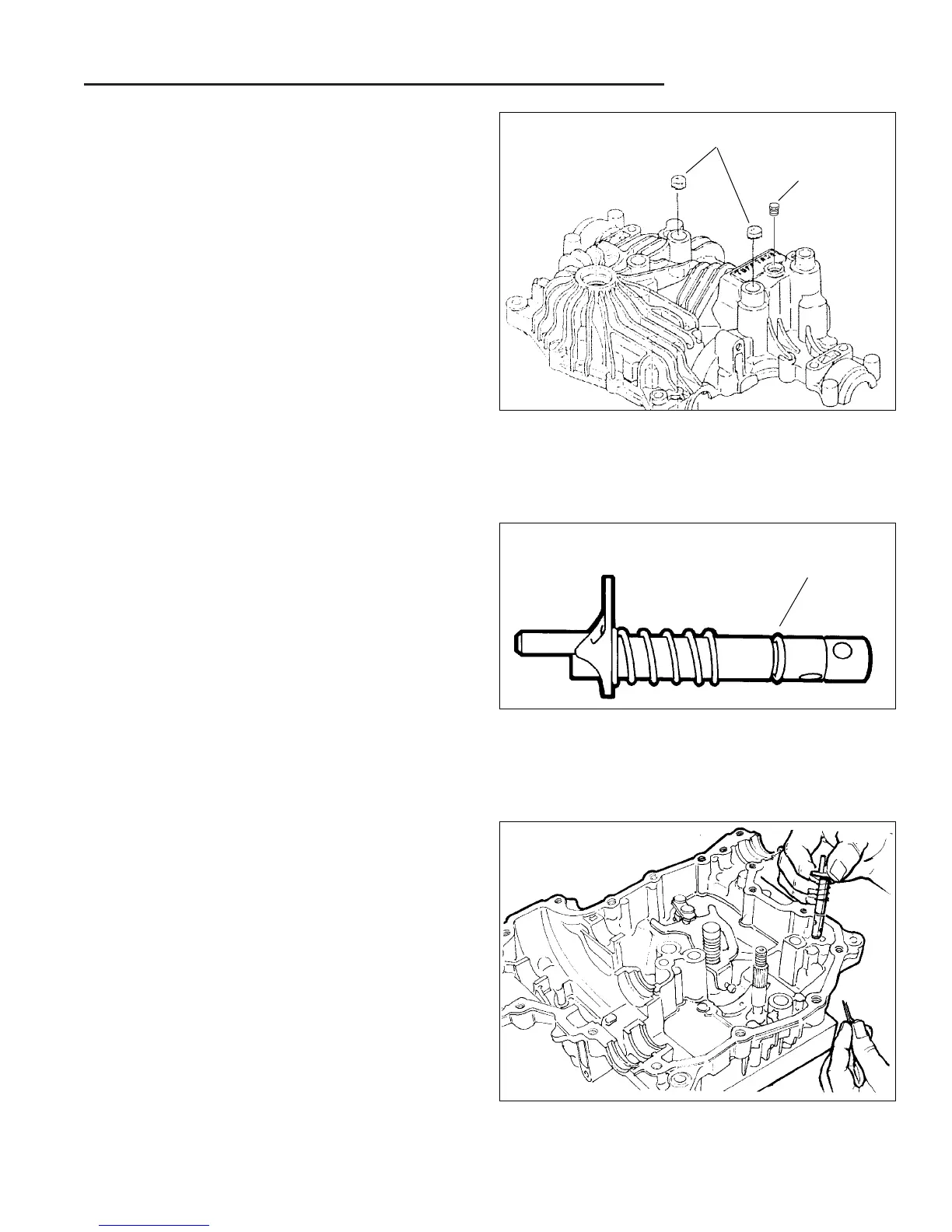

1. Apply the grease to two sealing caps and install the
caps into the upper case.
2. Apply grease and install new packing on the 9/16”
plug. Install the plug into case.
Figure C–57. Install Sealing Caps
3. Install the new packing and spring to by-pass shaft.
Figure C–59. Install By-Pass Shaft
Figure C–58. Bypass Shaft Packing and Spring
4. Apply grease to the packing and shaft and install into
the transaxle case.
Packing
Sealing Caps
9/16" Plug
