6 - 51
6 General Repair
6D Hood, Dash, & Grill Repair
HOOD, GRILLE & DASH REPAIR
General
The hood and grille are easily removed as an assembly
for repair or engine access. No special tools are required
to disconnect the headlight wire assembly during the
hood removal.
Once the hood assembly is removed, access is gained to
both the hood and the dash for inspection or repair.
Hood removal is recommended prior to removal of the
dash.

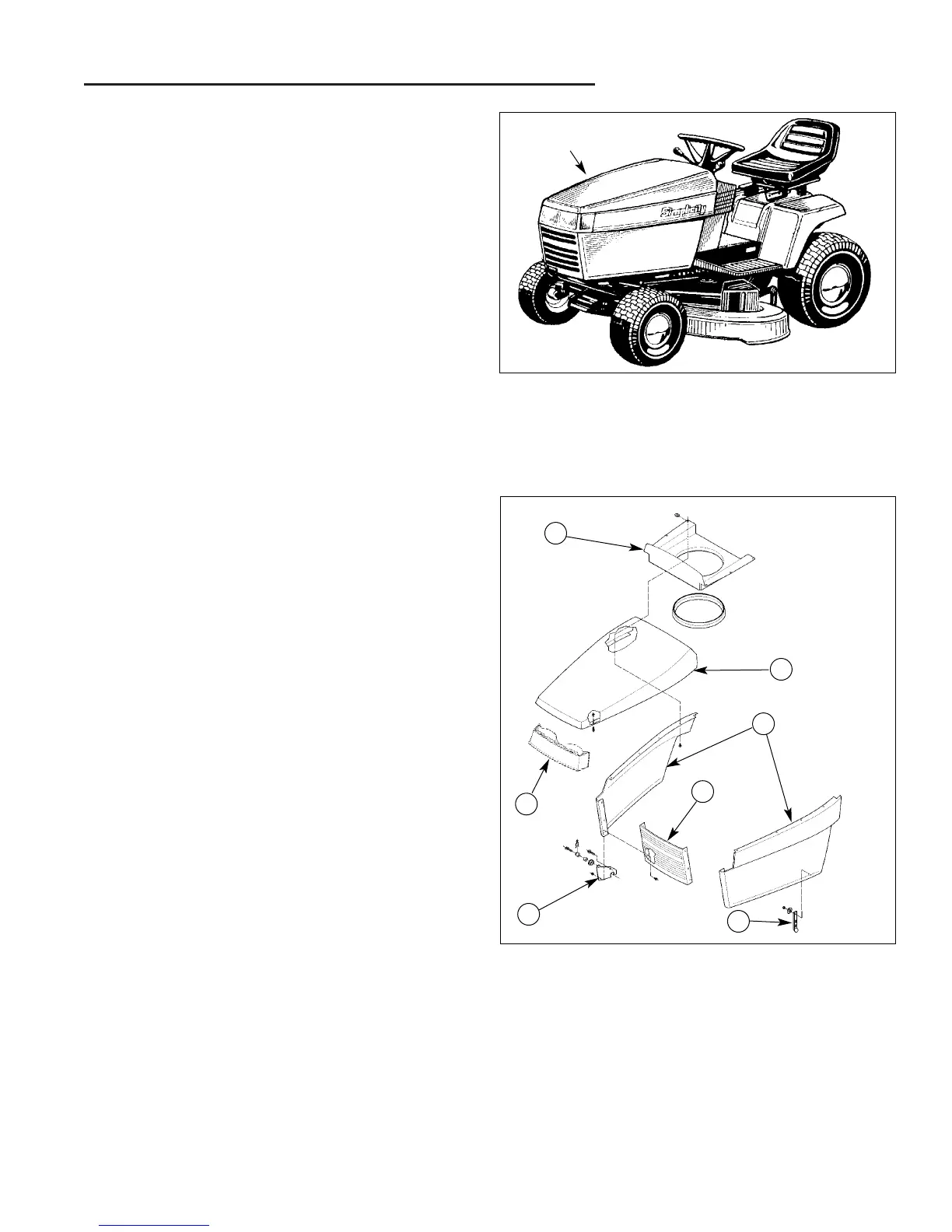

Figure D–1. Tractor Overview
Hood and Grille
A
B
C
D
F
G
E
Hood & Grille Removal
1.Unlatch the rubber hood strap (G, Figure D–2) on each
side of the hood and raise the hood to its upright posi-
tion.
Figure D–2. Hood Assembly Parts
A. Air Duct E. Side Panels
B. Hood F. Hood Hinge Assembly
C. Headlight Assy G. Hood Strap
D. Grille
