6 General Repair
6C Foot Controls Repair
6 - 50

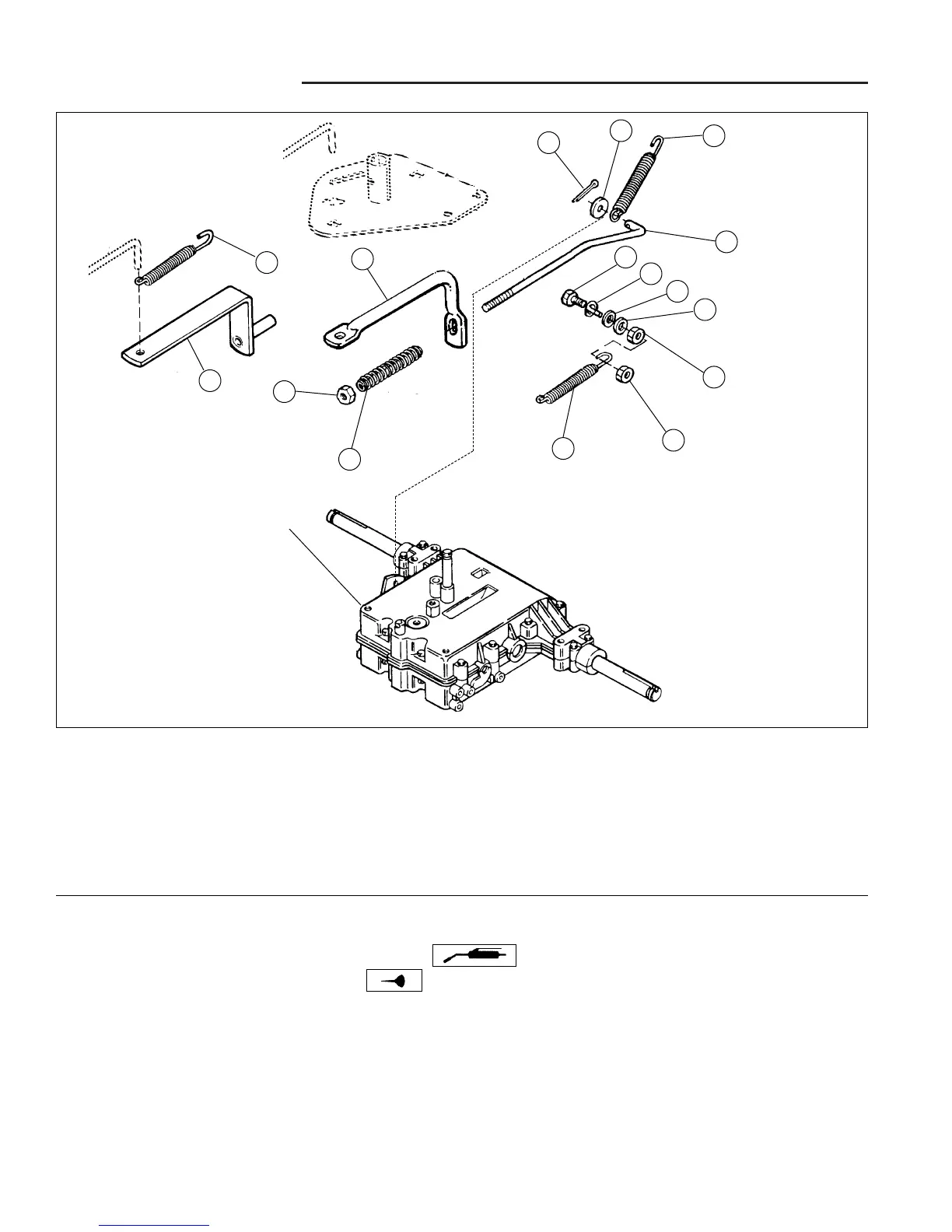

Figure C–32. Broadmoor Gear Foot Control - Brake Pedal Assembly Parts - Peerless 801
A. Cotter Pin
B. 5/16 Washer
C. Spring
D. Brake Rod
E. 3/8-16 x 1-1/2 Hex Capscrew
F. Belt Stop
G. 3/8 Washer
H. 3/8 Spring Lockwasher
I. 3/8-16 Hex Nut
J. 3/8-16 Centerlock Jam Nut
K. Spring
L. Compression Spring
M. 5/16-18 Nylon Lock Nut
N. Brake Rod Guide
O. Spring
P. Brake Arm Assembly
NOTES:
1. Unless specified, use torque specifications shown on standard hardware torque specification chart.
2. Grease locations indicated by grease gun symbol:
3. Oil locations indicated by oil can symbol:
4. With parking brake engaged, compressed length of spring should be 2-7/8".
Peerless Gear Transmission
A
B
C
D
E
F
G
H
I
J
N
M
L
O
K
P
Attach To
Frame
Early Units
Note 4
To Next Page
