7 - 29
7 Transmission Repair
7B Eaton 750 / 751

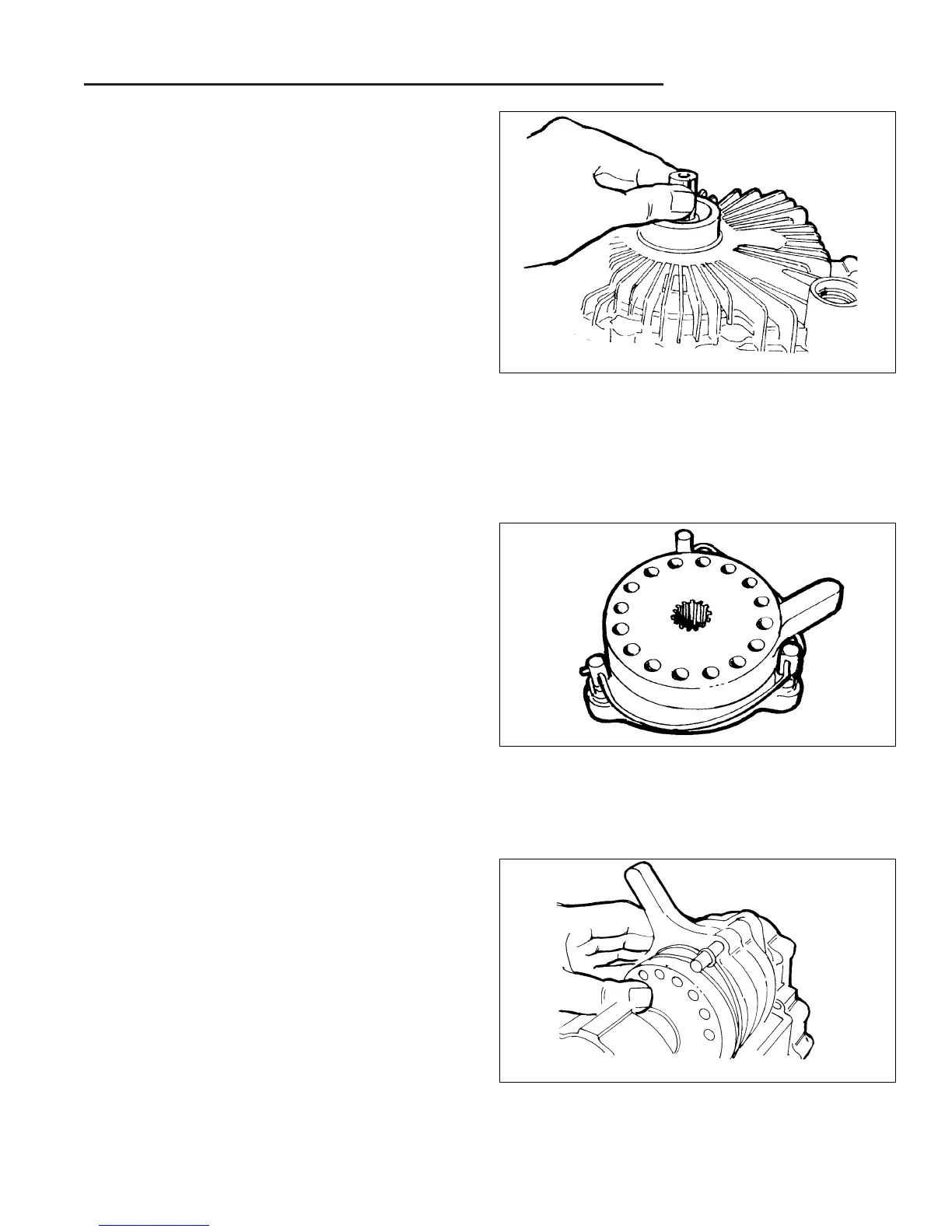

Figure B–71. Install Cover On Transaxle Housing
6. Install a new cover gasket on the transaxle housing.
7. Install the cover assembly by carefully aligning it with
the control shaft, cam ring pivot dowel and pump
rotor drive.
NOTE: An alternate method is to turn cover and
transaxle housing sideways and slide together.
8. After engaging the control shaft and pivot dowel in
the cover assembly, carefully rotate the input shaft to
engage the pump rotor drive. When all mating parts
are aligned and engaged, the cover assembly should
fall into position on the housing assembly.
9. Install the capscrews in the cover assembly and
torque to 105 inch pounds.
Note: Capscrews must be carefully threaded into alu-
minum housing to prevent additional threads from being
cut. Rotate capscrews counter-clockwise to align
threads.
Figure B–72. Assemble Parking Brake Assembly
Axle Installation (Eaton 750)
1. Before installing the parking brake assembly, make
sure the brake is in the unlocked position.
NOTE: Make sure you DO NOT move the parking brake
lever on 750 transaxle, especially when it is out of the
transaxle housing. The parking brake incorporates auto-
matic self-adjusting brakes. Activation of the lever may
cause the brake to expand and make installation of the
assembly very difficult or impossible.
Figure B–73. Install Parking Brake Assembly
2. Install the parking brake assembly into the transaxle
housing. Align it with the four (4) notches cast in the
housing assembly.
NOTE: Make sure the parking brake handle is pointing or
leaning towards the cover side of the transaxle housing .
To Next Page
