Simplicity LTH Series Service Manual

6 General Repair
6B Hand Controls Repair
6 - 18
EARLY MODEL SHIFT LEVER ASSEMBLY
A. Knob
B. Shift Lever
C. Cotter Pin
D. Washer
E. Torsion Spring
F. Plastic Bushing - 1/2" Dia.
G. Nylon Bushing - 3/4" Dia.
H. Tension Bracket
I. Hex Head Capscrew - 5/16-18 x 1-3/4"
J. Washer - 5/16"
K. Spacer
L. Washer - 5/8"
M. Washer - 1/2"
N. Spring
O. Hex Locknut - 5/16-18
P. Shift Lever Assembly
LATER MODEL SHIFT LEVER ASSEMBLY
A. Knob
B. Shift Lever
C. Cotter Pin
D. Washer
E. Torsion Spring
F. Plastic Bushing - 1/2" Dia.
G. Nylon Bushing - 3/4" Dia.
H. Washer - 1/2"
I. Hex Locknut - 5/16-18
J. Washer - 5/16"
K. Spring
L. Hex Nut 5/16-18
M. Lockwasher - 5/16"
N. Washer - H.T.
O. Spacer
P. Stud - 5/16-18 x 3-1/4"
Q. Carriage Bolt 1/4-20 x 3/4"
R. Washer - 21/64 x 1-1/4"
S. Tension Bracket
T. Washer - 1/4"
U. Lockwasher - 1/4"
V. Hex Nut 1/4-20
W. Shift Lever Assembly

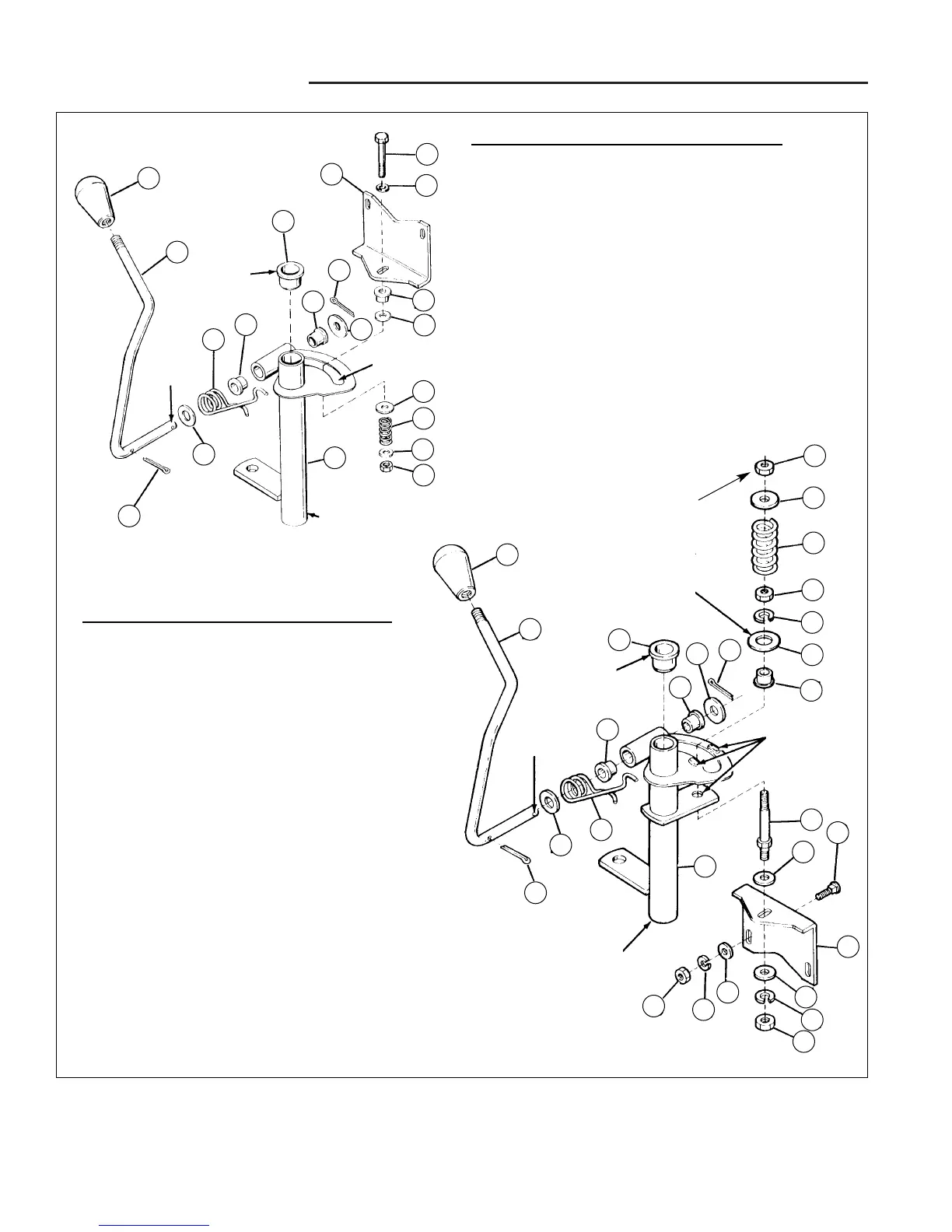

Figure B–3. Typical Shift Lever Assemblies
A
B
G
F
E
F
C
D
C
P
L
N
J
O
M
L
K
H
J
I
B
G
F
F
H
C
O
N
M
L
K
J
I
A
E
D
C
W
P
Q
R
S
R
T
U
V
M
Install washer
with rounded
edge down.
Grease
Grease
Grease
Grease
Grease
Grease
Grease
Grease
EARLY MODEL
LATER MODEL
Torque To 75-100 in.-lbs.
L
