7 Transmission Repair
7C Tuff Torq K60
Installation
1. Place the transaxle on a floor jack. Remove the
expansion chamber cap and center the transaxle
under the rear of the frame.
2. Connect the return to neutral linkage to the cam plate
as the transaxle is raised into tractor.

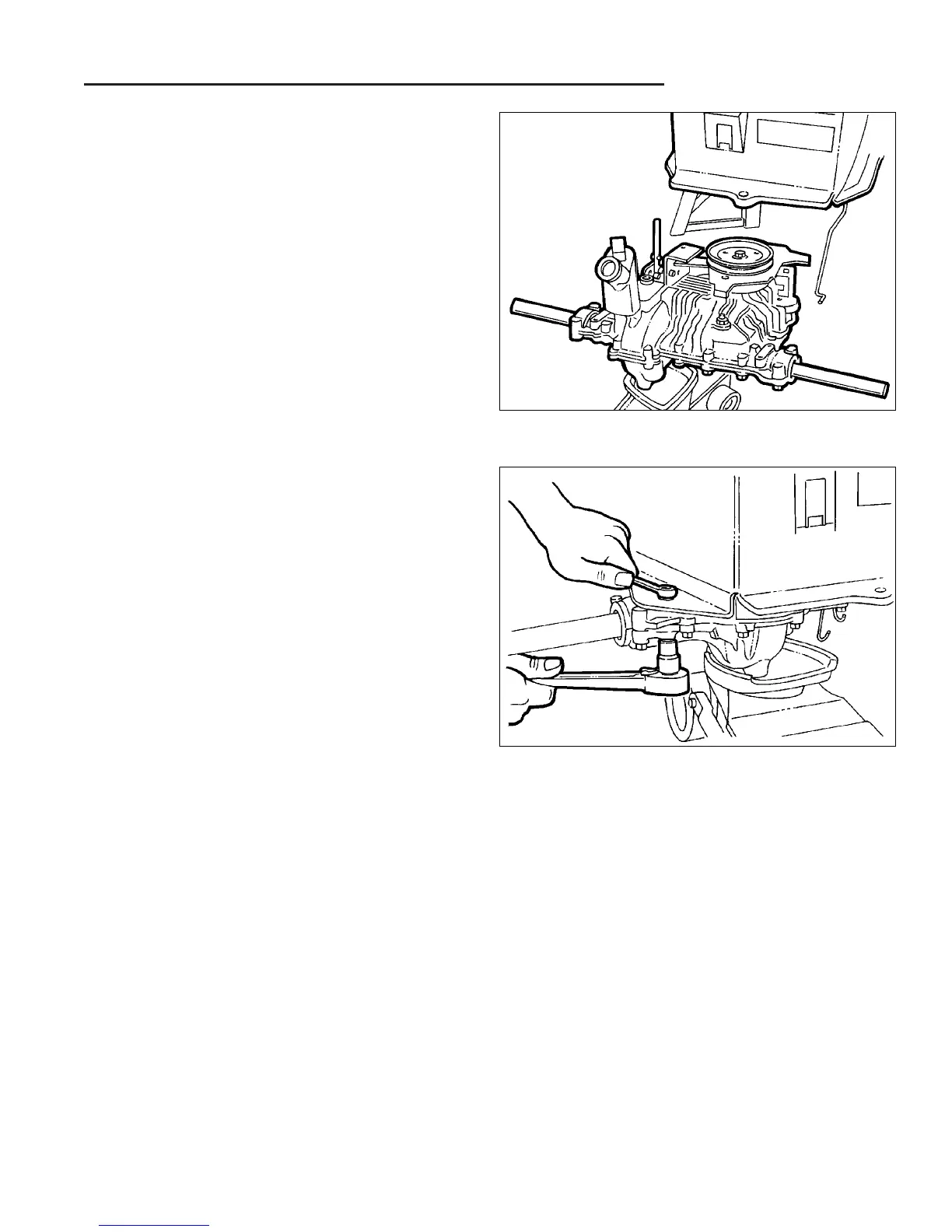

Figure C–98. Install Transaxle To Frame
3. Install the four mounting capscrews and nuts.
Figure C–99. Install Mounting Capscrews
4. Install following components:
• torque strap
• free wheel lever spring
• shift control rod
• hydro drive belt
• brake rod
• control cam return spring
• neutral return rod
•.hydro drive spring
• input shaft fan
• rear wheels
5. Purge air from the transmission. See “Purging Air
from Transaxle”
