7 Transmission Repair
7B Eaton 750 / 751
7 - 36

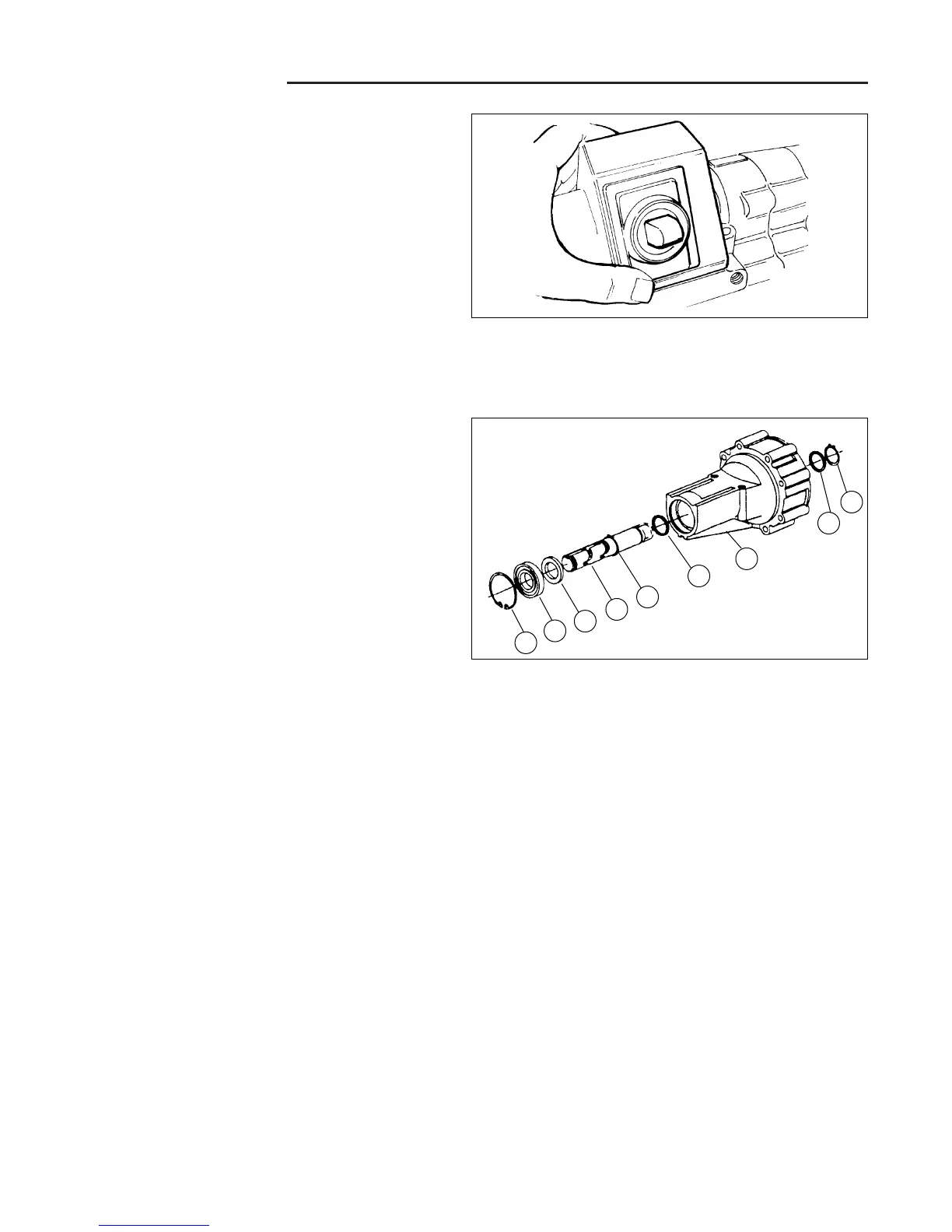

Figure B–96. Install Brake Housing Cover
9. Reposition the transaxle assembly and install the
brake cover by inserting the brake lever through the
dust boot.
10. Install the self-tapping capscrews in the brake cover
and tighten them until snug.
Figure B–97. Assemble Axle Assembly
Axle Housing Reassembly (Eaton 751)
1. Lubricate and install the thrust washer in the axle
housing.
2. Lubricate and install the axle shaft into the axle hous-
ing.
3. Reposition the axle housing with the output end of
axle pointing downward. Install the inner thrust wash-
er and axle shaft retaining ring.
IMPORTANT: The round-cornered side (die-rolled)
side of the retaining ring must point toward the axle
housing.
4. Reposition the axle housing with the output end
pointing upward. Protecting the lip of the axle seal
from the retaining ring groove and keyway, lubricate
and install the seal with the lip pointing inward
towards the axle housing.
5. Using a piece of pipe or hydraulic tubing 1.5" (38
mm) O.D. x 6" (150mm) long, press the seal into the
counterbore.
6. Using a piece of pipe or hydraulic tubing 1.125" (29
mm) O.D. x 6" (150 mm) long, press the ball bearing
over the axle shaft and into the axle housing.
7. Using a pair of No. 5 or 7 internal retaining ring pliers,
install the ball bearing retaining ring in the axle hous-
ing.
A. Retaining Ring
B. Ball Bearing
C. Radial Lip Seal
D. Axle Shaft
E. Retaining Ring
F. Thrust Washer
G. Axle Housing
H. Retaining Ring
A
B
C
D
E
F
G
F
A
B
C
D
E
F
G
F
H
