7 Transmission Repair
7B Eaton 750 / 751
7 - 12
Removal
1. Jack up the rear end and remove the rear wheels.
(See the Elevating Rear End for Safe Service and
Rear Wheel Removal sections)
2. Place a drain pan under the transaxle.
3. Remove the oil intake hose (A) from the right-front of
the transaxle and allow the oil to drain.
4. Remove the nut, washer, and bolt (B) holding the
shift lever to the bracket.

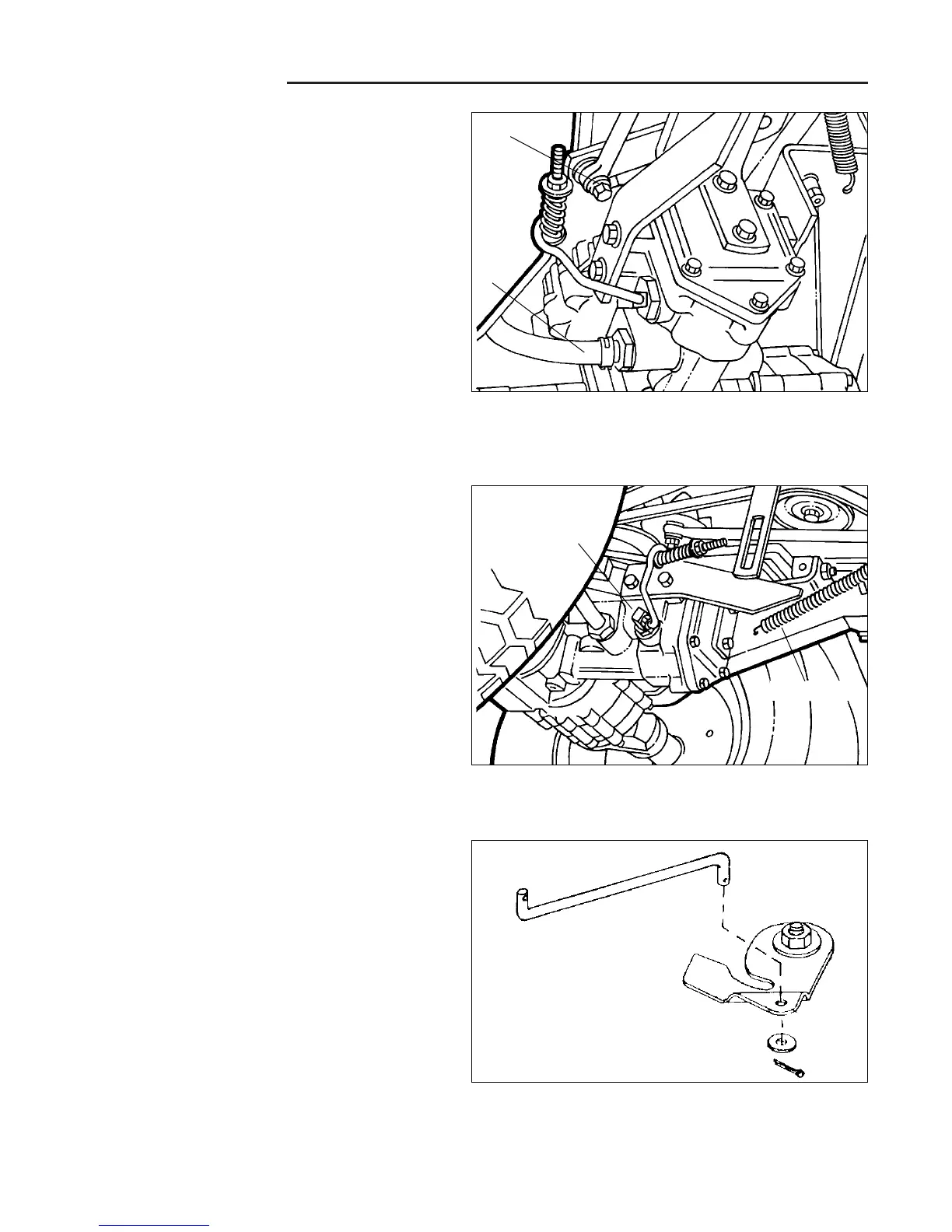

Figure B–7. Remove Oil Hose and Shift Linkage
5. Remove the nut and washer holding the bypass lever
to the transaxle bypass valve shaft.
6. Remove the large idler arm spring from the front of
the transaxle mounting bracket.
Figure B–8. Remove Bypass Lever
Figure B–9. Remove Neutral-Return Rod
7. Remove the neutral-return rod from the neutral-return
cam on the top of the transaxle.
8. Unhook the brake return spring from the left rear cor-
ner of the frame.
A. Oil Intake Hose B. Shift Lever
A
B
Bypass Lever
Idler Spring
To Next Page
