Simplicity LTH Series Service Manual

7 - 11
7 Transmission Repair
7B Eaton 750 / 751

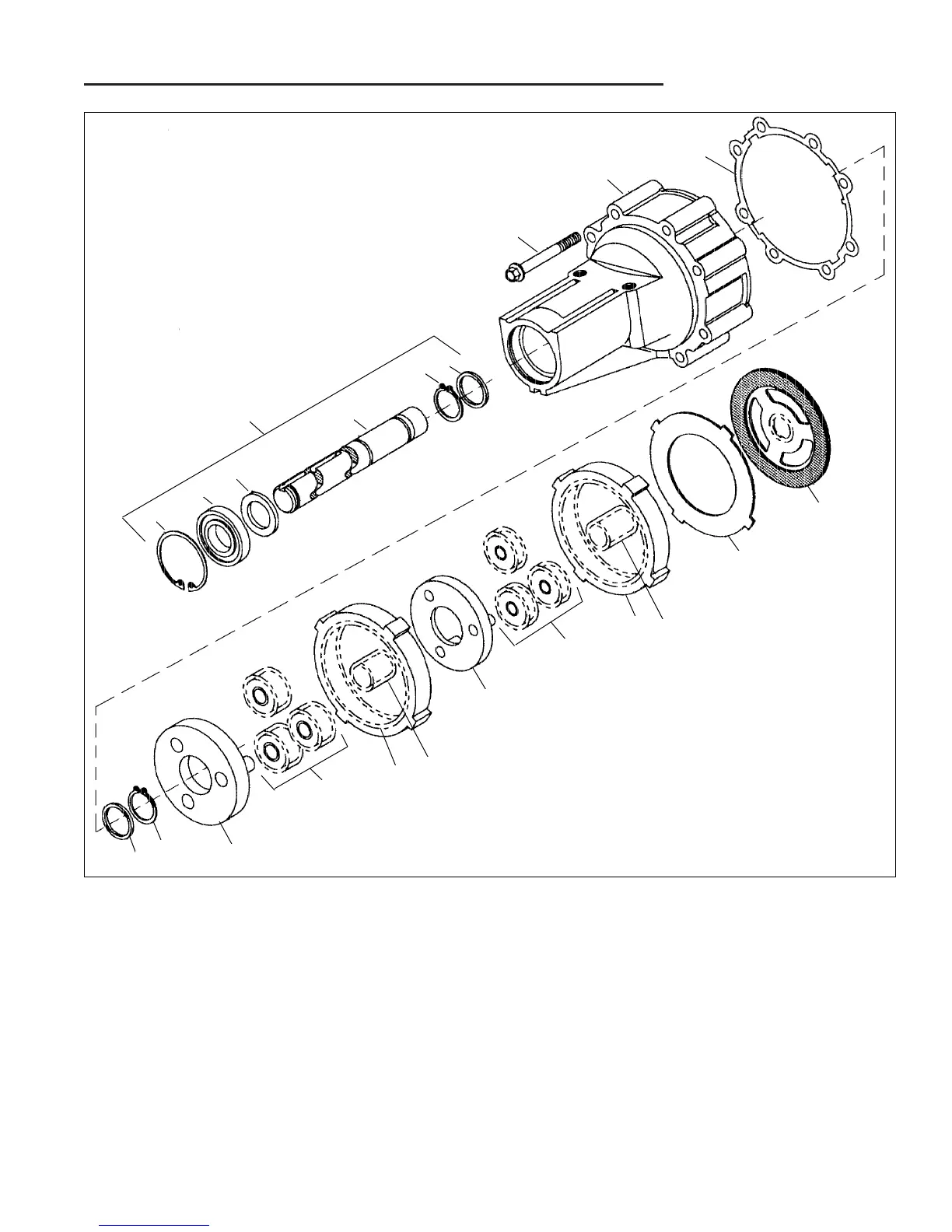

Figure B–6. Eaton 751 Hydrostatic Transaxle Axle Assembly
1. Screw, 1/4"- 20
2. Housing, Axle
3. Gasket, Housing, Axle
4. Ring, Retaining, Internal
5. Bearing, Ball
6. Seal, Radial, Lip
7. Shaft, Axle
8. Ring, Retaining, External
9. Washer, Thrust
10. Carrier, Secondary
11. Planet Gear, Second, 18T
12. Gear, Ring, 54T
13.. Sun Gear, Second, 18T
14. Primary Carrier, 18T
15. Planet Gear, First, 18T
16. Sun Gear, First, 18T
17. Plate, Back-Up
18. Plate, Reaction
19. Housing, Axle (Contains Items 2, 4–9)
19
8
7
6
5
4
9
3
2
1
9
8
10
11
12
13
14
15
12
16
17
18
