Simplicity LTH Series Service Manual

7 Transmission Repair
7 - 10

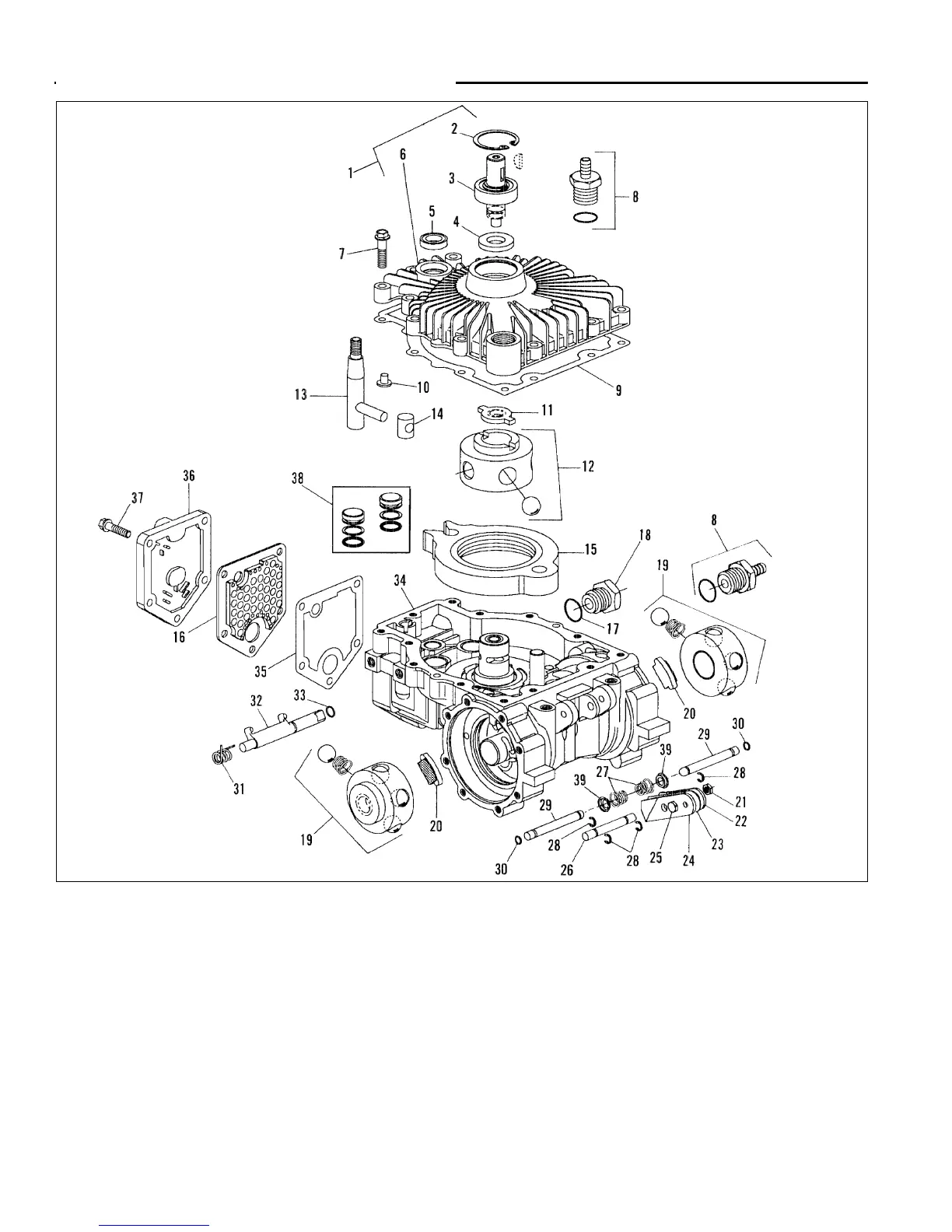

Figure B–5. Eaton 751 Hydrostatic Transaxle
SECTION 4H. Eaton 750/751 Repair
1. Assembly, Cover
2. Ring, Retaining, External
3. Assembly, Shaft, Input
4. Seal, Input Shaft
5. Seal, Control Shaft
6. Cover
7. Screw, Self-Tap, 1-4/20
8. Assembly, Fitting
9. Gasket, Cover
10. Button
11. Drive
12. Pump, Rotor-Ball
13. Shaft, Control
14. Insert
15. Ring, Cam
16. Filter, Hydraulic
17. O-Ring
18. Fitting
19. Motor, Rotor-Ball, 18T
20. Pad, Friction
21. Nut, Hex, Lock
22. Lever, Brake, Left Hand
23. Shim
24. Lever, Brake, RH
25. Screw, Cap, Hex
26. Shaft, Brake
27. Spring, Conical
28. E-Ring
29. Rod, Push
30. Seal, Quad
31. Spring, Dump Valve
32. Bracket, Dump Valve
33. O-Ring
34. Housing
35. Gasket, Valve Cover
36. Cover, Valve
37. Capscrew, Hex, 1/4-20
38. Piston, Quieting
39. Base, Spring
