7 Transmission Repair
7B Eaton 750 / 751
1. Carrier, Secondary
2. Gear, Planetary
3. Gear, Sun
4. Assembly, Gear, Planetary
5. Carrier, Primary
6. Gear, Planetary
7. Gear, Sun
8. Assembly, Gear, Planetary
9. Gear, Ring, 54T
10. Gasket, Housing, Axle
11. Plate, Wear
12. Gasket, Housing, Axle
13. Lock Gear, Differential
14. Shaft, Brake
15. Ring, Retaining, Internal
16. Bearing, Ball
17. Seal, Radial, Lip
18. Shaft, Axle
19. Ring, Retaining, External
20. Washer, Thrust
21. Housing, Axle, Left
22. Housing, Axle, Right
23. Plug, Magnetic
24. Capscrew, Hex, Flange 1/4-20 x 2-3/4
25. Shaft, Brake
26. Lock Gear, Differential

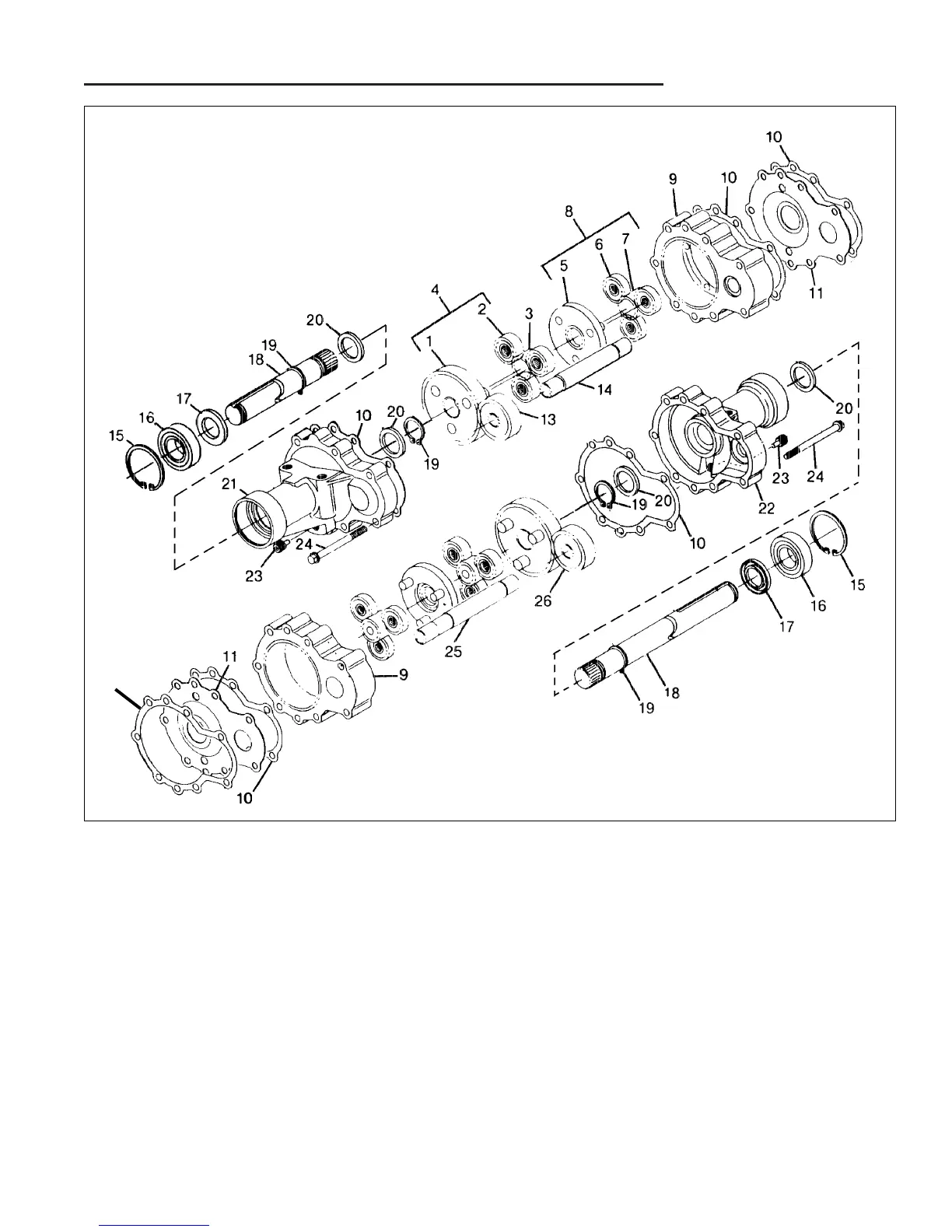

Figure B–4. Eaton 750 Hydrostatic Transaxle
