Simplicity LTH Series Service Manual

7 Transmission Repair
7B Eaton 750 / 751
7 - 8

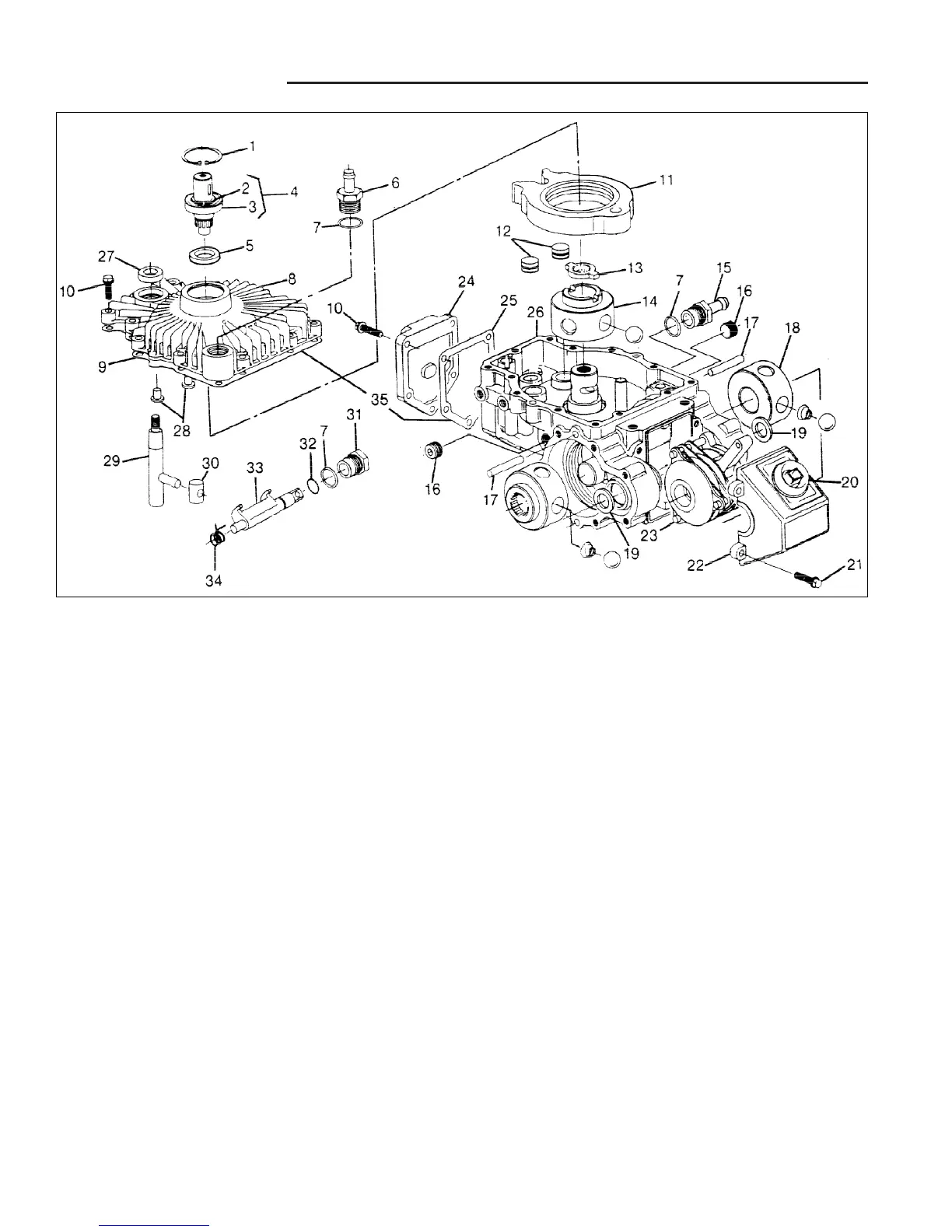

Figure B–3. Eaton 750 Hydrostatic Transaxle
1. Ring, Retaining, Internal
2. Ring, Retaining, External
3. Bearing, Input Shaft
4. Shaft, Input
5. Seal, Oil
6. Adapter, Hose, 3/8"
7. O-Ring, Fitting
8. Top Cover
9. Gasket, Cover, (A)
10. Capscrew, 1/4"- 20
11. Cam, Ring
12. Piston, Quieting
13. Drive
14. Pump, Rotor, Ball
15. Adapter
16. Plug, Socket Head
17. Dowel
18. Motor, Rotor, Ball
19. Seal, Lip, Radial
20. Boot, Dust
21. Screw, 1/4"- 20, Self-Tapping
22. Cover, Brake, Parking
23. Brake Assembly, Parking
24. Cover, Valve
25. Gasket, Valve Cover (A)
26. Housing
27. Seal, Oil
28. Button
29. Shaft, Control
30. Insert
31. Fitting
32. O-Ring
33. Dump Valve Bracket
34. Spring, Dump Valve
35. Kit, Gasket (Includes parts marked "A")
