7 Transmission Repair
7C Tuff Torq K60
7 - 76
66.Install the expansion chamber, connector hose,
spring clips, reservoir, and cap.
67. Remove the air vent cap (Figure C–104) and slowly
pour SAE 10W-30 motor oil into the the expansion
chamber until oil comes out of the vent.
68. Replace the vent cap and fill the expansion chamber
to the “Full Cold” mark.

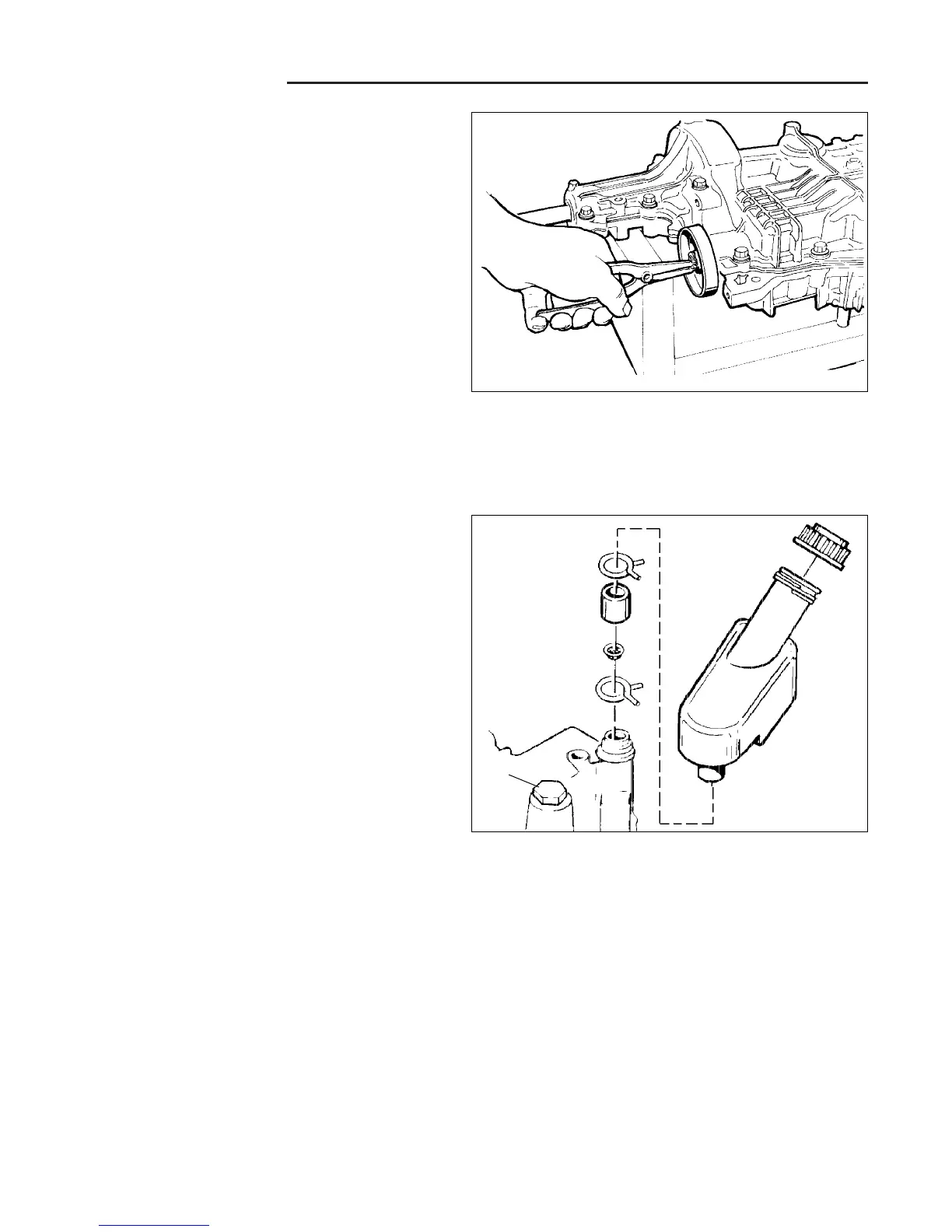

Figure C–97. Install Expansion Chamber
Vent Cap
61. Install a new seal on the transaxle drain plug and
install the plug into the case.
Drain Plug Torque: 9–12 lb-ft.
62. Clean oil from the brake shaft and install the brake
drum and snap ring. See Figure C–103.
63. Install the brake assembly with three capscrews and
washers.
Brake Mounting Capscrews Torque: 16–21 lb-ft.
64. Install the control lever cam plate.
Control Shaft Capscrew Torque: 70–80 in-lbs.
65. Install the input shaft pulley bottom retaining ring, pul-
ley, top retaining ring, and setscrew.
Pulley Setscrew Torque: 90–100 in-lbs.
Figure C–96. Install Brake Drum
