6 - 49
6 General Repair
6C Foot Controls Repair

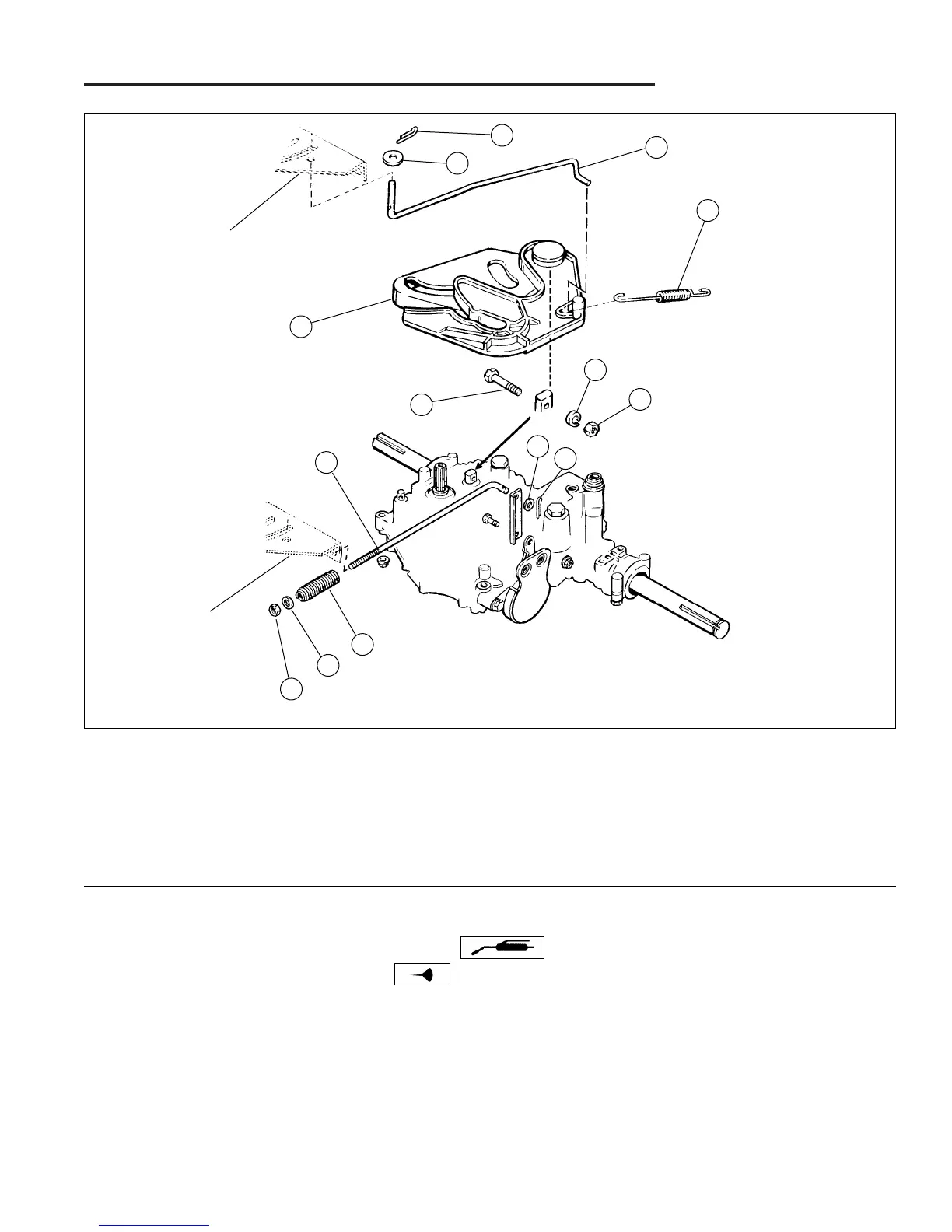

Figure C–31. Broadmoor Hydro Foot Controls - Tuff-Torq K60 Transmission Linkages
A. Cotter Pin
B. 11/32 Washer
C. Return-to-neutral Rod
D. Spring
E. 6mm x 55 mm Hex Capscrew
F. 1/4 Lockwasher
G. 6 mm Hex Nut
H. Washer
I. Cotter Pin
J. Brake Rod
K. Brake Spring
L. 5/16-18 Nylon Hex Locknut
M. Cam Assembly
NOTES:
1. Unless specified, use torque specifications shown on standard hardware torque specification chart.
2. Grease locations indicated by grease gun symbol:
3. Oil locations indicated by oil can symbol:
4. With parking brake engaged, length of compressed spring should be 1-5/8" - 1-7/8"
A
B
C
D
E
F
G
H
J
K
H
L
Actuator
Assembly
Actuator
Assembly
M
Note 4
I
To Next Page
