6 General Repair
6C Foot Controls Repair
6 - 48

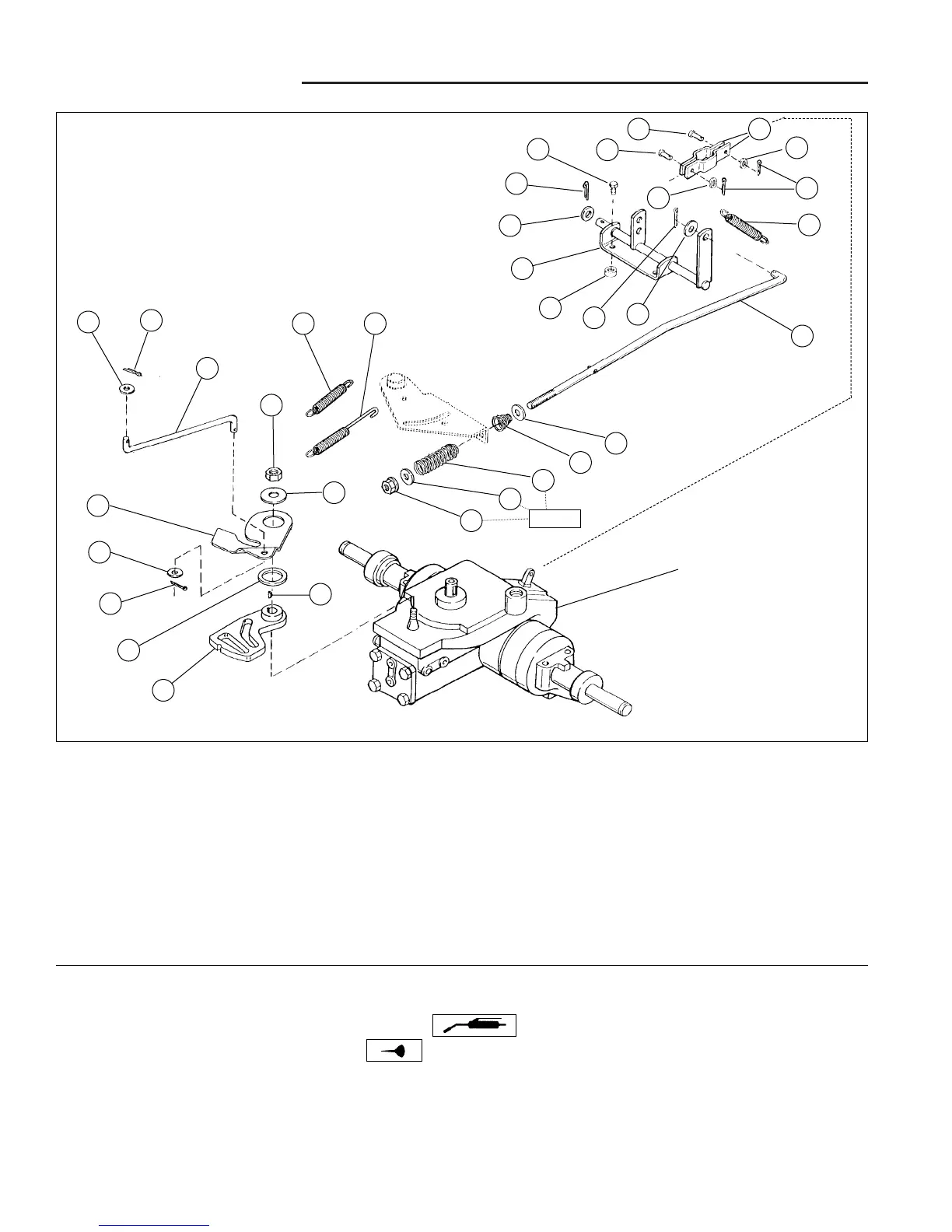

Figure C–28. Broadmoor Hydro Foot Controls - Eaton 750 / 751 Transmission Linkages
A. Clevis Bars
B. Washer
C. Cotter Pin
D. Extension Spring
E. Brake Rod
F. 13/32 Washer
G. Conical Spring
H. Spring
I. 5/16-18 Flangelock Nut
J. Hydro Cam
K. 1/8 x 1/2 Woodruff Key
L. Cam Spacer
M. Cotter Pin
N. Neutral Return Rod
O. Washer
P. 3/8-16 Hex Locknut
Q. Neutral Return Rod
R. Spring
S. Spring
T. Spacer
U. Brake Lever Bracket Assembly
V. Washer
W. Cotter Pin
X. 5/16-18 x 1-1/2 Hex Capscrew
Y. Clevis Pin
Z. Clevis Pin
NOTES:
1. Unless specified, use torque specifications shown on standard hardware torque specification chart.
2. Grease locations indicated by grease gun symbol:
3. Oil locations indicated by oil can symbol:
4. With parking brake engaged, length of compressed spring should be 1-3/4" +/- 1/8" (1-5/8" to 1-7/8") Adjust nut
"I" as required to obtain correct spring length.
T
U
V
W
X
Y
Z A
B
C
D
B
E
F
G
H
F
I
R S
Q
M
F
P
O
K
N
F
M
L
J
F
M
Transmission
Note 4
To Next Page
