6 - 47
6 General Repair
6C Foot Controls Repair
A. 3/8 Lockwasher
B. 3/8-16 Hex Nut
C. Cotter Pin
D. 5/16 Washer
E. Brake Rod
F. 3/8-16 Hex Lock Jam-nut
G. Spring
H. 5/16-18 Hex Nylon Locknut
I. Rod Guide
J. Brake Arm Spring
K. 3/8-16 x 1-1/4 Hex Capscrew

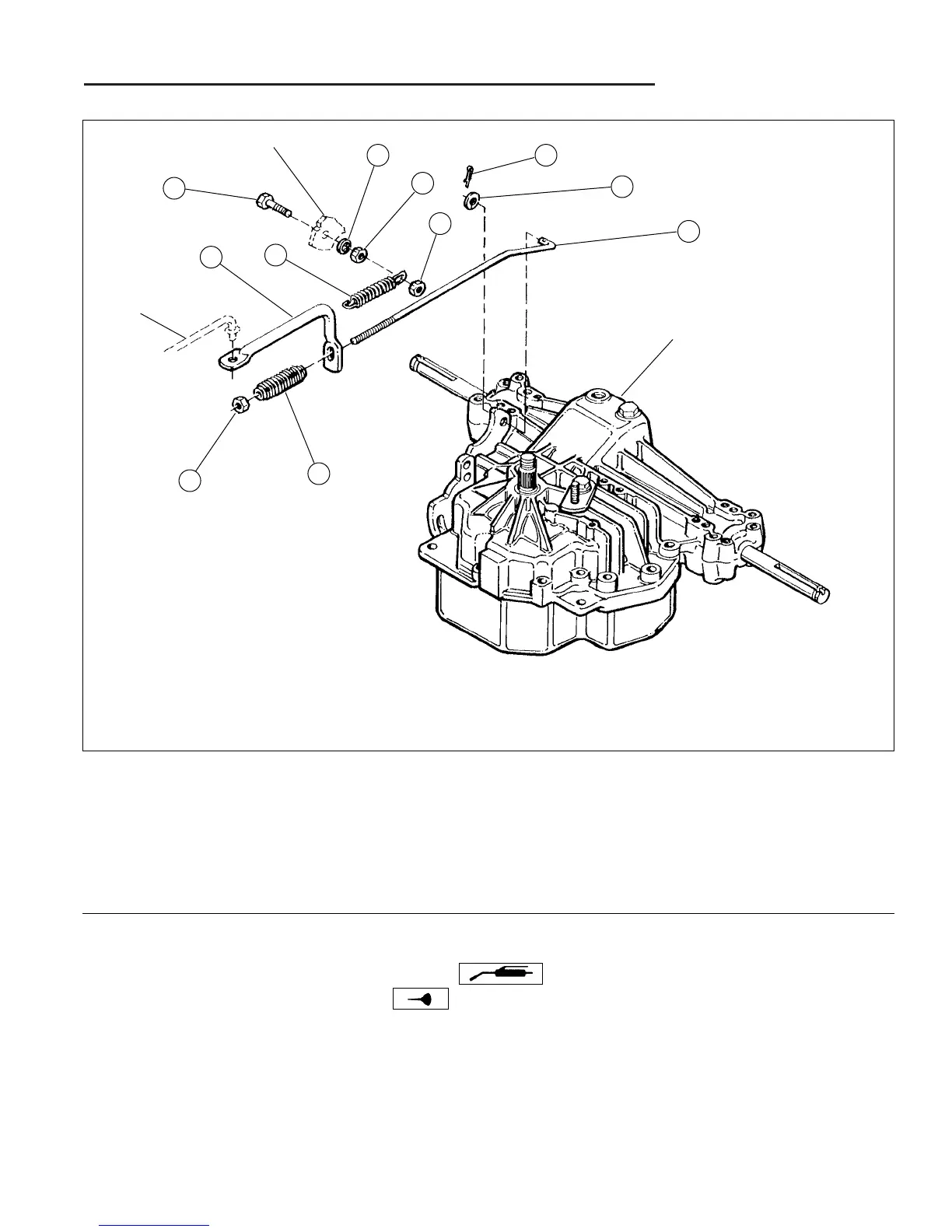

Figure C–29. Broadmoor Hydro Foot Control - Transmission Model Hydro-Gear 0750 / 0800 Brake Linkage
Parts
H
G
K
A
B
C
D
E
I
J
F
Unit Side Frame
Transmission
Clutch Rod
NOTES:
1. Unless specified, use torque specifications shown on standard hardware torque specification chart.
2. Grease locations indicated by grease gun symbol:
3. Oil locations indicated by oil can symbol:
