6 General Repair
6D Hood, Dash, & Grill Repair
6 - 52
3. Using needle-nose pliers, remove the clip (A, Figure
D–4) on each of the hood pivot points.
4. Slide out and remove the hood pivot spacer (B) from
each of the hood hinges.
5. Lift the hood off of the tractor.
6. For hood installation, perform Steps 1 through 5 in
reverse order.

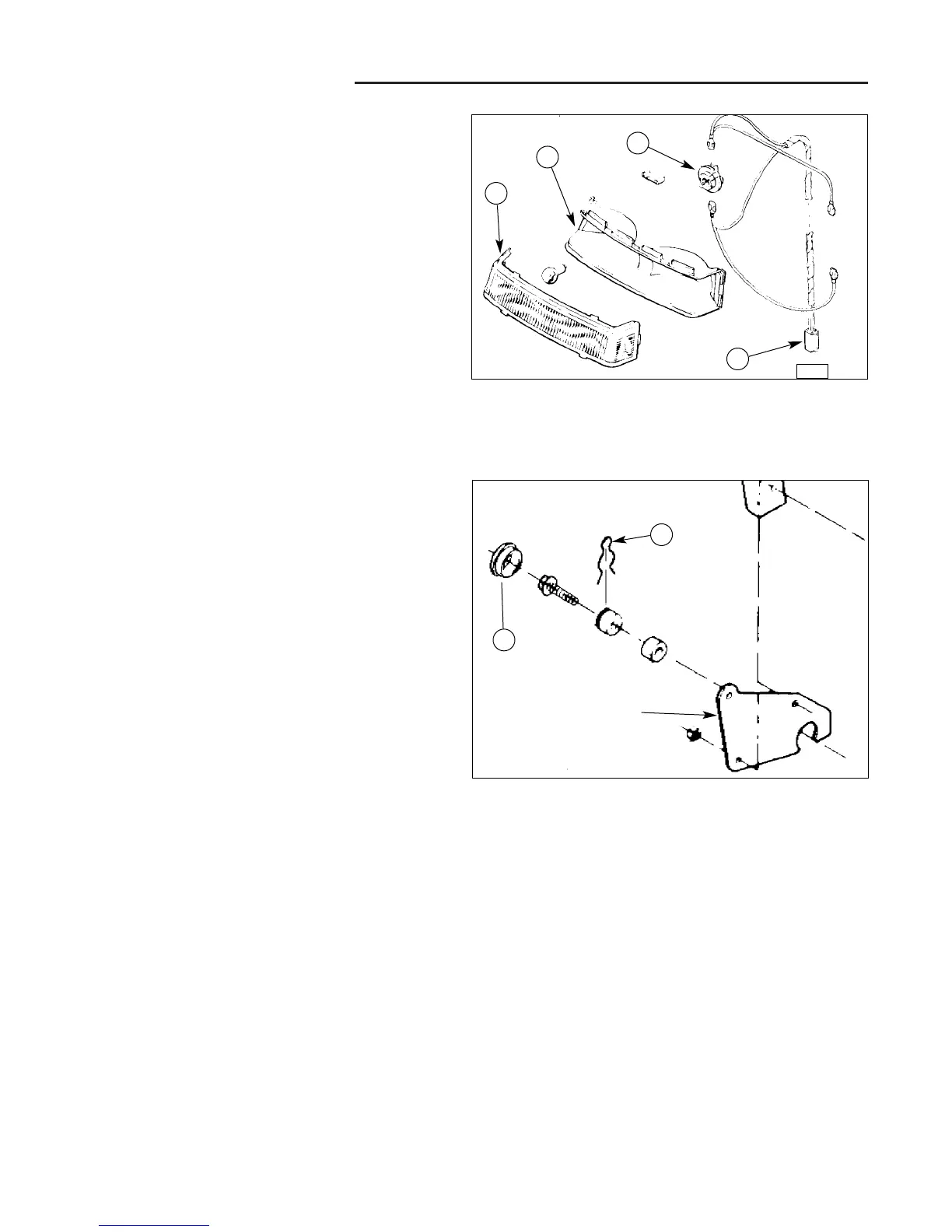

Figure D–4. Hood Hinge Assembly
A. Clip
B. Pivot Spacer
Hood Hinge
2. Disconnect the headlight wire harness at the two pin
connector (D, Figure D–3) located near the oil fill tube
on the right side of the engine. Thread the wire har-
ness out through the engine lift bracket and remove it
from the speed clip attaching the harness to the
hood.
Figure D–3. Headlight Assembly
B
C
A
D
A. Lens
B. Bezel
C. Bulb Socket
D. Pin Connector
A
B
