7 - 31
7 Transmission Repair
7B Eaton 750 / 751

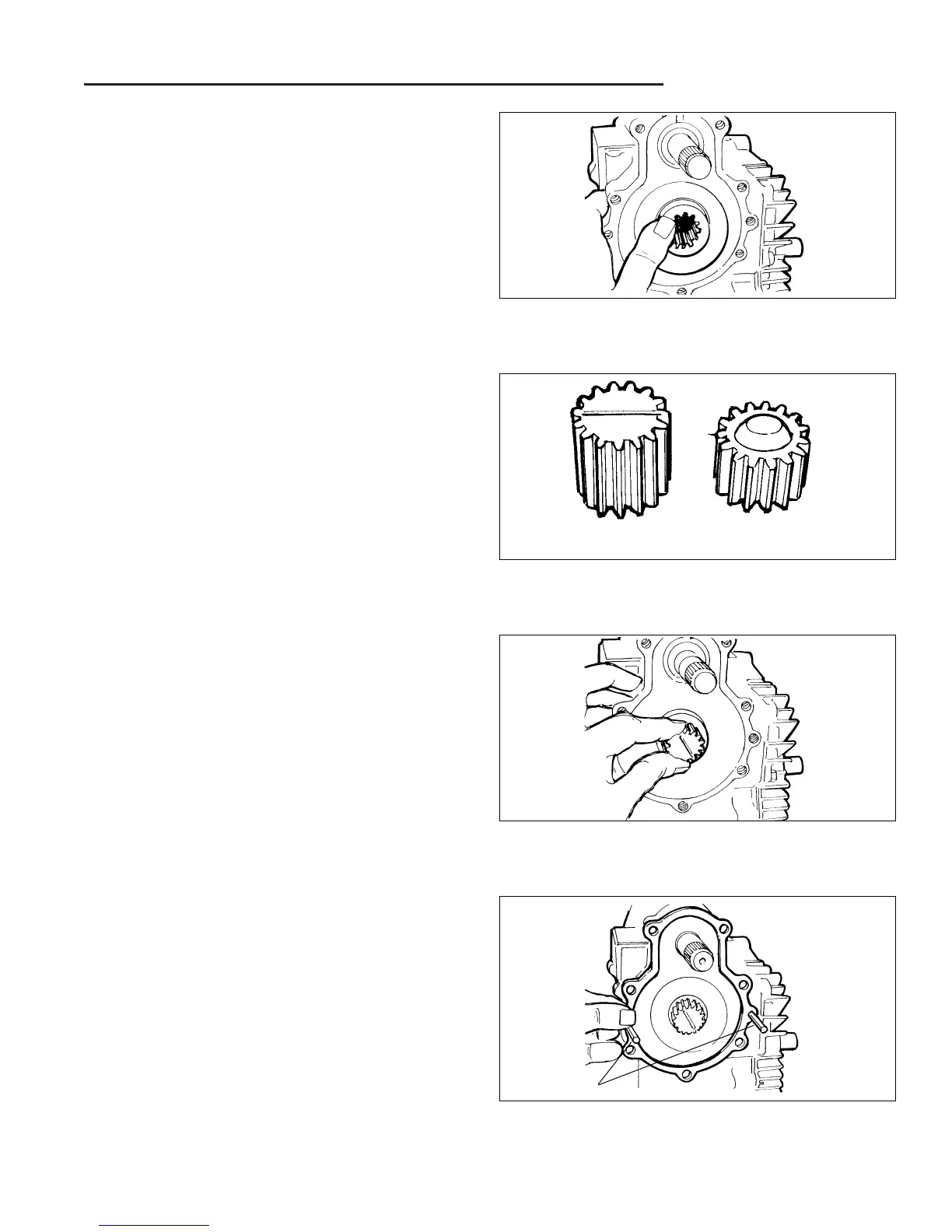

Figure B–77. Install Motor Rotor Assembly
6. Carefully install the motor rotor assembly onto the
motor journal inside the transaxle housing.
NOTE: If a rubber band was used to retain the ball pis-
tons, remove it at this time.
Figure B–78. First and Second Sun Gears
7. The first sun gear is longer than the second sun gear.
First Sun Gear Second Sun Gear
Figure B–79. First Sun Gear Installation
8. Install the first sun gear into the motor rotor assem-
bly.
Figure B–80. Dowel Pins and Gasket Installation
9. Install the two dowel pins and the gasket on the
transaxle housing.
NOTE: There are three identical gaskets used on the
transaxle housing.
Dowel Pins
