7 Transmission Repair
7B Eaton 750 / 751
7 - 40
7. Hook one end of the brake return spring onto the
brake rod, and the other end onto the double nut cap-
screw in the left rear corner of the frame.
8. Connect the neutral return rod into the neutral return
cam and secure with a cotter pin.
9. Hook the drive spring between the idler pivot and the
front transmission support.
10.Assemble the shift rod to the speed control lever.
Leave the hardware loose for the neutral adjustment
to be performed later.
11. Connect the bypass valve lever to the bypass valve
shaft.
12. Install the oil intake hose on the intake fitting located
on the front right of the transaxle and secure with a
hose clamp.
13. Purge the air from the transaxle. Refer to Section 2,
“Purging Air From Transaxle”.
14.Check for proper neutral adjustment. Refer to
Section 2, “Neutral Adjustments”.
15. Check the brake adjustment. With the foot pedal in
the up position, turn the adjusting nut in until it just
contacts the brake rod spring without compressing it.
Refer to Section 2C, Figure 2C-38, for reference.
16.Check the hydro oil level. Oil should be up to the
“cold full” line approximately 1/4” from the bottom of
the reservoir. Top off as needed using a good grade
of SAE 30 weight engine oil. Run the transmission for
a while to test and recheck the oil level.
17. Test drive the tractor to assure proper function of the
transmission and all safety devices.

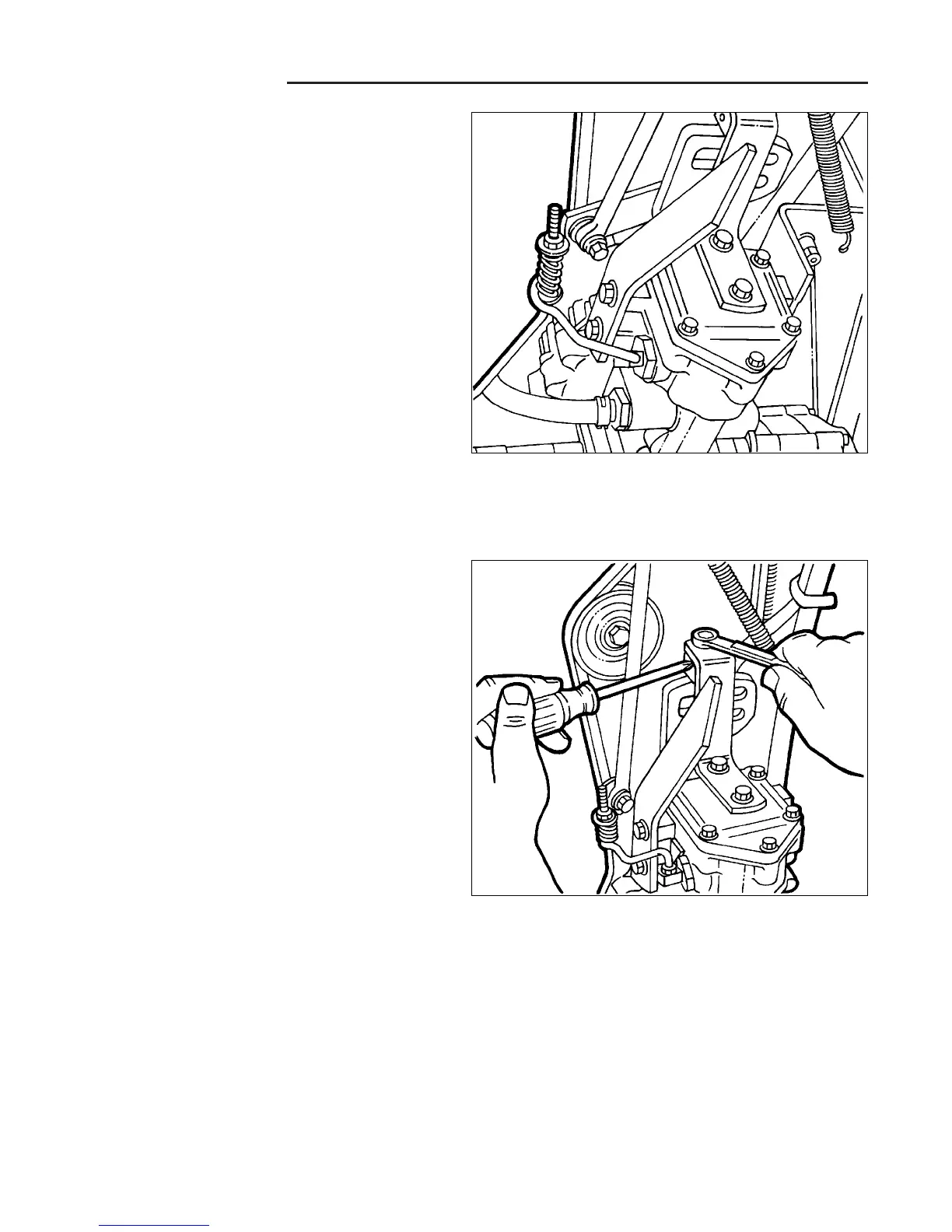

Figure B–105 Adjusting Neutral Position
