4 Adjustments
Return-to Neutral - Hydro-Gear
4 - 4

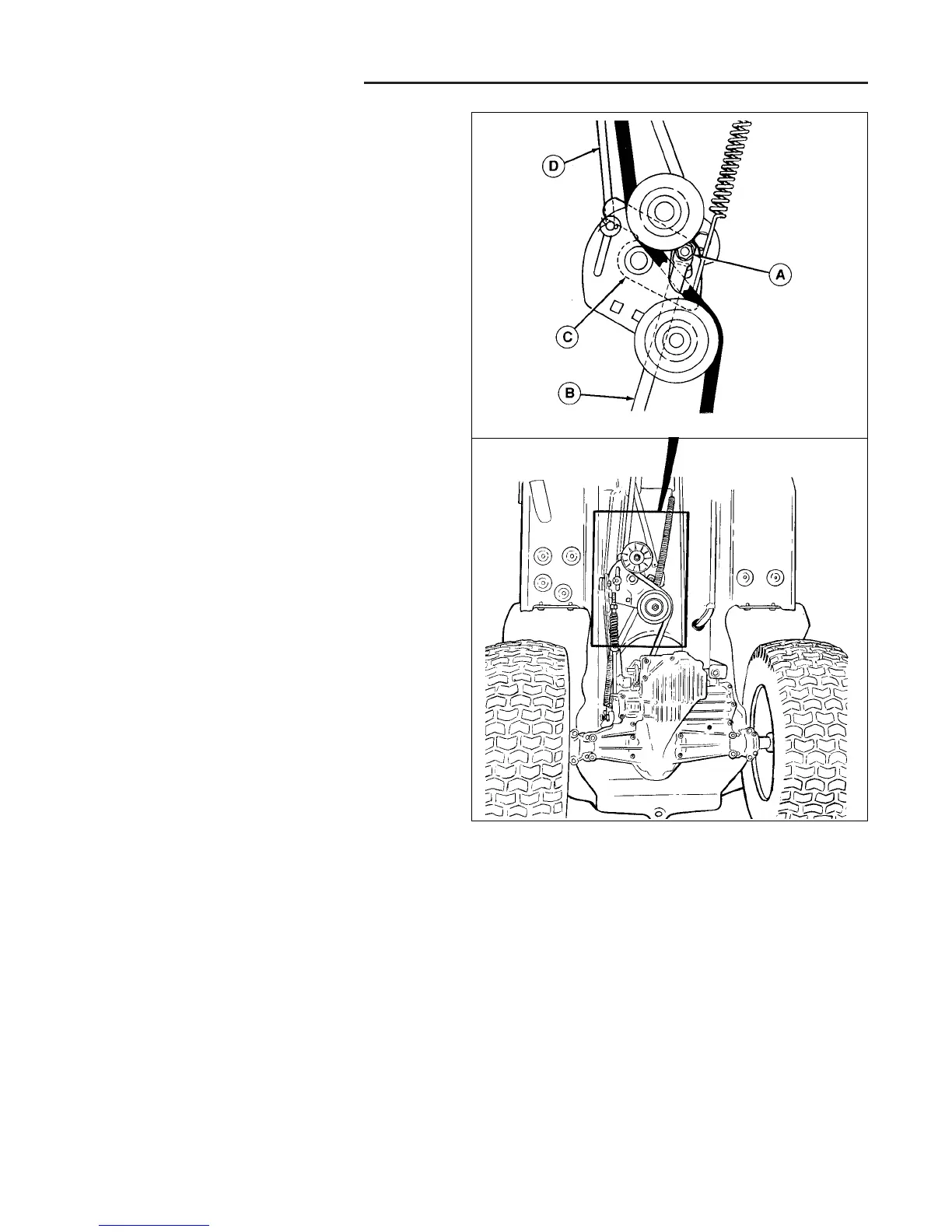

Figure 4. Return-to-Neutral Adjustment
A. Nut
B. Rear Shift Rod
C. Return-to-Neutral Cam
D. Front Clutch Rod
RETURN-TO-NEUTRAL ADJUSTMENT
Broadmoor (Hydro-Gear 311-0750 & 0800
Transaxle Models)
Perform the following adjustment if the shift lever does
not return to the neutral gate when the clutch/brake
pedal is fully depressed.
1. Make sure the Neutral Adjustment is correct (refer to
preceding paragraph).
2. Loosen the nut (A, Figure 4) that secures the rear
shift rod (B) to the return-to-neutral cam (C).
3. Hold the clutch/brake pedal fully down against the
right footrest. Pedal can be clamped in this position
with large C-clamp if required. Do not apply parking
brake as pedal will not be held against footrest with-
out free play.
4. Rotate the return-to-neutral cam (C) securely against
the front clutch rod (D). There should be no gap
between the clutch rod and cam.
5. Tighten nut (A) with pedal held down against footrest.
6. Start tractor and check return-to-neutral operation.
With pedal released, a small amount of travel in the
shift lever may be required to fully stop tractor.
