Work prole setup | AP70/AP80 Operator Manual
When the vessel has a constant heading error due to external forces such as wind and current,
the Auto trim function corrects for this by building up a constant rudder offset.
The Auto trim value is reset every time the AUTO mode is entered or when a course change
greater than approximately 20° is made.
Auto trim is automatically disabled during a turn.
• Range: 10 - 800 sec
• Default: Depends on the vessel length
O heading limit
Sets the limit for the off heading alarm.
An alarm occurs when the actual heading deviates from the set heading more than the
selected limit.
• Range: 5° - 35°
• Default: 10°
Low speed limit
Sets the limit for the low vessel speed alarm.
An alarm occurs when the vessel’s speed goes below the selected limit.
• Range: 1 - 20 (kn)
• Default: 1 (kn)

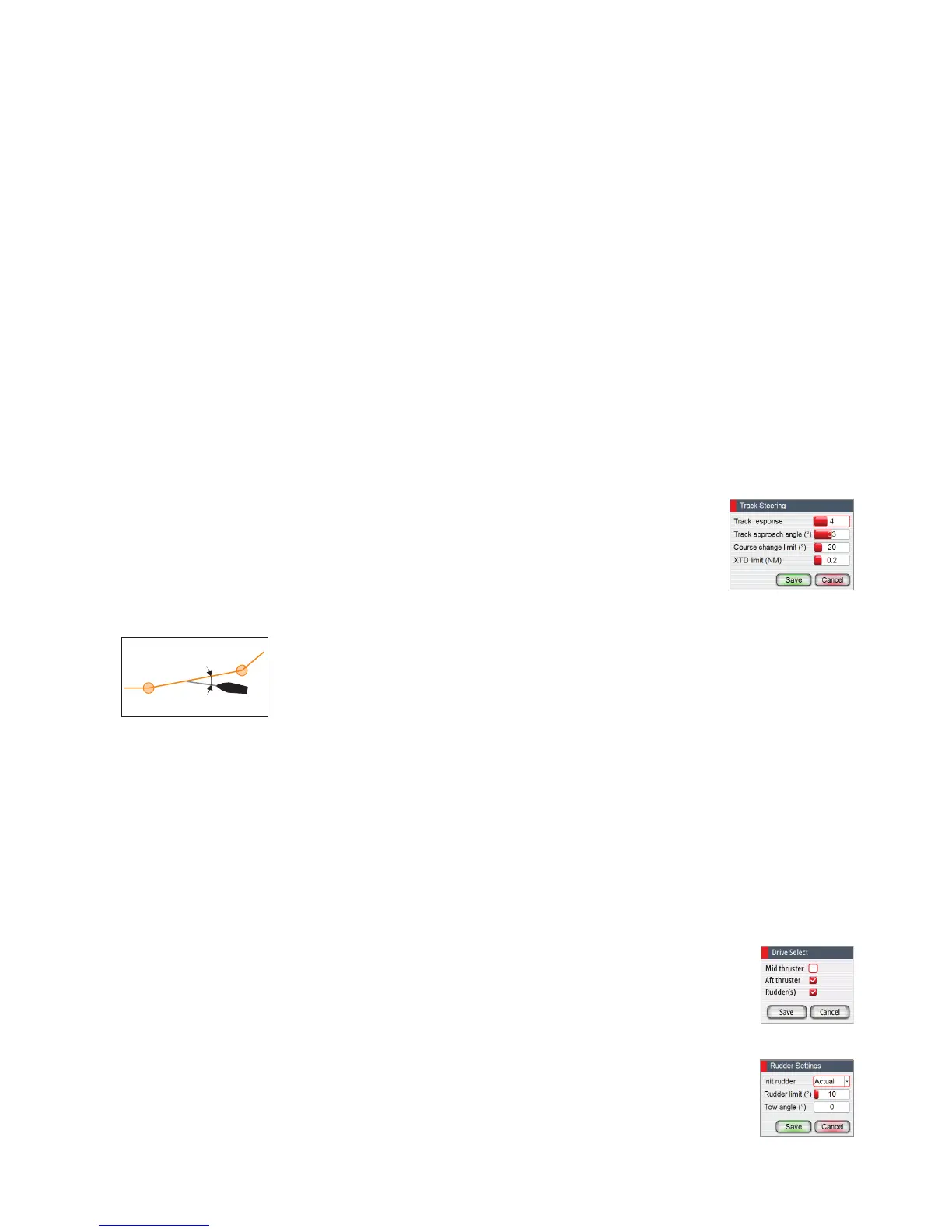

Nav/Track steering
Track response
Defines how fast the autopilot shall respond after having registered a
cross track distance.
• Range: 1 - 9
• Default: 4
Track approach angle
Defines the angle used when the vessel is approaching a leg.
This setting is used both when you start navigating and when you use track offset.
• Range: 5° - 60°
• Default: 30°
Course change limit (Not applicable for ECDIS Track steering)
Defines the limits for course change to next waypoint in a route. If the course change is more
than this set limit, you are prompted to verify that the upcoming course change is acceptable.
• Rang: OFF / 10° - 90°
• Default: 30°
XTD limit
Defines the vessel’s accepted offset distance from the track. If the vessel goes beyond this
limit an alarm will be activated.
• Range: 1 (m) - 1 (NM)
• Default: 50 (m)
Drive select
Defines which drives that shall be used for the selected work profile.
Rudder
Init rudder
Defines how the system moves the rudder when switching from power
steering to an automatic mode:
- Midships moves the rudder to zero position.
- Actual maintains the rudder offset, and use this as trim value (bumpless transfer)
