Simrad AP80 User Manual

| 59
System conguration | AP70/AP80 Operator Manual

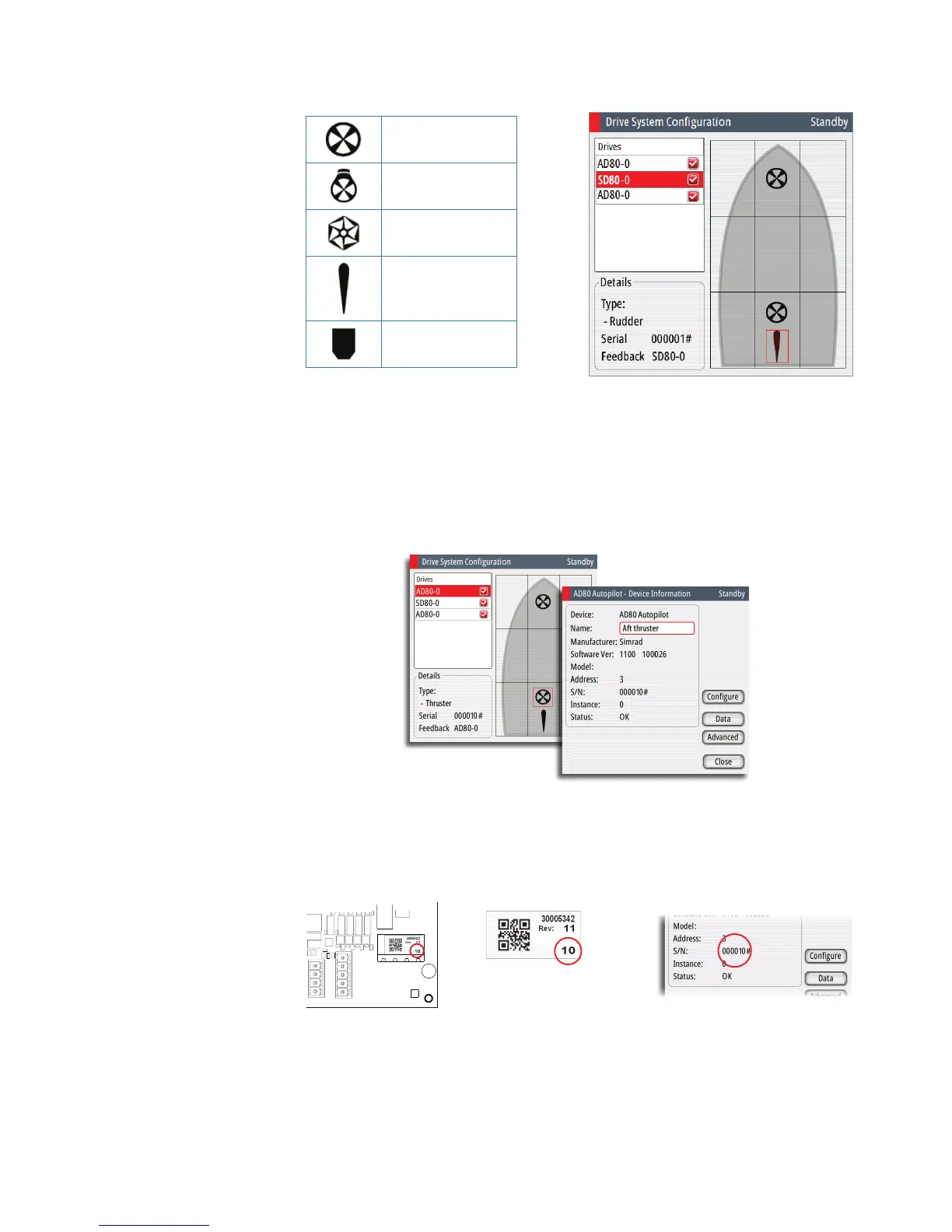

The following symbols are used to illustrate drive type:
Tunnel thruster
Azimuth
Voith Schneider
Rudder
WaterJet
The figure shows a completed commissioning for a vessel with one rudder driven by an SD80
board, one solenoid operated tunnel thruster and one analog tunnel thruster operated by
two different AD80 boards.
Conguring the drive system
The drive system configuration is accessed from the drive system configuration dialog.
1. Select the drive to be configured, and press the rotary knob or the MENU key to proceed to
the device information dialog
2. Enter a descriptive name for the device (e.g. Aft thruster)
- If two identical boards are used, they are identified by the serial number. This number is
found in the device information dialog on a tag on the SimNet plug on the board
¼ Note: The label below is an example only and varies with board type.
AD80
AD80
