CR40/42/50 MKII Installation manual Chapter 9
146

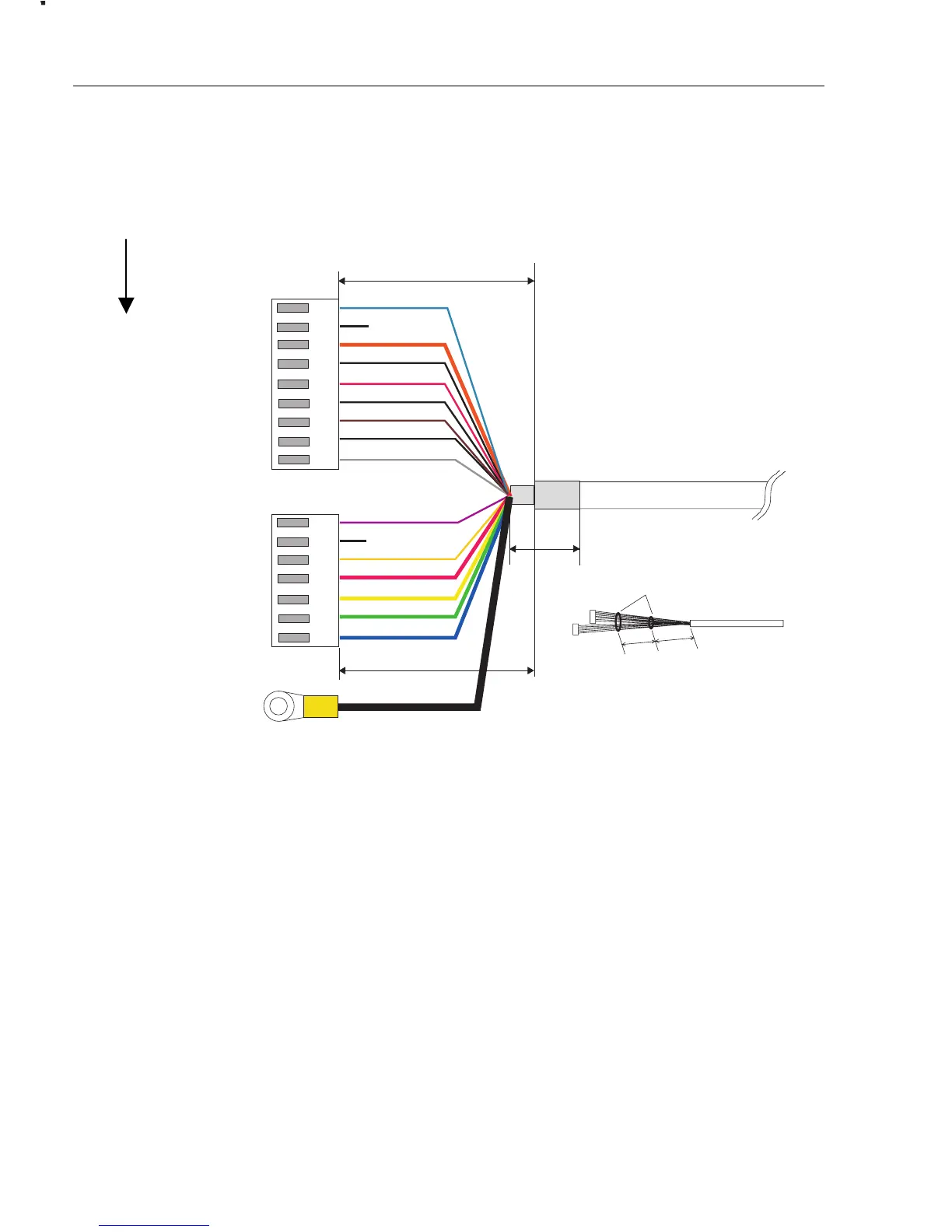

Connector for the RB716A Radar antenna
Alternative colors:
Pin 4: Green
Pin 5: Red
Pin 6: White
Pin 7: Brown
35mm
310mm
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
9
Violet
Blue
Not connected
Not connected
Yellow
Orange thick
Red thick
Red shield
Yellow thick
Red center
Green thick
Brown shield
Blue thick
Brown center
Coax shield
Coax center
JST no. VHR-9N
Anritsu radar cable
JST no. VHR-7N
270mm
80mm of main shield
with shrinking flex
terminal
6.3mm
secure with 2 small clips
100mm
100mm
Note:
Do not cover red and brown shield
with flex.
