CR40/42/50 MKII Position menus Chapter 4
40
S 6.2
kn
V 4.8
kn
W 2.2
kn
[kn] 13:49 14:04 14:19
10
8
6
4
2
0
SD: S *.*kn T***° R***° WIND:*.*ms ***°R

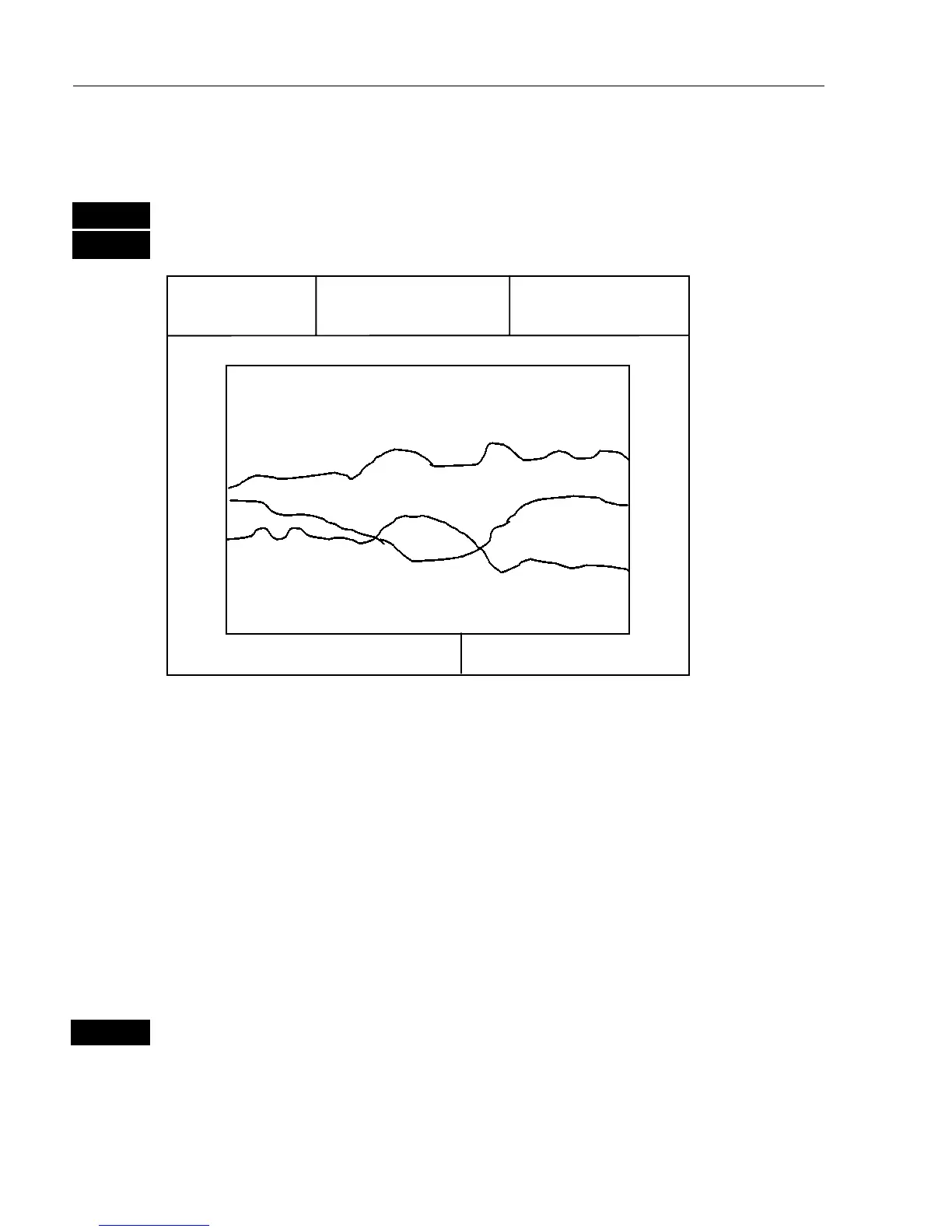

4.3 Speed diagram
MENU
Call up the menu bar, and…
2,3
load “Speed diagram”
S= Speed over ground.
V= Velocity towards waypoint.
W= Speed through water.
SD (Set and drift)*= Speed and direction, true or relative.
WIND*= Speed and direction.
* Connection to external sensors is required.
ENT
Call “Speed diagram setup”
- see next page
