CR40/42/50 MKII Chart menus and INFO windows Chapter 3
18
d 231° 16.3kn 26°46.020N 56°29.107W
Cat Fish Bay
The top line of the chart display (with cursor off) will give you ship’s
position, speed, course and status of differential data – refer to section
4.1 Status indicator and accuracy.
With cursor on, the top line will show the cursor position in lat/long,
bearing and distance from actual position to cursor position.

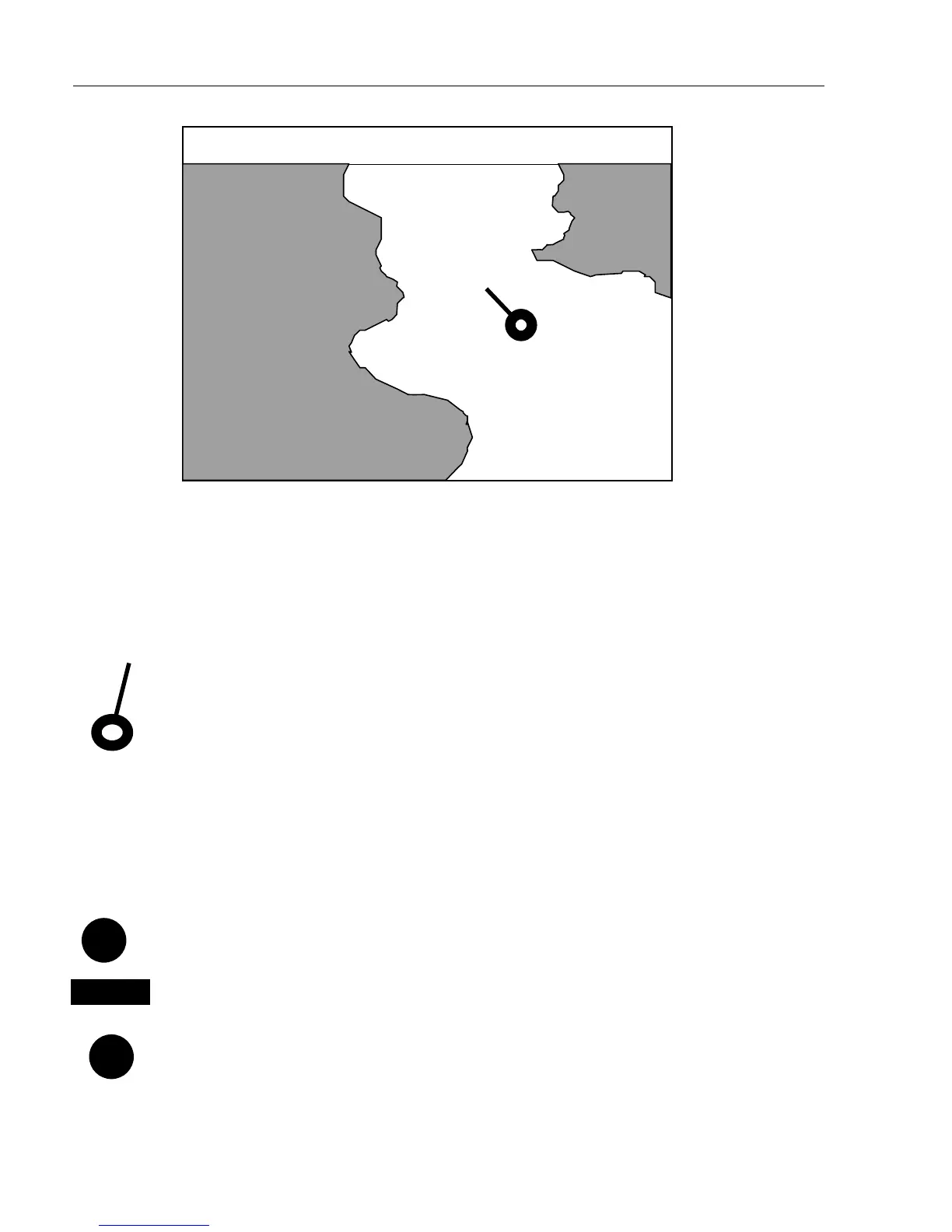

The ship symbol indicates the present position on the chart and the
pointer informs of the actual true course (course over ground). There is
a built-in autohome function which automatically moves the chart to
maintain the ship symbol in the display (with cursor off).
) Press
[ENT], [0]
to center the ship on the chart.
Cursor function
With chart display active, press the cursor key to activate the cursor
and…
CLR
Press
[CLR]
to turn the cursor off.
Use the cursor key to move cursor in any direction on the screen – the
chart will automatically adjust when cursor reaches the edge of the
screen.
) Press
[0]
to center the cursor on the chart.
Chart
scale
indicator
can be set
ON/OFF
in “Chart
setup”.
