TECHNICAL SPECIFICATIONS
5 TECHNICAL SPECIFICATIONS
5.1 Cabling

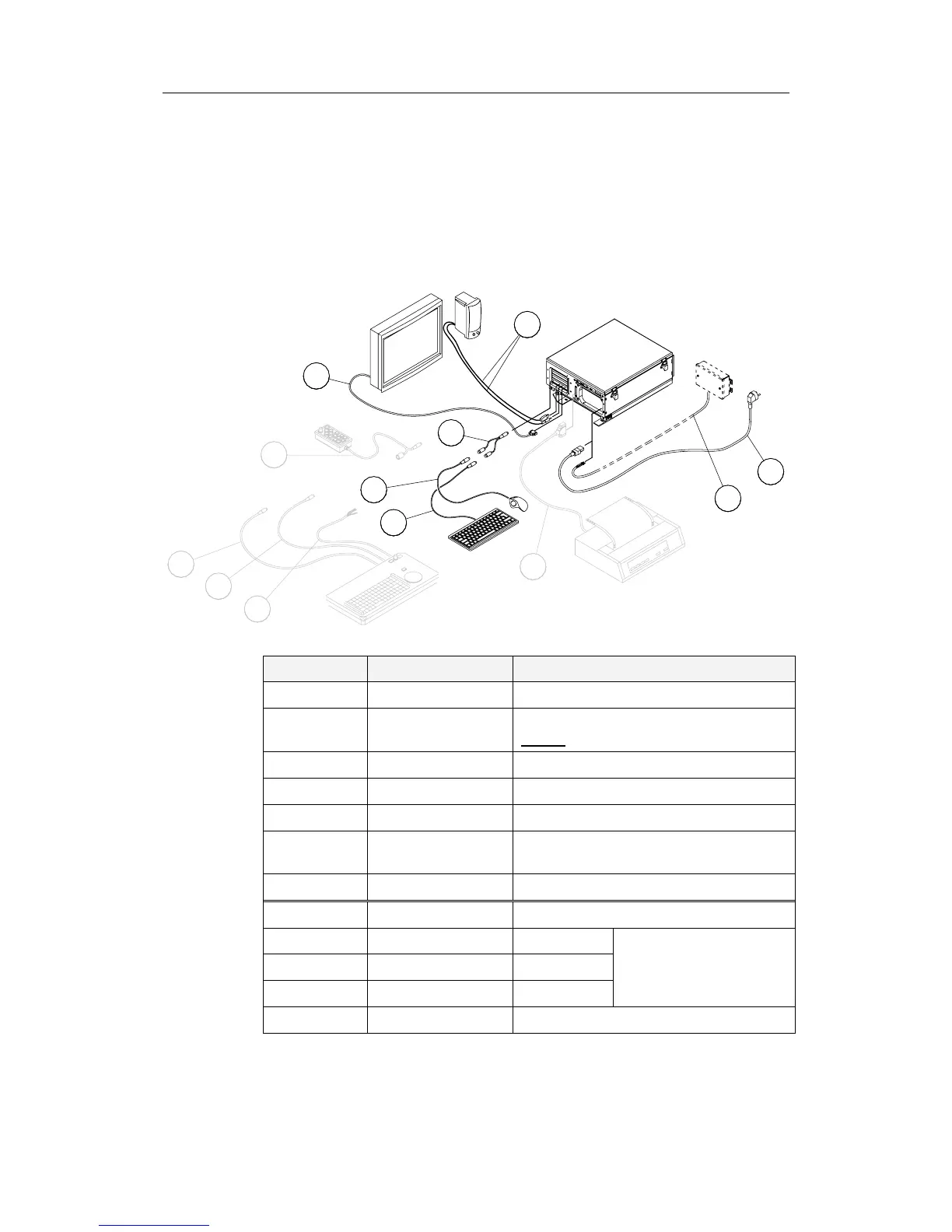

Cable length for standard and optional units in the CS66 4-
channels system is shown on the figure below.
7
6
1
2
5
3
4
8
9
10
11
12
CABLE NO. CABLE LENGTH DESCRIPTION
1 2 m Power cable (115/230V AC)
2 0.8 m
Part of FB200 (Option)
NOTE:
Only used for 24V systems
3 1.6 m Part of Cherry keyboard
4 1.8 m Part of Logitech TrackMan wheel
5 0.2 Splitter cable
6 -
Supplied with monitor
(2m if the monitor is supplied by Simrad
7 1.8 m Supplied with speaker
8 - Ordered from printer supplier
9 5.0 m (System)
10 1.5 m (Keyboard)
11 1.7 m (Mouse)
Part of COP20/COP30
12 5 m Part of COP10
20221867 / F 29
