Simrad NSS12 Installation Guide

|
35
NMEA2000 / SimNet | NSS Installation Manual

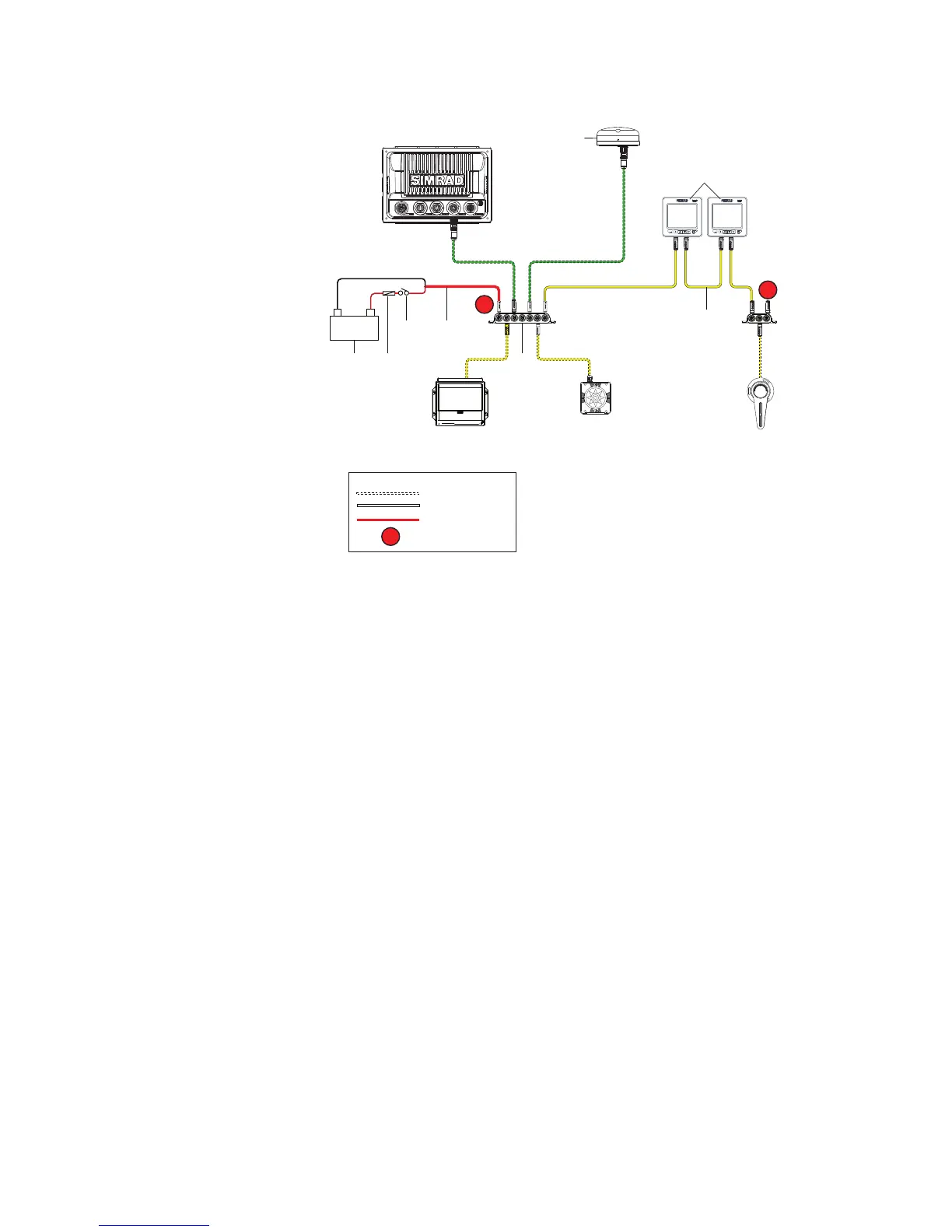

In the slightly larger system below, power is connected at one end using termi-
nated power cable, and a second terminator is required at the end of the backbone.
+
_
12 V DC
MenuMenu
SimNet backbone
SimNet power
SimNet terminator
SimNet drop cable
T
T
T
1
8
5
4
3
2
6
7
1 SimNet power source. Stable 12 V DC only
2 5 Amp fuse or breaker
3 Switch
4 SimNet power cable with termination (red disc) (24005902)
5 SimNet 7 way joiner
6 SimNet or NMEA 2000 GPS antenna
7 SimNet backbone daisy chained using instruments with two SimNet ports.
8 SimNet backbone
