Singer 288 - Removing and Replacing Bobbin Case

Singer
288
61

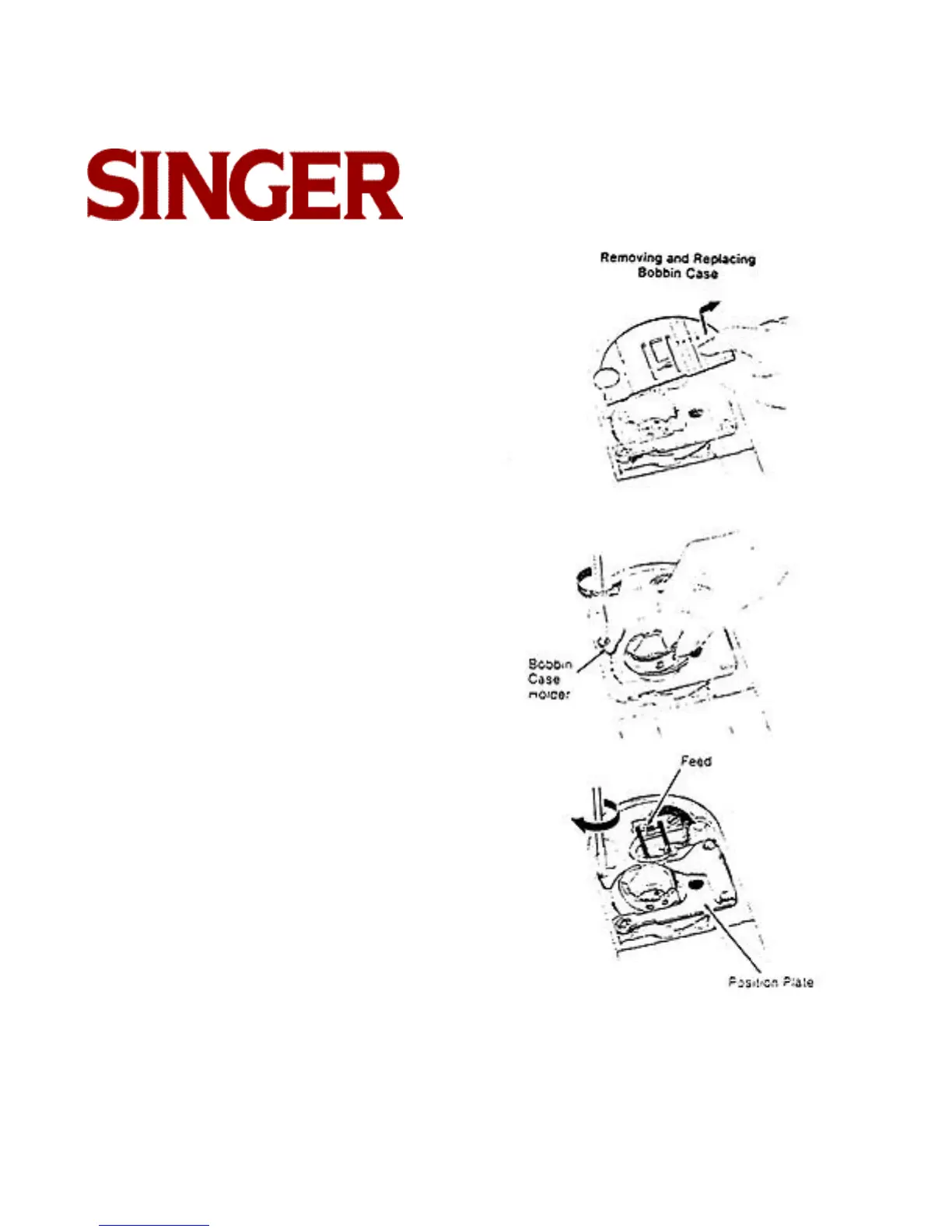

Removing and Replacing Bobbin Case
1. Turn hand Wheel toward you to raise needle to its
highest position.
2. Open slide plate, remove needle plate and remove
bobbin.
3. Insert Screwdriver into bobbin case hold down and
turn it toward the rear as illustrated.
4. To remove bobbin case;
• Push bobbin case toward the rear and lift it up and
out toward the front
5. To replace bobbin case:
• Guide forked end under the feed. Draw bobbin
case toward you so that front of case is under the
position plate as illustrated.
• Turn the bobbin case hold down toward you to
lock bobbin case in position.
6. Replace bobbin, needle plate and close slide plate.
