Singer 288 - Adjusting Bobbin Winder; Adjusting Motor Belt Tension

Singer
288
65

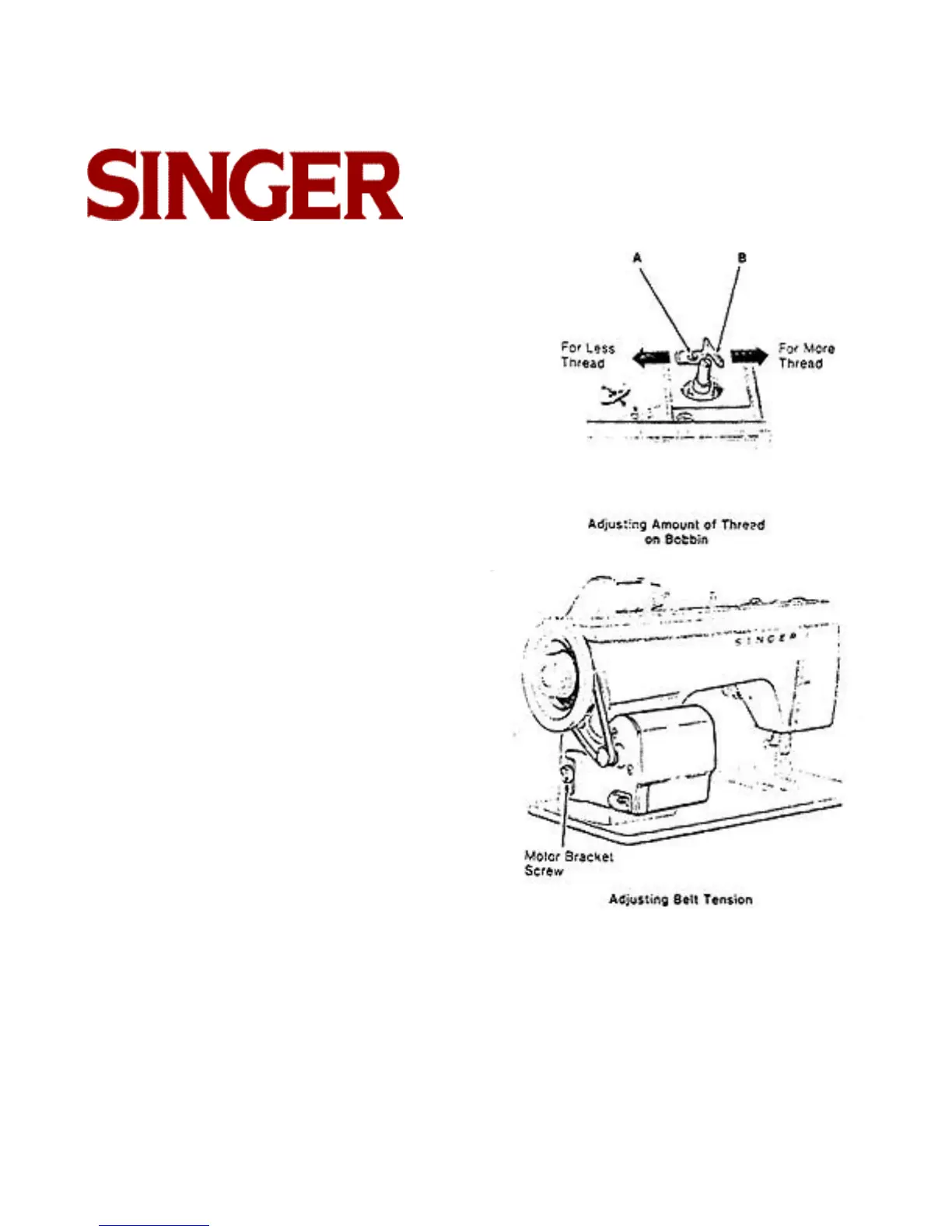

ADJUSTING BOBBIN WINDER
If there is too much thread on the bobbin:
• Loosen stop latch screw A.
• Slide latch B to the left for less thread on bobbin.
• Tighten stop latch screw.
If there is not enough thread on the bobbin:
• Loosen stop latch screw A.
• Slide latch B to the right for more thread on bobbin.
• Tighten stop latch screw.
ADJUSTING MOTOR BELT TENSION
Tension on the motor belt should be just sufficient to
keep the belt from slipping. If the motor belt needs
adjustment::
• Loosen motor bracket screw a full turn.
• To increase belt tension, lower the motor bracket.
• To decrease belt tension, raise the motor bracket.
• Tighten motor bracket screw.
