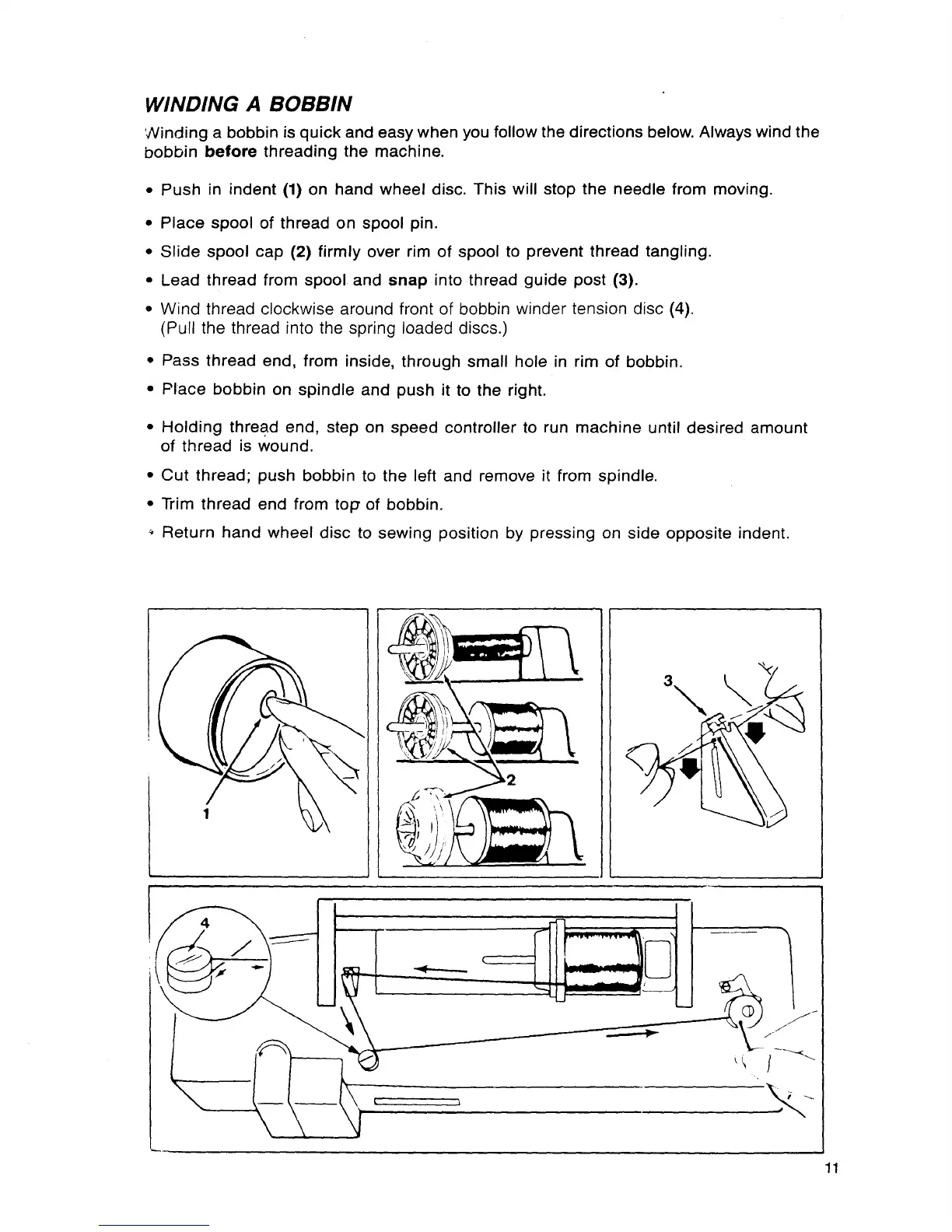

WINDING A BOBBIN
VVinding a bobbin is quick and easy when you follow the directions below. Always wind the
bobbin before threading the machine.
• Push in indent (1) on hand wheel disc. This will stop the needle from moving.
• Place spool of thread on spool pin.
• Slide spool cap (2) firmly over rim of spool to prevent thread tangling.
• Lead thread from spool and snap into thread guide post (3).
• Wind thread clockwise around front of bobbin winder tension disc (4).
(Pull the thread into the spring loaded discs.)
• Pass thread end, from inside, through small hole in rim of bobbin.
• Place bobbin on spindle and push it to the right.
• Holding thread end, step on speed controller to run machine until desired amount
of thread is wound.
• Cut thread; push bobbin to the left and remove it from spindle.
• Trim thread end from top" of bobbin.
Return hand wheel disc to sewing position by pressing on side opposite indent.
