Singer 93234 - REPLACING PRESSER FOOT WITH SHANK; ATTACHING THE FEED COVER

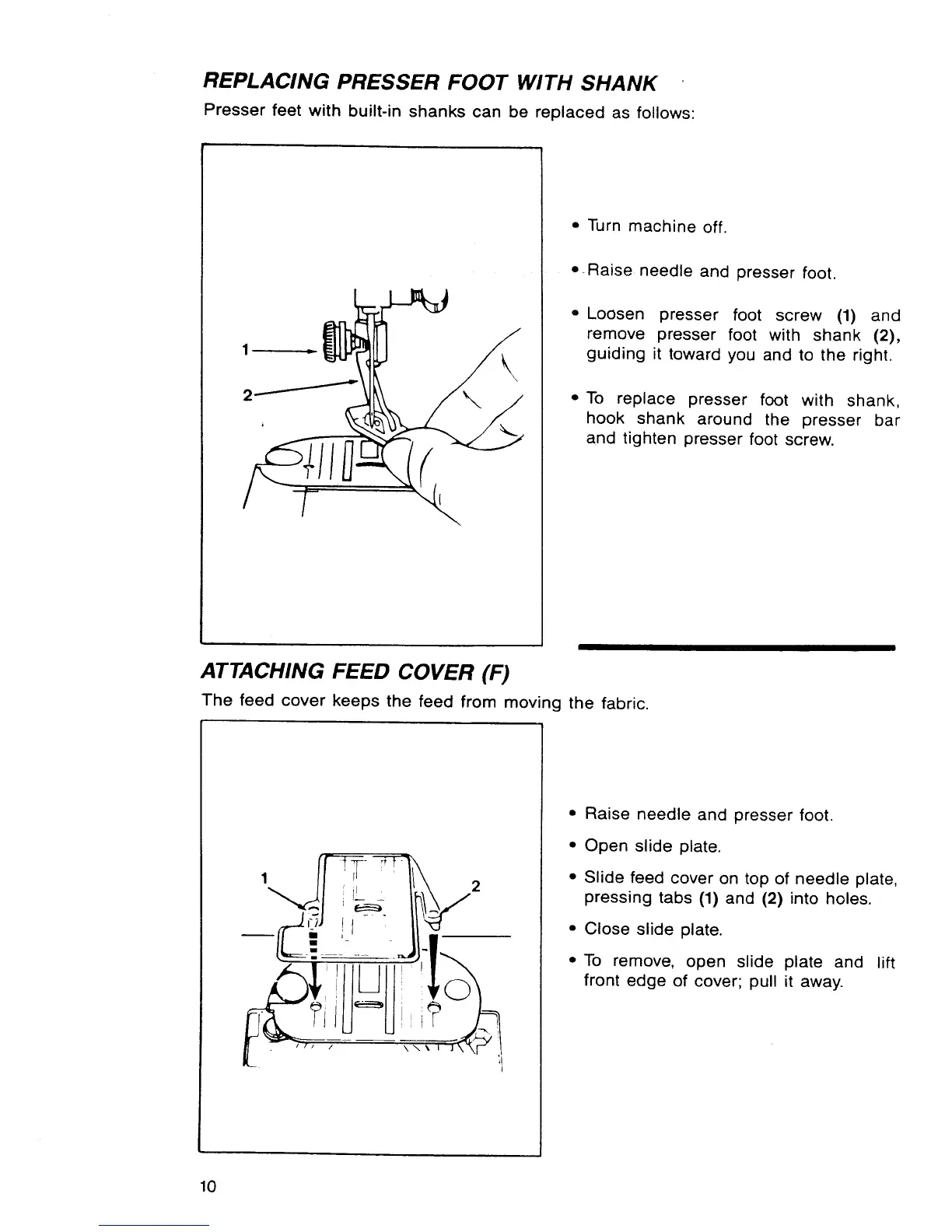

REPLACING PRESSER FOOT WITH SHANK
Presser feet with built-in shanks can be replaced as follows:
2--J-'-_"
\
• Turn machine off.
• -Raise needle and presser foot.
• Loosen presser foot screw (1) and
remove presser foot with shank (2),
guiding it toward you and to the right.
• To replace presser foot with shank,
hook shank around the presser bar
and tighten presser foot screw.
ATTACHING FEED COVER (F)
The feed cover keeps the feed from moving the fabric.
• Raise needle and presser foot.
• Open slide plate.
• Slide feed cover on top of needle plate,
pressing tabs (1) and (2) into holes.
• Close slide plate.
• To remove, open slide plate and lift
front edge of cover; pull it away.
10
