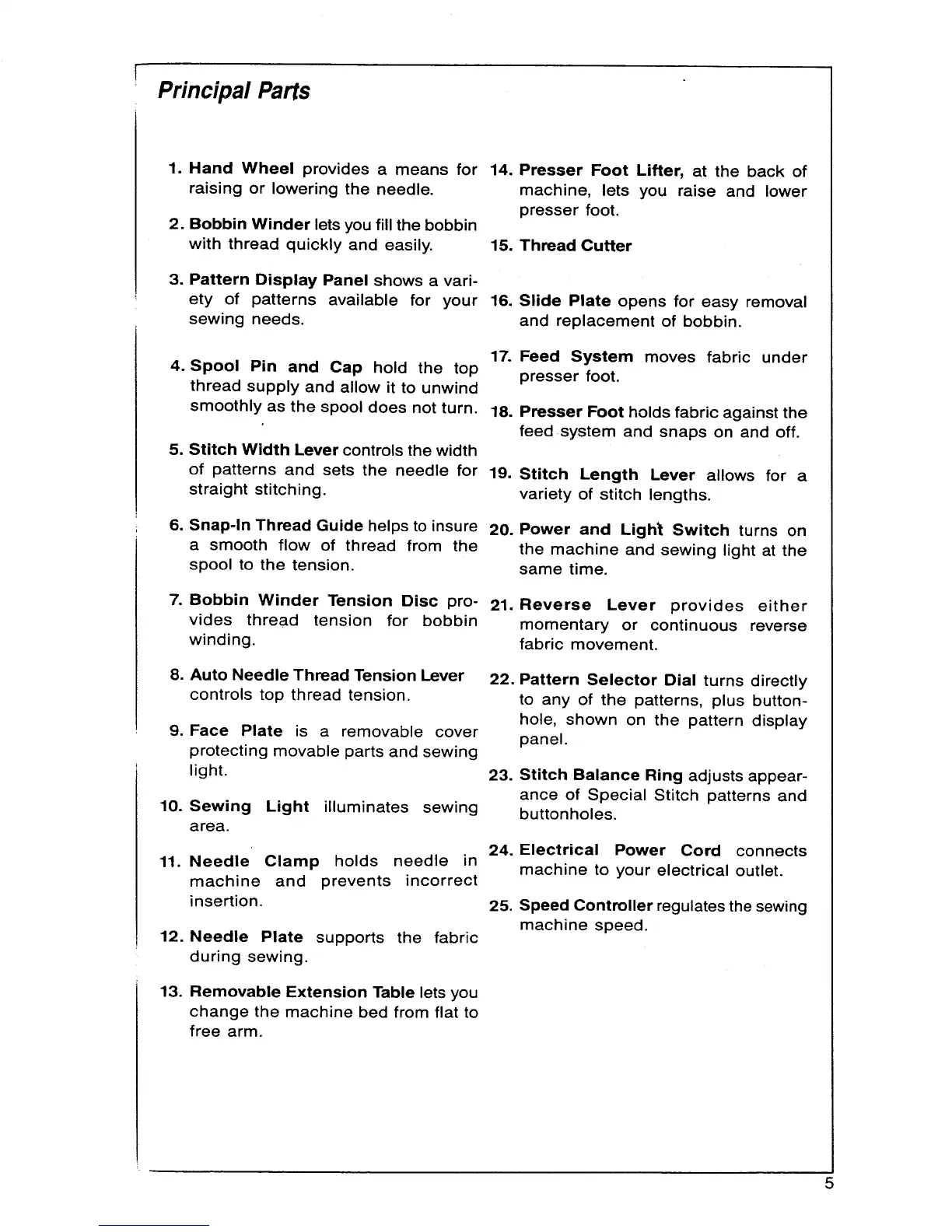

Principal Parts
1. Hand Wheel provides a means for
raising or lowering the needle.
2. Bobbin Winder lets you fill the bobbin
with thread quickly and easily.
3. Pattern Display Panel shows a vari-
ety of patterns available for your
sewing needs.
14. Presser Foot Lifter, at the back of
machine, lets you raise and lower
presser foot.
15. Thread Cutter
16.
4. Spool Pin and Cap hold the top
thread supply and allow it to unwind
smoothly as the spool does not turn. 18.
5. Stitch Width Lever controls the width
of patterns and sets the needle for 19.
straight stitching.
6. Snap-In Thread Guide helps to insure 20.
a smooth flow of thread from the
spool to the tension.
7. Bobbin Winder Tension Disc pro-
vides thread tension for bobbin
winding.
8. Auto Needle Thread Tension Lever
controls top thread tension.
9. Face Plate is a removable cover
protecting movable parts and sewing
light.
10. Sewing Light illuminates sewing
area.
11. Needle Clamp holds needle in
machine and prevents incorrect
insertion.
12. Needle Plate supports the fabric
during sewing.
13. Removable Extension Table lets you
change the machine bed from flat to
free arm.
Slide Plate opens for easy removal
and replacement of bobbin.
17. Feed System moves fabric under
presser foot.
Presser Foot holds fabric against the
feed system and snaps on and off.
Stitch Length Lever allows for a
variety of stitch lengths.
Power and Light Switch turns on
the machine and sewing light at the
same time.
21. Reverse Lever provides either
momentary or continuous reverse
fabric movement.
22. Pattern Selector Dial turns directly
to any of the patterns, plus button-
hole, shown on the pattern display
panel.
23. Stitch Balance Ring adjusts appear-
ance of Special Stitch patterns and
buttonholes.
24.
25.
Electrical Power Cord connects
machine to your electrical outlet.
Speed Controller regulates the sewing
machine speed.
