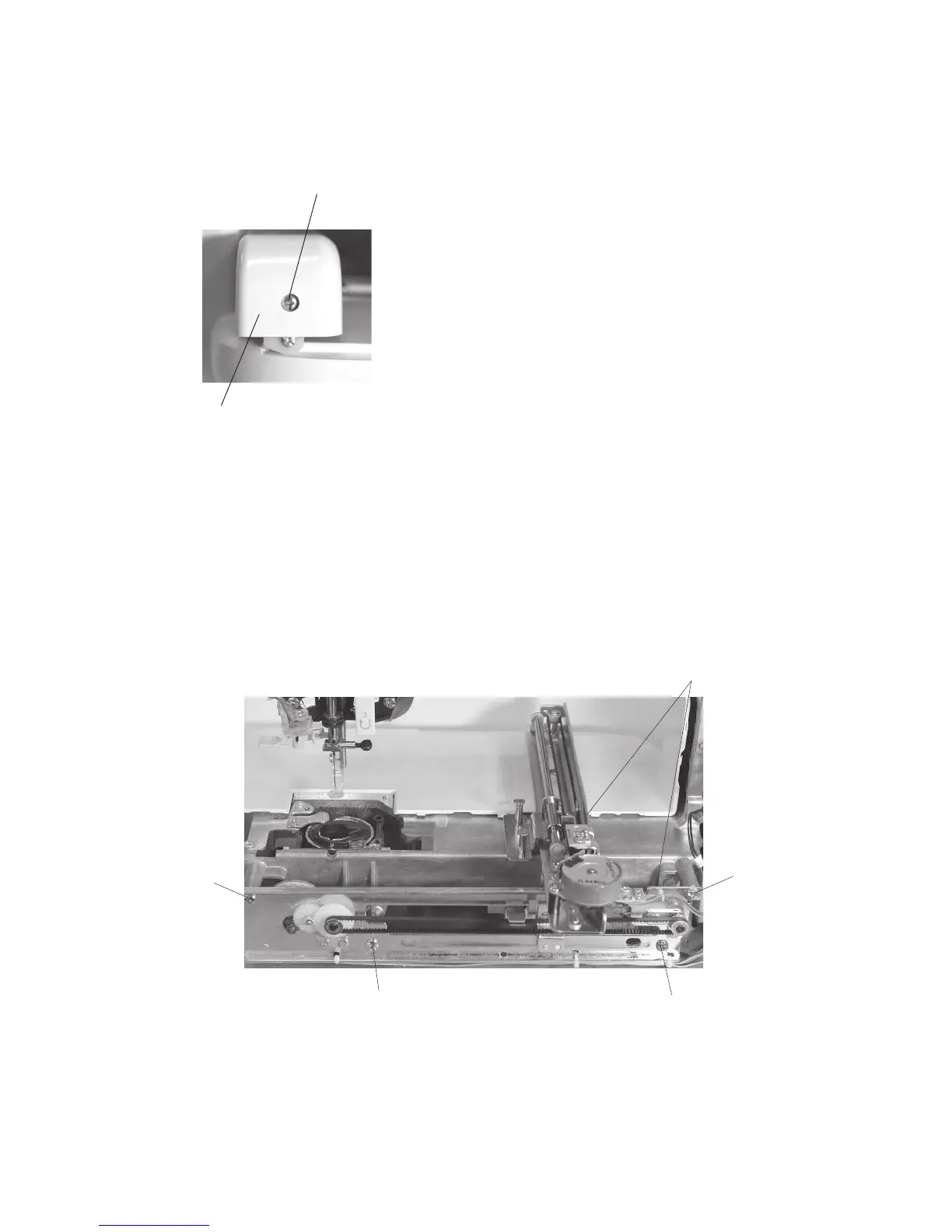

Replacing the Carriage Unit
To remove:
1. Remove the face cover, bed cover and front
cover.
2. Remove the setscrew (A) and remove the
carriage cover.
3. Remove the 4 setscrews (B) and remove the
carriage unit.
To attach:
4. Follow the above procedure in reverse.
NOTE:
Adjust the Y-carriage supporter.
5. Turn the power switch on to move the carriage to
the stored position, then turn the powers switch
off.
Setscrew (A)
Setscrew (B)
Carriage cover
Setscrew (B)
Setscrew (B)
Setscrew (B)
Carriage unit
