22

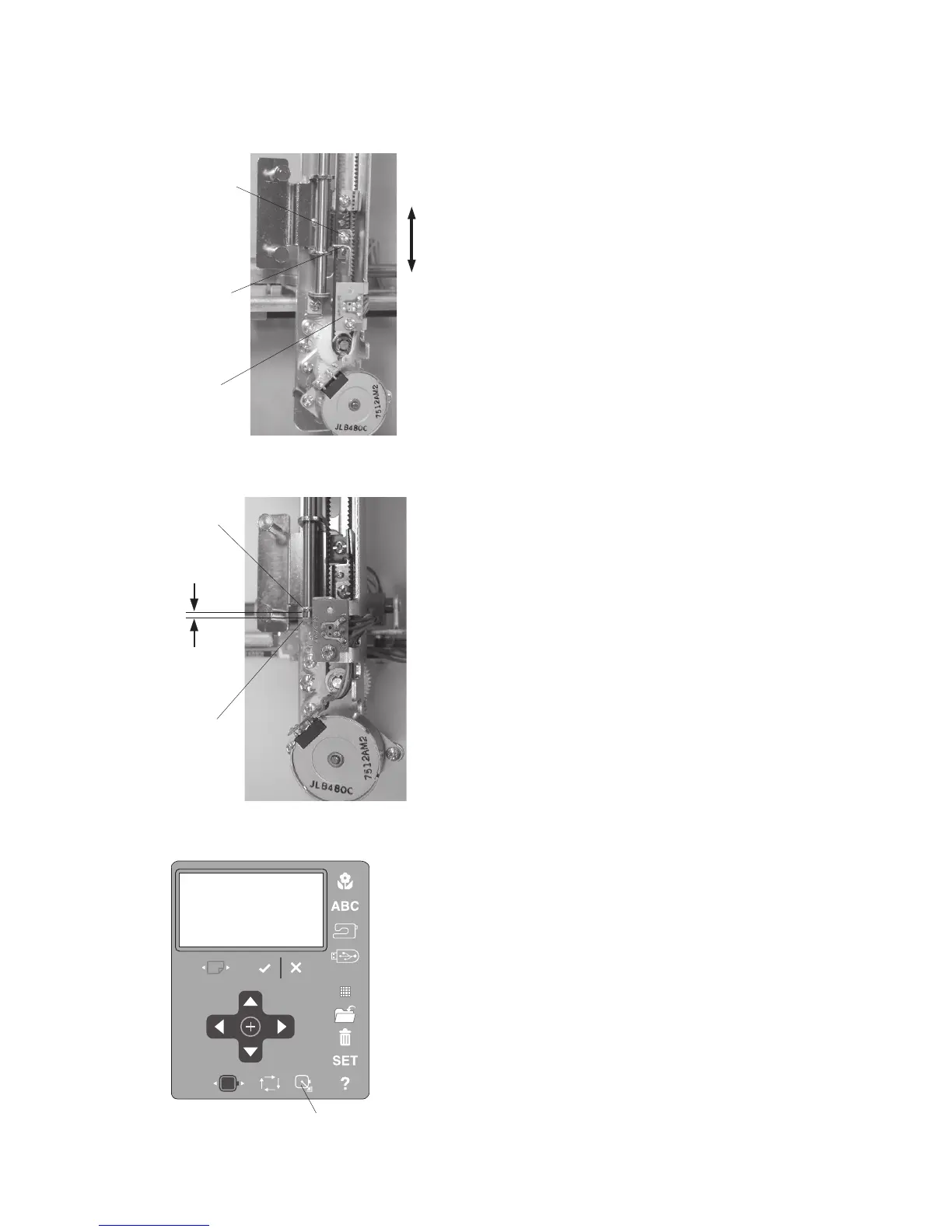

Adjusting the Y-sensor
1. Remove the face cover, bed cover and front
cover (do not disconnect the connectors).
2. Remove the carriage cover (refer to the previous
page).
3. Turn the power switch on to move the carriage to
the home position.
4. The gap between the stopper and hoop setting
plate should be 3 mm.
Loosen the setscrew and adjust the position of
the Y-shield plate.
5. Turn the power switch off and turn it on again to
check if the gap is 3 mm.
6. Tighten the setscrew and turn the power switch
off. Attach the carriage cover, front cover, bed
cover and face cover.
Stopper
2.5-3.5 mm
Setscrew
Y-shield plate
Hop setting plate
B
A
Y-sensor
Home position key
