Adjusting the Needle Drop Position
1. Lower the needle to the lowest position by turning
the hand wheel.
2. Remove the face cover.
3. Loosen the 2 setscrews (A).
4. Move the needle bar supporter back or forth to
adjust the position of the needle.
5. Loosen the 2 setscrews (B).
6. Move the needle drop adjusting plate laterally to
adjust the position of the needle.
7. Tighten the setscrews.
8. Attach the face cover.
NOTE:
Check the hook timing and clearance between the
needle and hook. Adjust them if necessary.
The needle should be positioned at the center of the needle plate hole.

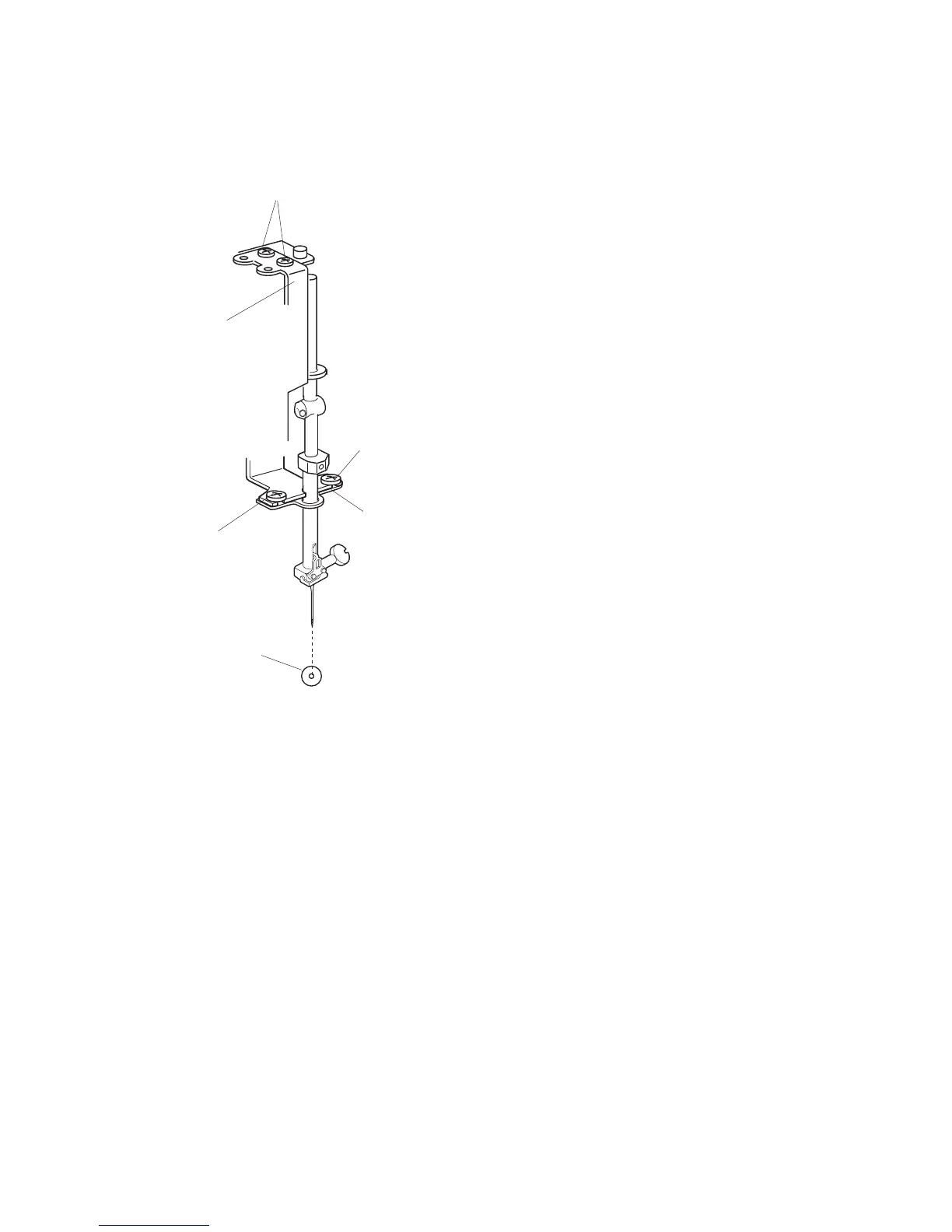

Setscrews (A)
Needle bar supporter
Needle plate hole
Setscrews (B)
Setscrews (B)
Needle drop ad-
justing plate
