14. Operational and pump faults
KFGL
14.3.1 Display faults 14.3 Malfunctions on KFGL pump unit
All fault notifications are displayed by the
LED
.
Key to LED display:
Red LED flashes = error detected
Red LED lights up = fault on a signal input,
no error detected on pump control unit
(error is outside pump)

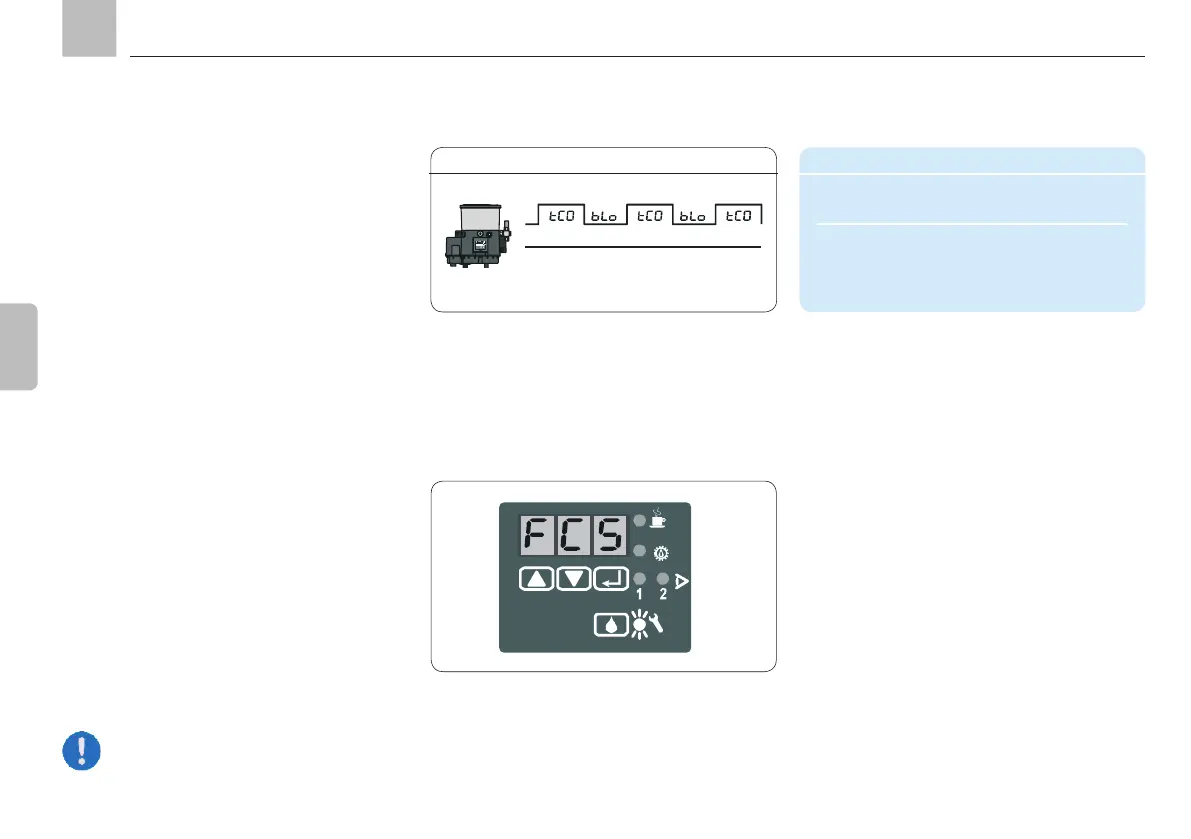

LED display, Fig. 26
The LC502 control unit is able to detect a
range of different system faults. The control
unit causes the red LED to flash when a fault is
detected. In some cases the control unit
switches off the affected lubrication line or all

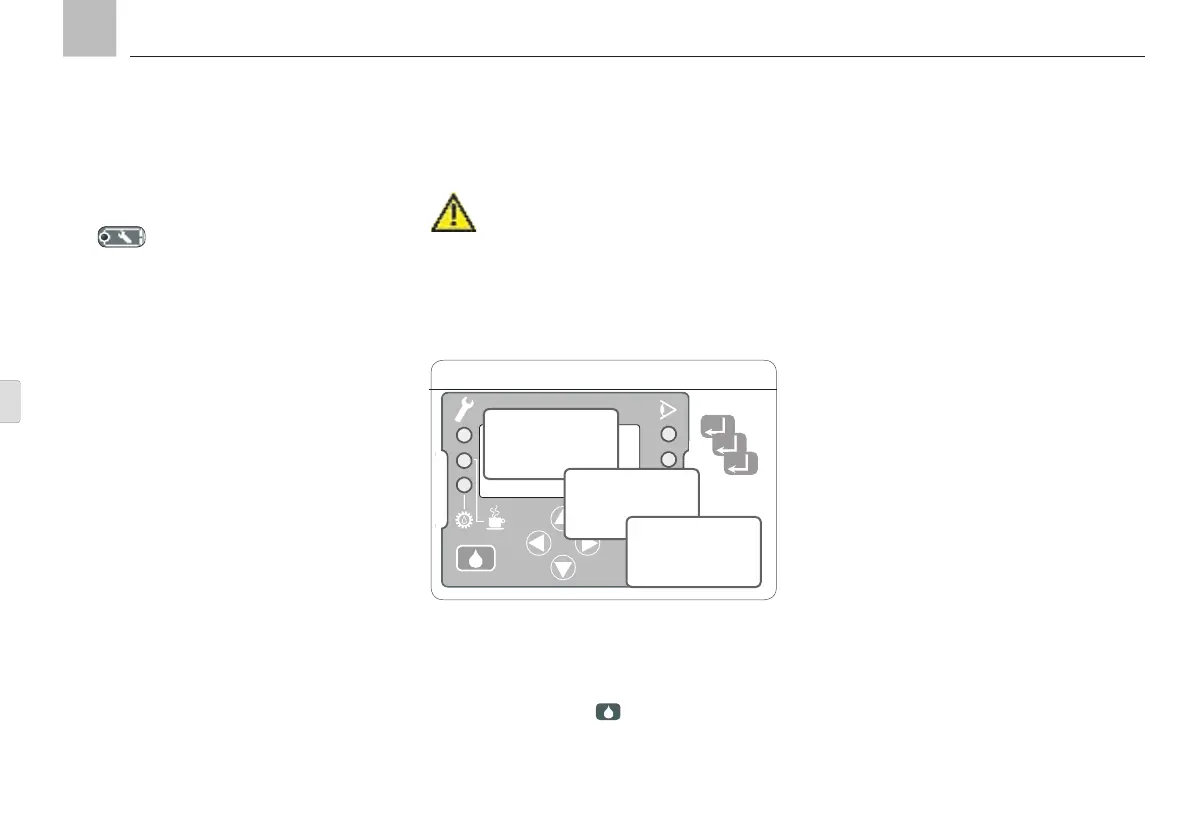

lubrication lines. An active fault is viewed as
follows: In the main menu, select device status
<Status> and then the fault menu. Select
<Fault> in the status menu. Upon confirma-
tion, the sources of all detected faults are dis-
played. A fault can be selected in the menu to
view its details.
All fault notifications can be acknowledged
and deleted using the
key; the lubrication
process is then restarted in all lines. In some
cases this may be able to be done with an
external pushbutton (DK).
Warning!
Determine and remedy the cause of
The user is liable for damages resulting
from operating the machine without
lubrication.
1
2
3
English
German
Info
Config
Status
Lub
Fault
IO State
14.3.3 Fault types
Detailed, separate operating instructions for
the IC502 control unit are supplied together
with these assembly instructions.
Chapter 10 of these operating instructions con-
tains the operational and pump faults for the
KFGL unit.
Document no. 951-180-004-EN
Pump unit in MonoFlex design
(single-line centralized lubrication system)
Document no. 951-180-005-EN
Pump unit in ProFlex design
(progressive centralized lubrication system)
Refer to the operating instructions to remedy
faults on a KFGL pump unit.
Page 100
EN
