11.1 KFGC series (CAN bus)
The display and control screen is protected
from water splashes and mechanical dam-
age by a transparent plastic cover. The cover
must be removed to operate the unit and then
remounted afterwards.
11. KFGC control unit
11. KFGC control unit

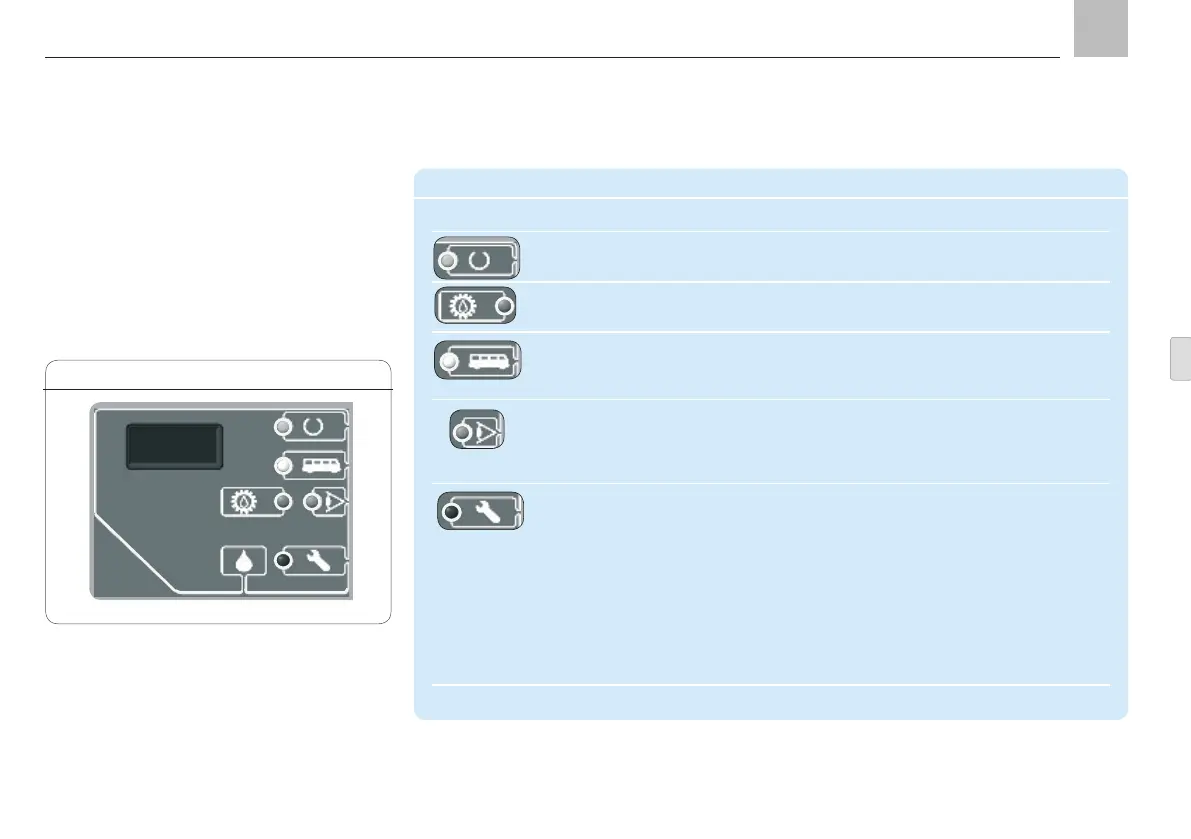

Display KFGL, Fig. 22
KFGC
Display and control elements of the KFGC control screen
Symbol LED color Description Function
Green POWER LED Lights up when operating voltage pres-
ent.
Blue Pump LED Lights up when pump is running.
White BUS LED Lights up when communication with
the CAN network has been successfully established.
Yellow CS/MC LED Lights up briefly when the control unit detects a signal
edge at an input from a piston detector (CS), pressure
switch (PS) or from the machine contact (MC).
Red FAULT LED LED lights up: Indicates a fault that does not
immediately influence the lubrication
program (e.g., break in valve cable).
The lubrication program continues
despite the fault notification.
LED flashes: LED lights up:Indicates a fault that
influences the lubrication program
(e.g., break in piston detector cable).
The lubrication program is aborted.
