4.8 KFGL power supply and connections
With integrated LC502 control unit
level switch of one of the following types for
Order code 1 (formerly W1 control) for
greases of NLGI≥ 2
Order code 2 (formerly W1G control) with
signal smoothing, for greases of NLGI ≥ 2
internally to the pump control system.
The standard connections are presented
below.
4.8.1 KFGL power supply
2
4
5
3
1
6
7
Connector pin assignment
PIN Color code Conductor coloring
1 BN Brown
2 RD-BK Red-Black
3 BU Blue
4 PK Pink
5 BK Black
6 BK Black
7 VT-GN Violet-green
Power supplied through a
7-pin circular connector
Accessories
Description Order No.
Wiring harness, in corrugated pipe,
with socket-outlet on pump side
8 m length 997-000-760
12 m length 997-000-630
16 m length 997-000-650
KFGL

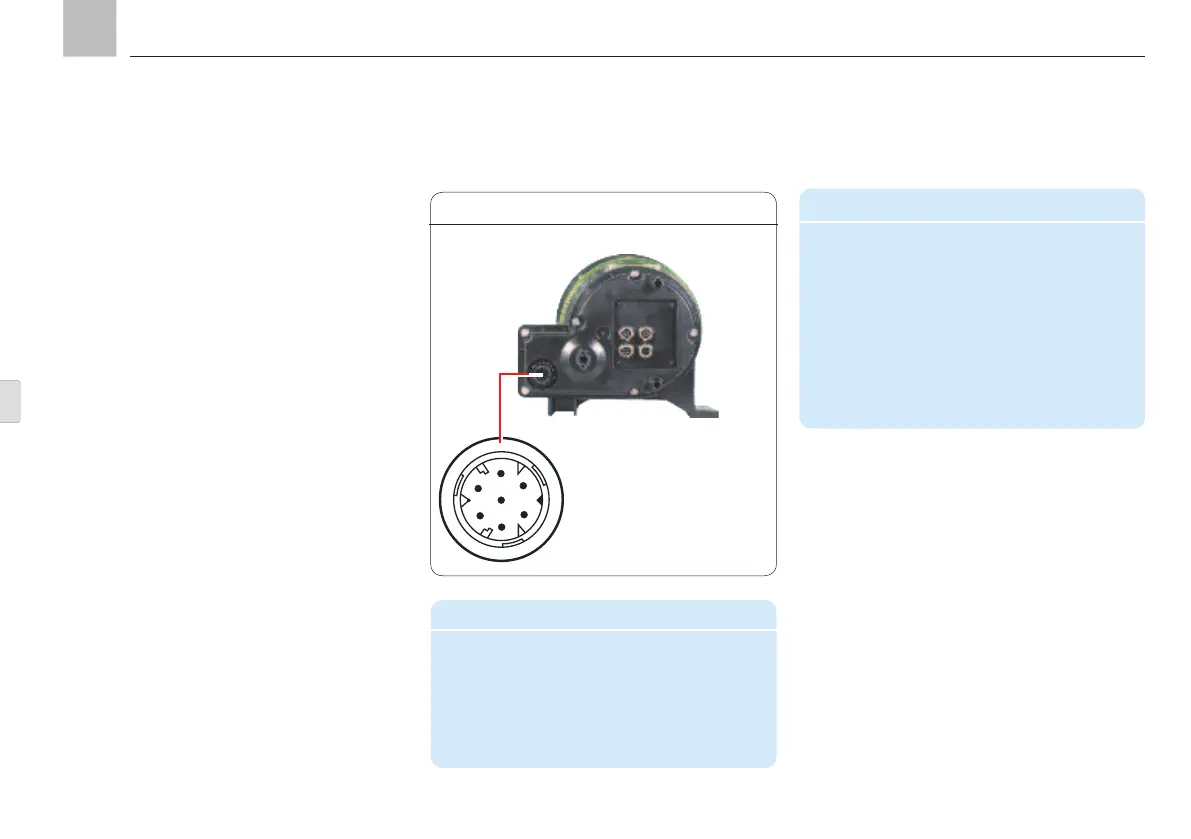

KFGL power supply, Fig. 22
Page 34
EN
Assembly instructions
