SKF KFGL - KFGL Monoflex for Single-Line Lubrication Systems

4.8.3 KFGL MonoFlex for single-line lubrication systems
KFGL
4
3
1
5
6
2
7
I n 3
P o w e r
F ault
Out 2
In 2
Out 1
In 1

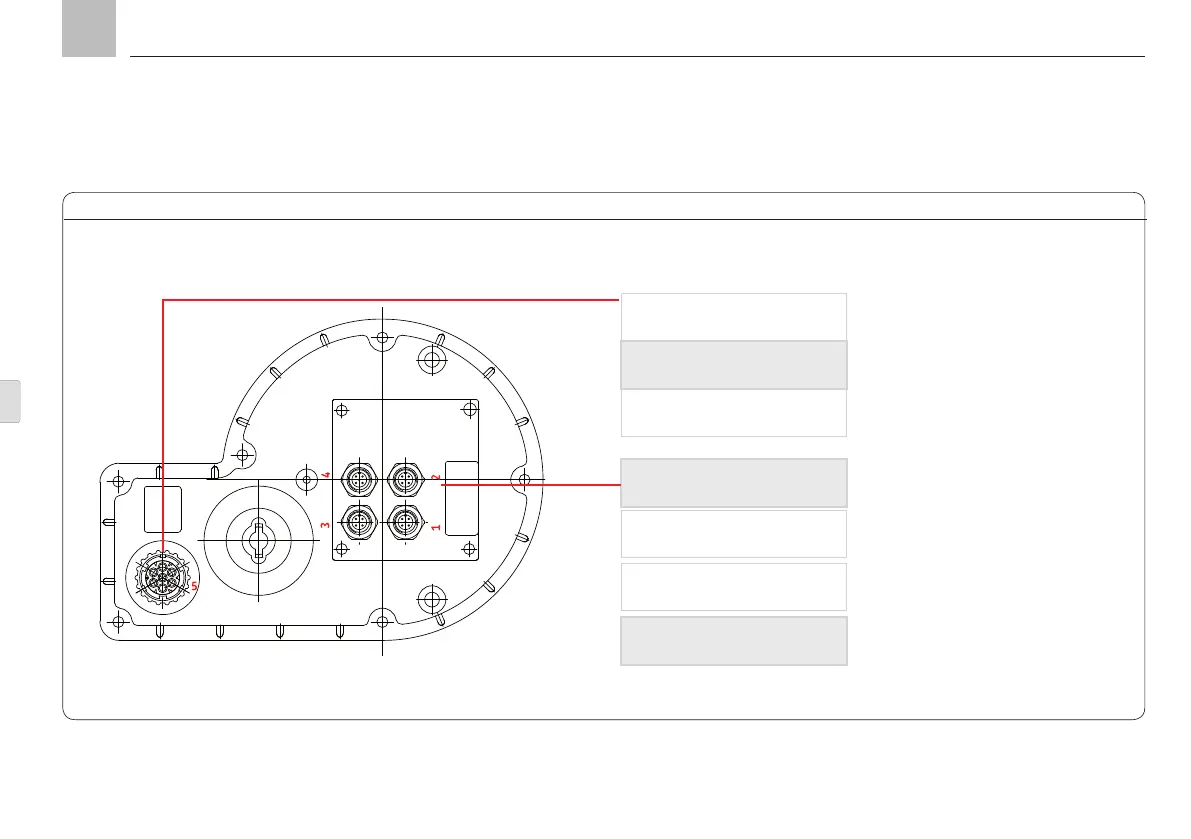

KFGL MonoFlex, Fig. 24
Output 1 (Out 1) 1
Pin 3: Valve (-)
Pin 4: Valve (+)
Output 2 (Out 2) 2
Pin 3: not programmed (-)
Pin 4: not programmed (+)
Input 1 (In 1) 3
Pin 1: Pressure switch 1 (+)
Pin 4: Pressure switch 1 (-)
Input 2 (In 2) 4
Pin 1: not programmed (+)
Pin 4: not programmed (-)
Power supply
Pin 1: OV (-)
Pin 2: 12/24 VDC (+)
Error output (Fault)
Pin 3: Fault notification (-)
Pin 4: Fault notification (+)
Input 3 (In 3)
Pin 5: External DK (-)
Pin 6: External DK (+)
Page 36
EN
Assembly instructions
