SKF KFGL - KFGS Pump Units 54

6. Functional description in progressive systems
max
Progressive system with KFG pump unit
1 KFG unit 5 Lubrication lines
2 Fill level switch 6 Master feeder
3 Pump element with pressure regulating valve 7 Secondary feeder
4 Electrical pump connection 8 Lubrication points
6
5
4
8
5
3
5
1
7
7

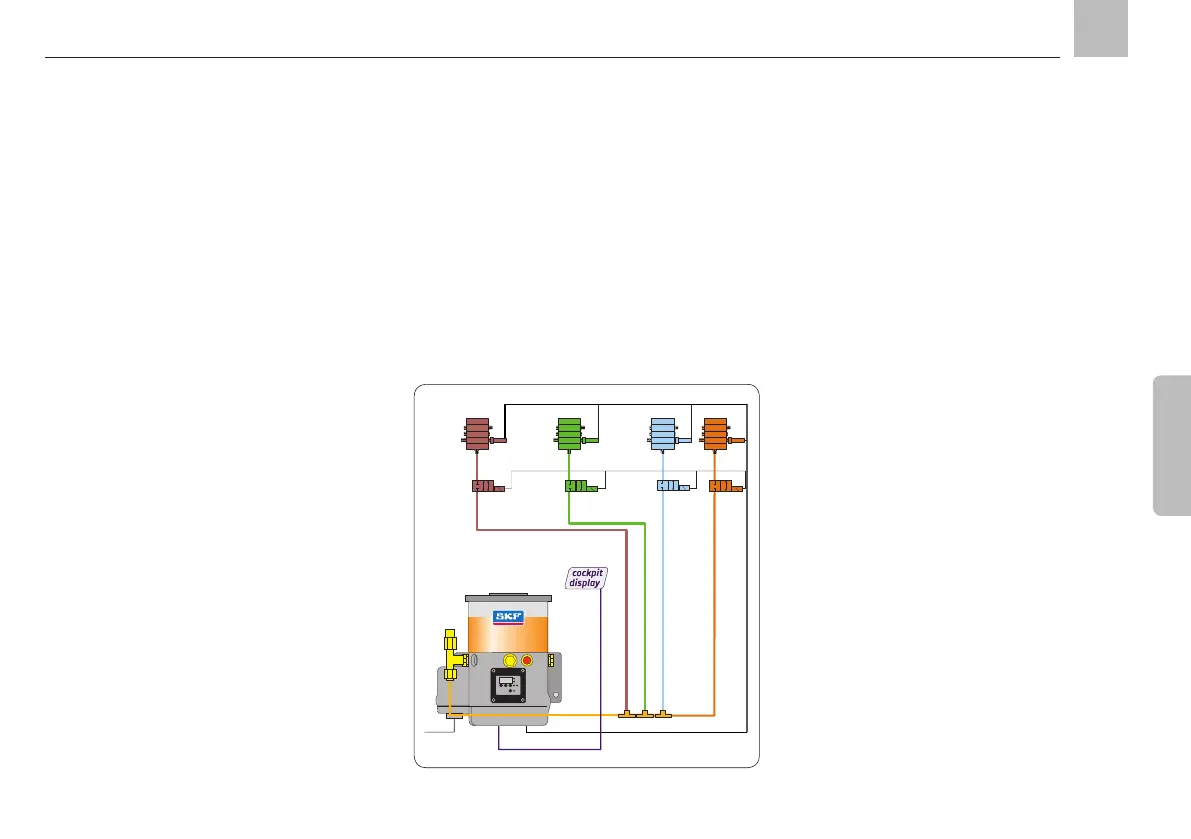

Example of progressive system with KFG pump unit, Fig. 3
2
KFG
6.1.2 Pressure regulating valve
A pressure regulating valve can be installed on
the pump element on progressive systems to
prevent excessive operating pressure in the
lubrication system. If the operating pressure
exceeds the cracking pressure of the pressure
regulating valve (see Technical Data,
Chapter4.3.4 in the assembly instructions), the
valve opens and the lubricant flows back (on
versions with a return line) into the lubricant
reservoir.
P
A
P
M14 x1,5
R
R
A
Pressure regulating valve, Fig. 2
Page 57
